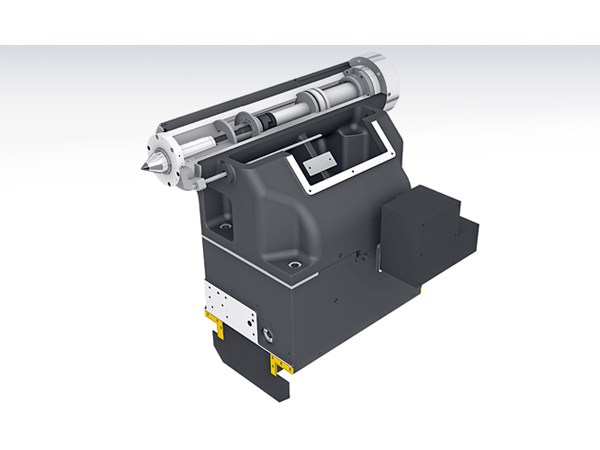

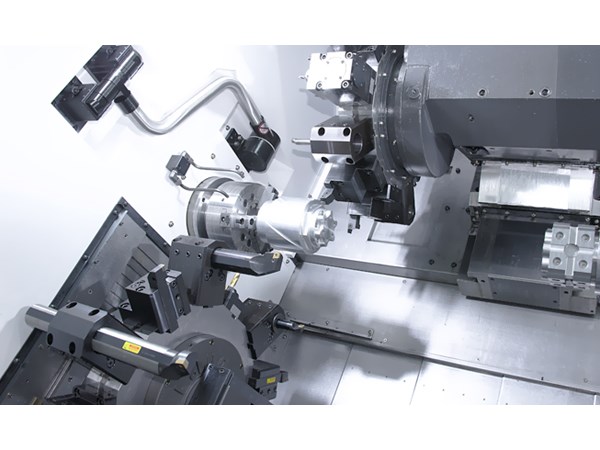

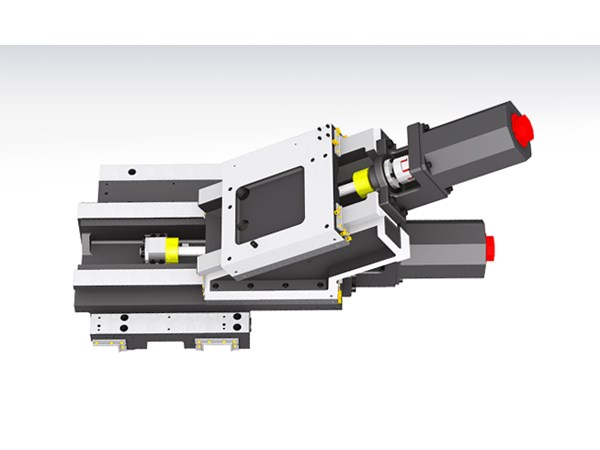

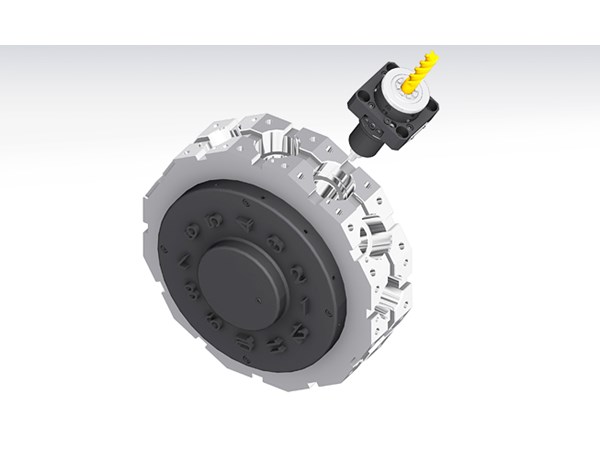

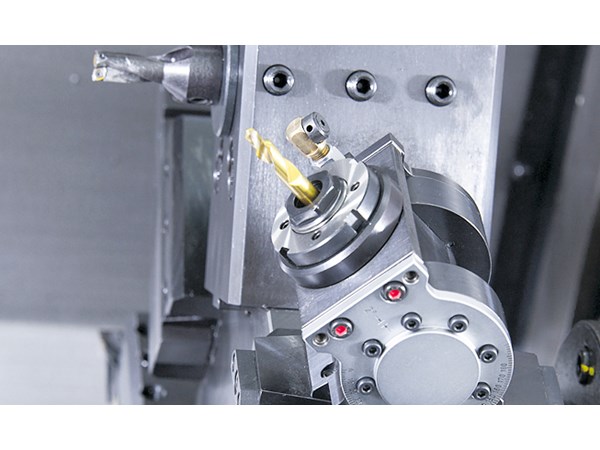

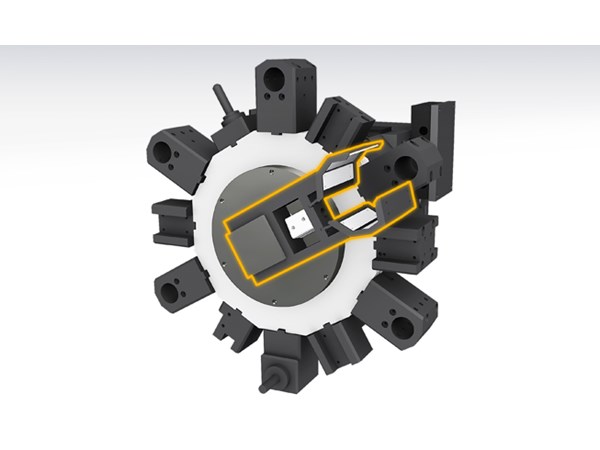

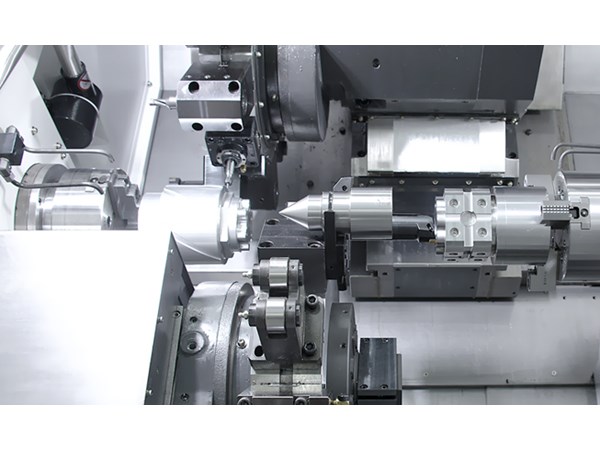

Hyundai Wia LM1600TTS Turning Center

Homepage / Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Hyundai Wia LM1600TTS Turning Center

Max Turning Diameter — 230 mm

Max Turning Length — 705 mm

Chuck Size — Main 6″ Sub 6″

Spindle rpm — 6,000 rpm

Bar Capacity — Ø51 mm

Max. Swing — Ø290 mm

Description	Unit	LM1600TTS	LM1600TTMS	LM1600TTSY
Max Turning Dia	mm	230	230	230
Max Turning Length	mm	705	705	705
Chuck Size	inch	Main 6″ Sub 6″	Main 6″ Sub 6″	Main 6″ Sub 6″
Chuck Size	inch	Main 6″ Sub 6″	Main 6″ Sub 6″	Main 6″ Sub 6″
Driving Method	-	Built in	Built in	Built in
Spindle RPM	r/min	6,000	6,000	6,000
Spindle Output	kW	15/11	15/11	15/11
Spindle Torque	N.m	208/140	208/140	208/140
Travel(X1/X2/Z1/Z2/ZB)	mm	165/195/700/720/700	165/195/700/720/700	-
Travel(X1/X2/Z1/Z2/ZB/Y)	mm	-	-	165/195/700/720/700/100
Rapid Travel(X1/X2/Z1/Z2/ZB)	m/min	20/20/40/40/40	20/20/40/40/40	-
Rapid Travel(X1/X2/Z1/Z2/ZB/Y)	m/min	-	-	20/20/40/40/40/7.5
Slide Type	-	LM	LM	LM
No. of Tools	EA	2 x 12	2 x 12	2 x 12
Tool Size	mm	20/32	20/32	20/32
Milling Tool Speed	r/min	-	5,000	5,000
CNC	-	F31i	F31i	F31i
