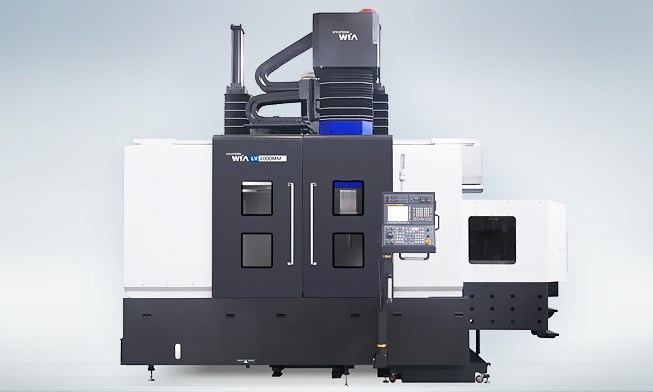

Hyundai Wia LV2000MM Vertical Turning Center

Homepage / Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Hyundai Wia LV2000MM Vertical Turning Center

Max Turning Diameter — 2000 mm

Max Turning Length — 1700 mm

Chuck Size — 63″

Spindle rpm — 258 rpm

Max. Swing — Ø2040 mm

Description	Unit	LV2000MM
Max Turning Dia	mm	2,000
Max Turning Length	mm	1,700
Chuck Size	inch	63
Driving Method	-	GEAR
Spindle RPM	r/min	258
Spindle Output	kW	37/30
Spindle Torque	N.m	22,096/17,916
Travel(X/Z)	mm	-250 ~ +1,180/915
Rapid Travel(X/Z)	m/min	12/12
Slide Type	-	BOX
No. of Tools	EA	18
Tool Size	mm	32/25
Milling Tool Speed	r/min	2,400
