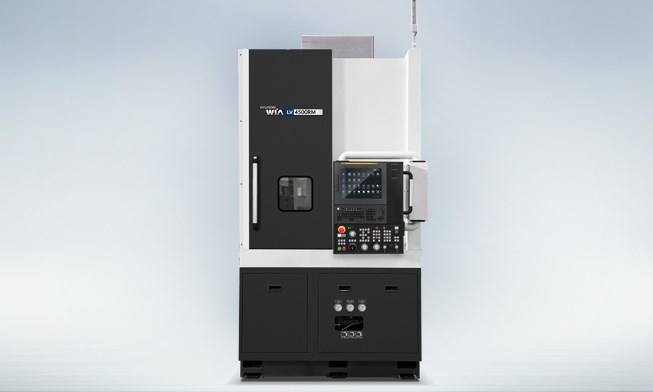

Hyundai Wia LV4500RM/LM Vertical Turning Center

Homepage / Hyundai Wia LV4500RM/LM Vertical Turning Center

Hyundai Wia LV4500RM/LM Vertical Turning Center

Hyundai Wia LV4500RM/LM Vertical Turning Center

Max Turning Diameter — 495 mm

Max Turning Length — 465 mm

Chuck Size — 12″

Spindle rpm — 3000 rpm

Max. Swing — Ø620 mm

Description	Unit	LV4500R/L	LV4500RM/LM
Max Turning Dia	mm	495	495
Max Turning Length	mm	465	465
Chuck Size	inch	12″	12″
Driving Method	-	Belt	Belt
Spindle RPM	r/min	3,000	3,000
Spindle Output	kW	26/18.5	26/18.5
Spindle Torque	N.m	863/614	863/614
Travel(X/Z)	mm	320/495	320/495
Rapid Travel(X/Z)	m/min	24/24	24/24
Slide Type	-	Roller	Roller
No. of Tools	EA	12	12
Tool Size	mm	25/50	25/50
Milling Tool Speed	r/min	-	5,000
