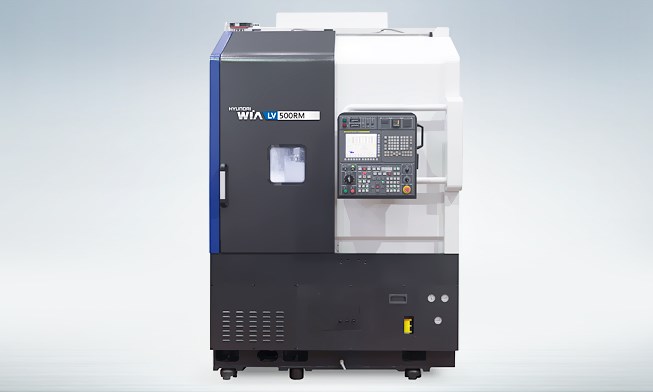

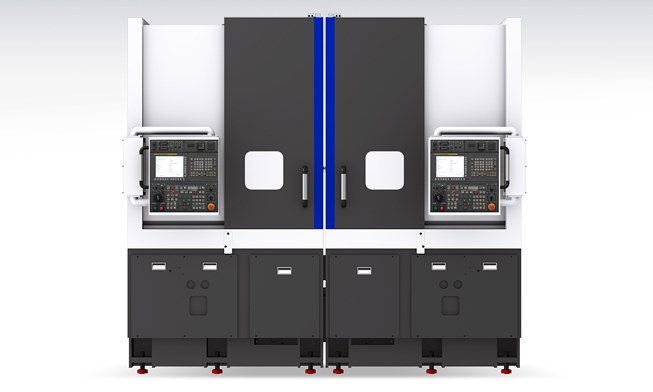

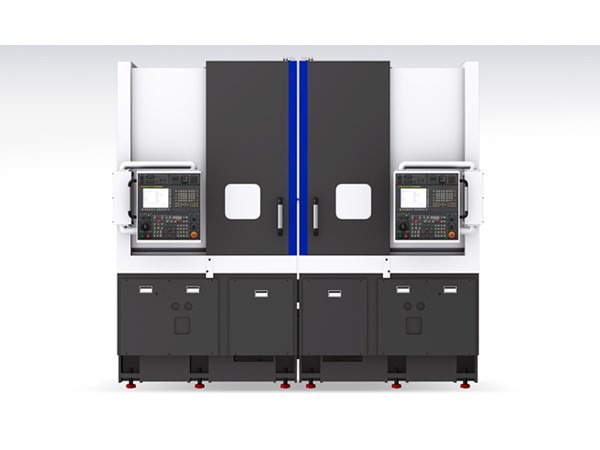

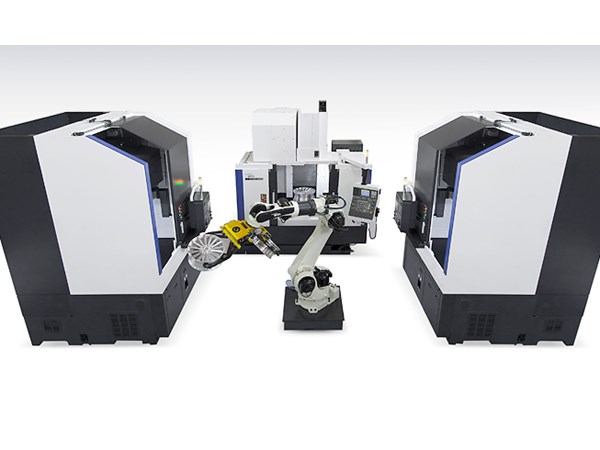

Hyundai Wia LV500RM/LM Vertical Turning Center

Homepage / Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Hyundai Wia LV500RM/LM Vertical Turning Center

Max Turning Diameter — 550 mm

Max Turning Length — 600 mm

Chuck Size — 15″

Spindle rpm — 2000 rpm

Max. Swing — Ø760 mm

Description	Unit	LV500R/L	LV500RM/LM
Max Turning Dia	mm	550	550
Max Turning Length	mm	600	600
Chuck Size	inch	15″	15″
Driving Method	-	Belt	Belt

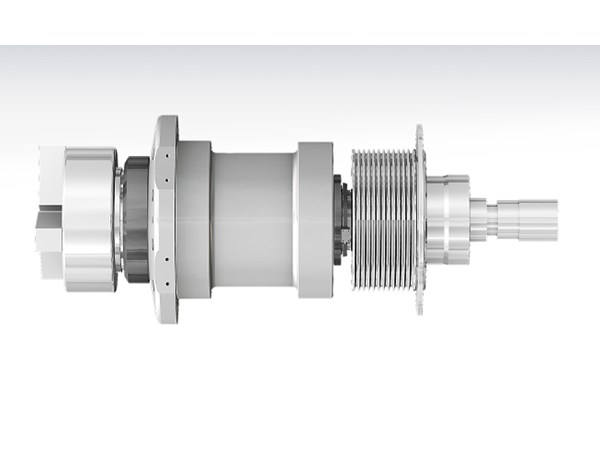

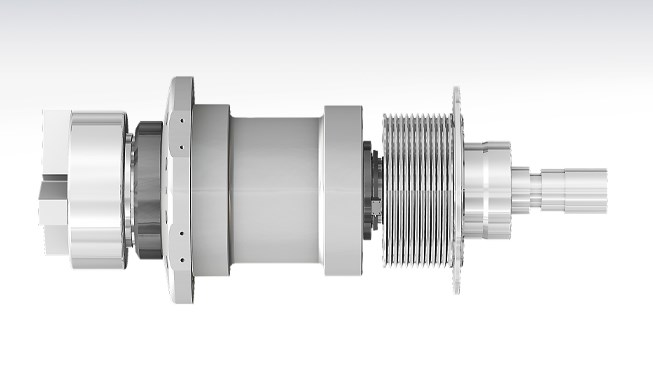

Spindle RPM	r/min	2,000	2,000
Spindle Output	kW	22/18.5	22/18.5
Spindle Torque	N.m	824/693	824/693
Travel(X/Z)	mm	325/625	325/625
Rapid Travel(X/Z)	m/min	20/18	20/18
Slide Type	-	LM	LM

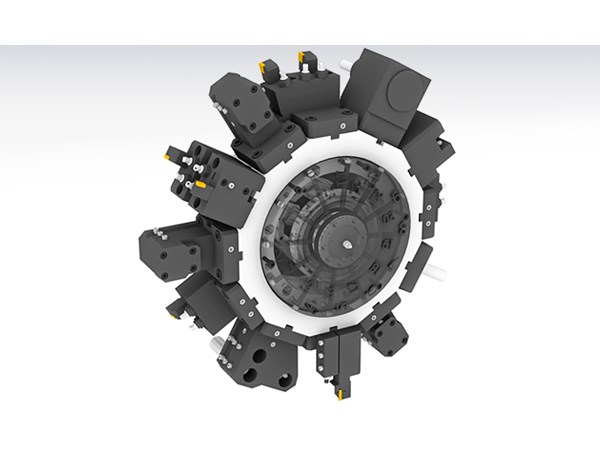

No. of Tools	EA	8[12]	12
Tool Size	mm	32/50	32/50

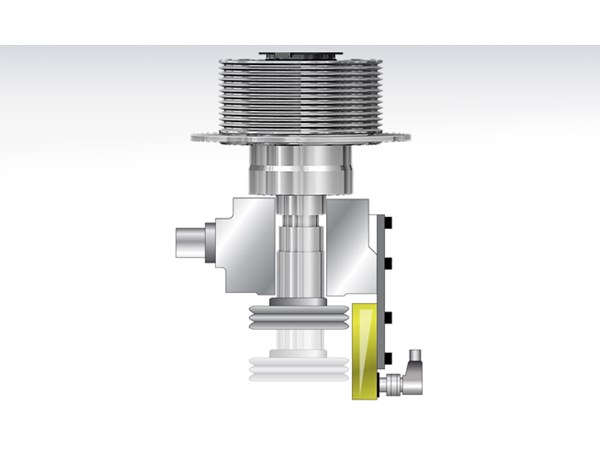

Milling Tool Speed	r/min	-	3,000
