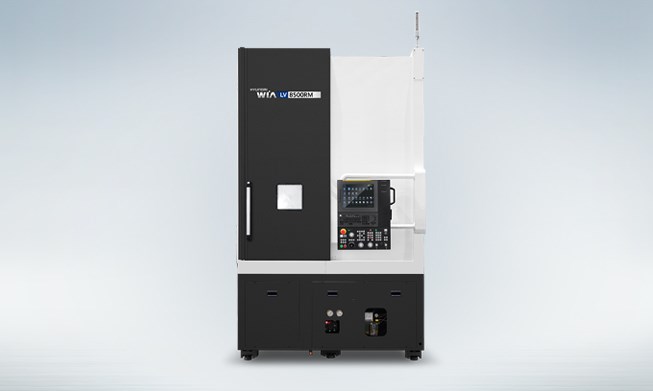

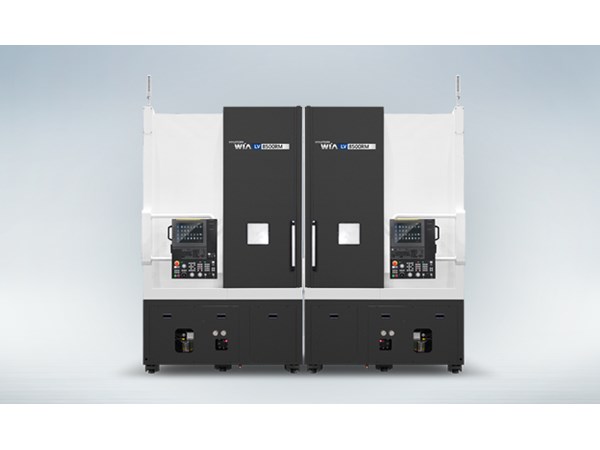

Hyundai Wia LV8500R/L Vertical Turning Center

Homepage / Hyundai Wia LV8500R/L Vertical Turning Center

Hyundai Wia LV8500R/L Vertical Turning Center

Hyundai Wia LV8500R/L Vertical Turning Center

Hyundai Wia LV8500R/L Vertical Turning Center

Hyundai Wia LV8500R/L Vertical Turning Center

Hyundai Wia LV8500R/L Vertical Turning Center

Hyundai Wia LV8500R/L Vertical Turning Center

Max Turning Diameter — 850 mm

Max Turning Length — 800 mm

Chuck Size — 18″

Spindle rpm — 2000 rpm

Max. Swing — Ø890 mm

Description	Unit	LV8500R/L	LV8500RM/LM
Max Turning Dia	mm	850	850
Max Turning Length	mm	800	800
Chuck Size	inch	18″	18″
Driving Method	-	Belt	Belt
Spindle RPM	r/min	2,000	2,000
Spindle Output	kW	37/22	37/22
Spindle Torque	N.m	1,660/986	1,660/986
Travel(X/Z)	mm	465/800	465/800
Rapid Travel(X/Z)	m/min	20/20	20/20
Slide Type	-	BOX	BOX
No. of Tools	EA	12	12
Tool Size	mm	32/63	32/63
Milling Tool Speed	r/min	-	4,000
