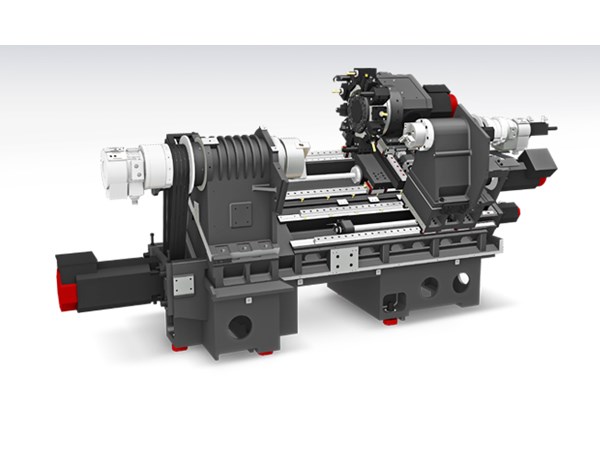

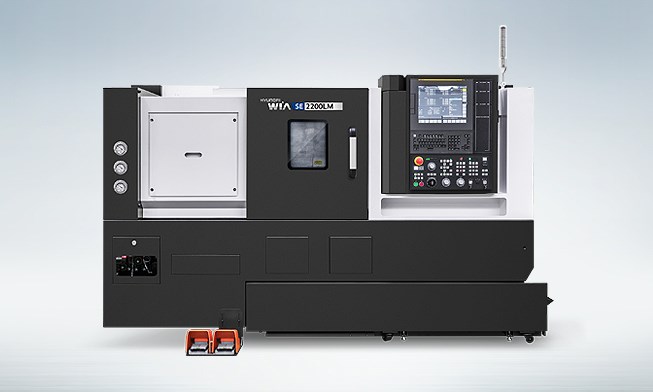

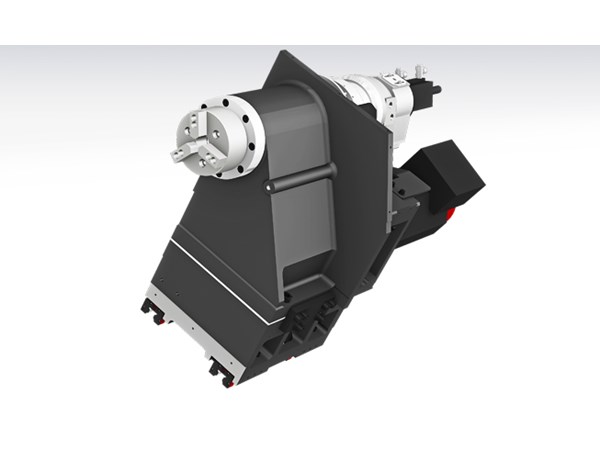

Hyundai Wia SE2200L Turning Center

Homepage / Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Hyundai Wia SE2200L Turning Center

Max Turning Diameter — 350 mm

Max Turning Length — 558 mm

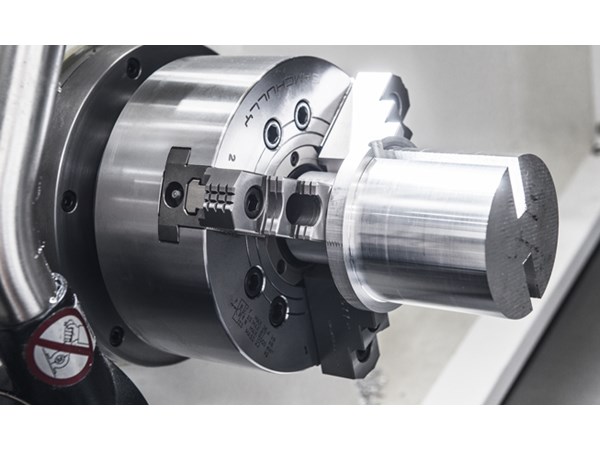

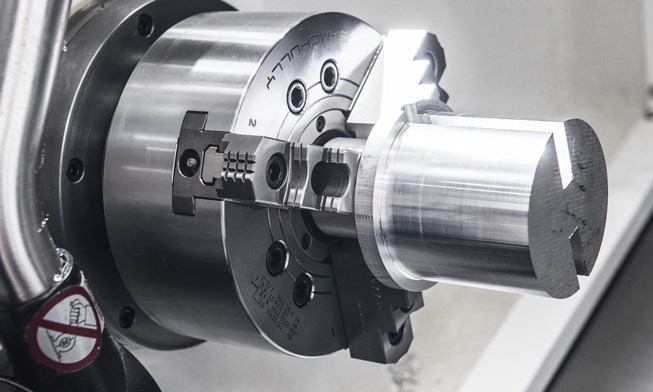

Chuck Size — 8″

Spindle rpm — 4,500 rpm

Bar Capacity — Ø65 mm

Max. Swing — Ø600 mm

Description	Unit	SE2200	SE2200L	SE2200M	SE2200LM
Max Turning Dia	mm	350	350	300	300
Max Turning Length	mm	307	558	288	560
Chuck Size	inch	8″	8″	8″	8″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	4,500	4,500	4,500	4,500
Spindle Output	kW	15/11	15/11	15/11	15/11
Spindle Torque	N.m	167/92	167/92	167/92	167/92
Travel(X/Z)	mm	210/340	210/560	210/340	210/560
Rapid Travel(X/Z)	m/min	30/36	30/36	30/36	30/36
Slide Type	-	LM	LM	LM	LM

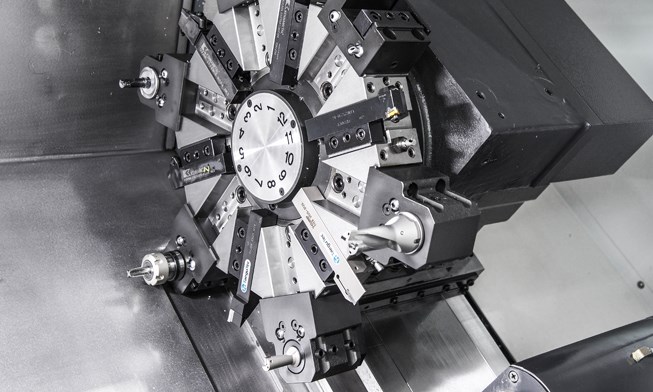

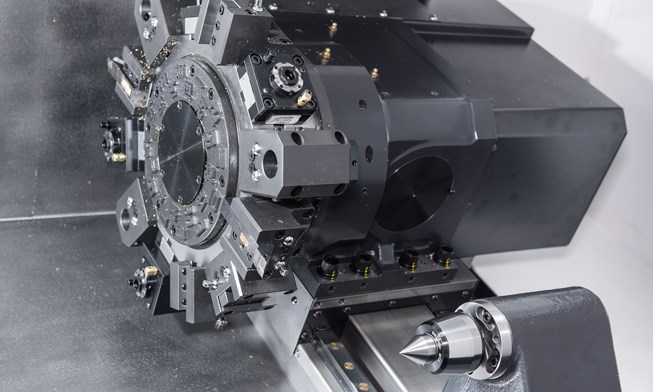

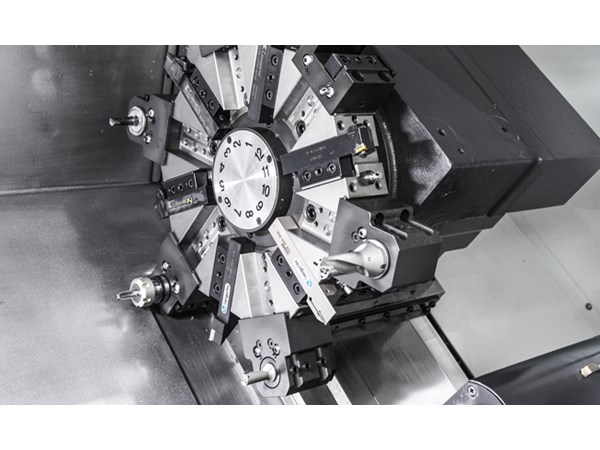

No. of Tools	EA	12	12	12	12
Tool Size	mm	25/40	25/40	20/32	20/32
Milling Tool Speed	r/min	-	-	6,000	6,000
