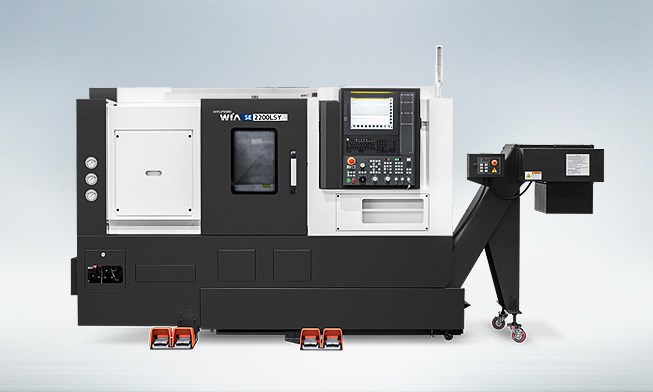

Hyundai Wia SE2200LYA Turning Center

Homepage / Hyundai Wia SE2200LYA Turning Center

Hyundai Wia SE2200LYA Turning Center

Hyundai Wia SE2200LYA Turning Center

Hyundai Wia SE2200LYA Turning Center

Hyundai Wia SE2200LYA Turning Center

Hyundai Wia SE2200LYA Turning Center

Max Turning Diameter — 300 mm

Max Turning Length — 529 mm

Chuck Size — 6″

Spindle rpm — 6,000 rpm

Bar Capacity — Ø51 mm

Max. Swing — Ø600 mm

Description	Unit	SE2200YA	SE2200LYA	SE2200LSYA
Max Turning Dia	mm	300	300	300
Max Turning Length	mm	309	529	529
Chuck Size	inch	6″	6″	Main 6″ Sub 5″
Chuck Size	inch	6″	6″	Main 6″ Sub 5″
Driving Method	-	Belt	Belt	Belt
Spindle RPM	r/min	6,000	6,000	6,000
Spindle Output	kW	15/11	15/11	15/11
Spindle Torque	N.m	127/70	127/70	127/70
Travel(X/Y/Z/ZB)	mm	210/110/340/-	210/110/560/-	210/110/560/599.3
Rapid Travel(X/Y/Z/ZB)	m/min	30/10/36/-	30/10/36/-	30/10/36/15
Slide Type	-	LM	LM	LM
No. of Tools	EA	12	12	12
Tool Size	mm	20/32	20/32	20/32
Milling Tool Speed	r/min	6,000	6,000	6,000
CNC	-	F0i PLUS	F0i PLUS	F0i PLUS
