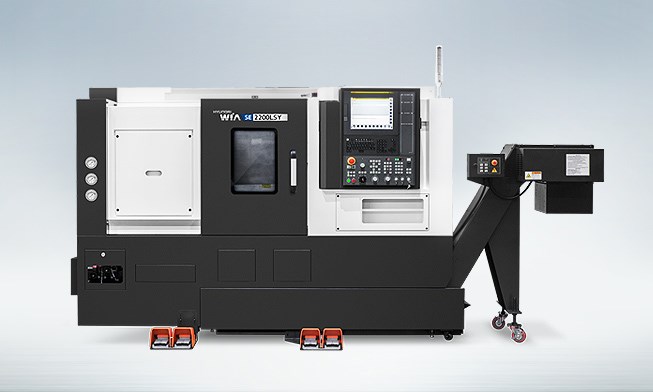

Hyundai Wia SE2200Y Turning Center

Homepage / Hyundai Wia SE2200Y Turning Center

Hyundai Wia SE2200Y Turning Center

Hyundai Wia SE2200Y Turning Center

Hyundai Wia SE2200Y Turning Center

Hyundai Wia SE2200Y Turning Center

Hyundai Wia SE2200Y Turning Center

Max Turning Diameter — 300 mm

Max Turning Length — 288 mm

Chuck Size — 8″

Spindle rpm — 4,500 rpm

Max. Swing — Ø600 mm

Description	Unit	SE2200Y	SE2200LY	SE2200LSY
Max Turning Dia	mm	300	300	300
Max Turning Length	mm	288	508	508
Chuck Size	inch	8″	8″	Main 8″ Sub 5″
Chuck Size	inch	8″	8″	Main 8″ Sub 5″
Driving Method	-	Belt	Belt	Belt
Spindle RPM	r/min	4,500	4,500	4,500
Spindle Output	kW	15/11	15/11	15/11
Spindle Torque	N.m	167/92	167/92	167/92
Travel(X/Y/Z/ZB)	mm	210/110/340/-	210/110/560/-	210/110/560/560
Rapid Travel(X/Y/Z/ZB)	m/min	30/10/36/-	30/10/36/-	30/10/36/15
Slide Type	-	LM	LM	LM
No. of Tools	EA	12	12	12
Tool Size	mm	20/32	20/32	20/32
Milling Tool Speed	r/min	6,000	6,000	6,000
