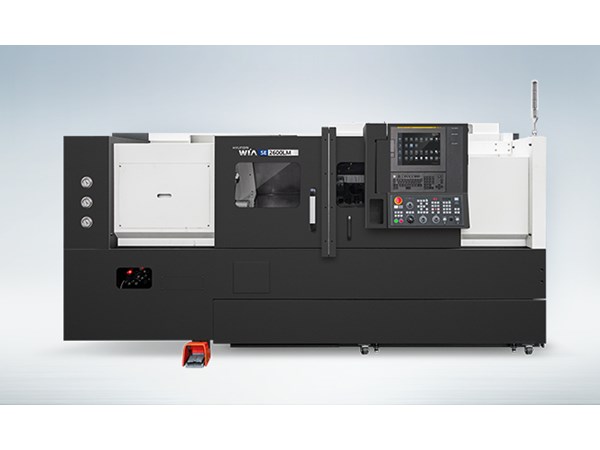

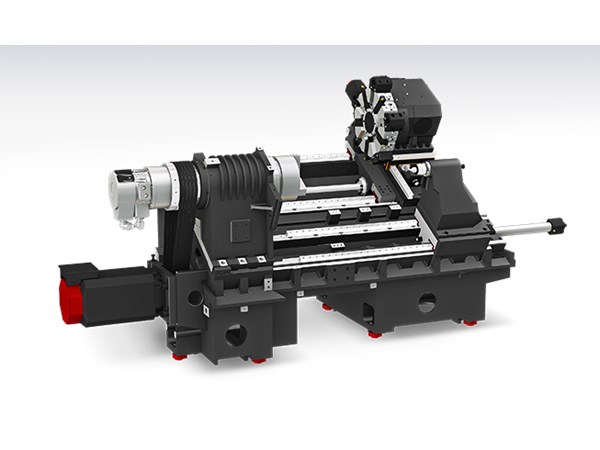

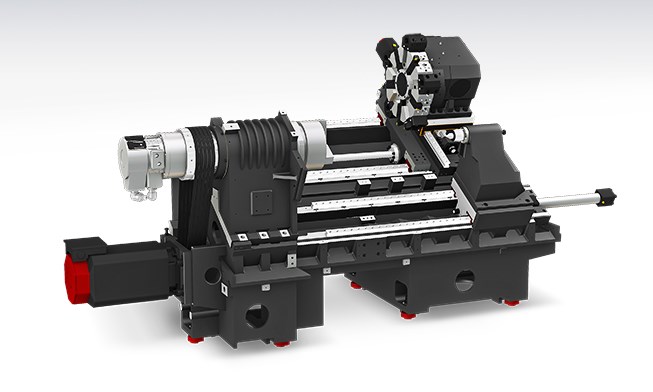

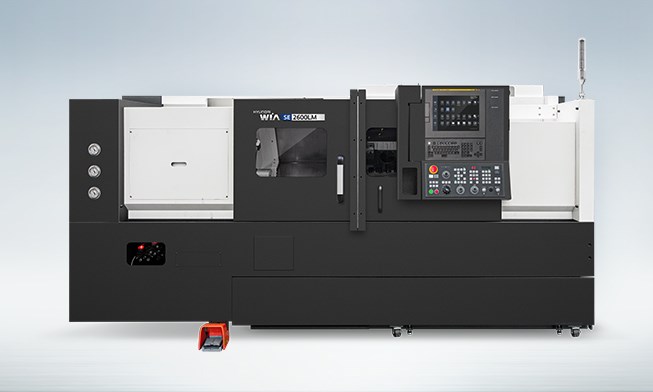

Hyundai Wia SE2600L Turning Center

Homepage / Hyundai Wia SE2600L Turning Center

Hyundai Wia SE2600L Turning Center

Hyundai Wia SE2600L Turning Center

Hyundai Wia SE2600L Turning Center

Hyundai Wia SE2600L Turning Center

Hyundai Wia SE2600L Turning Center

Hyundai Wia SE2600L Turning Center

Hyundai Wia SE2600L Turning Center

Max Turning Diameter — 460 mm

Max Turning Length — 1091 mm

Chuck Size — 10″

Spindle rpm — 3,500 rpm

Bar Capacity — Ø81 mm

Max. Swing — Ø600 mm

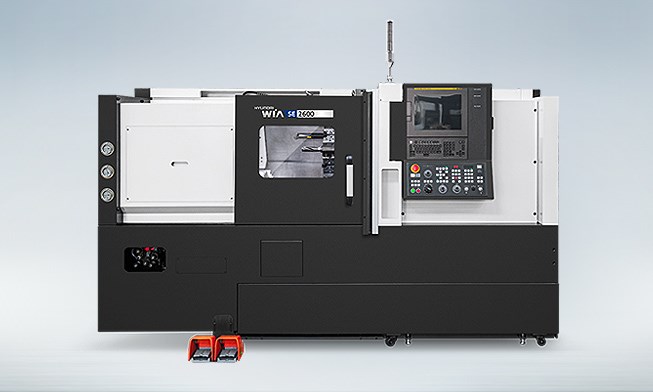

Description	Unit	SE2600	SE2600L	SE2600M	SE2600LM
Max Turning Dia	mm	460	460	380	380
Max Turning Length	mm	671	1,091	630	1,050
Chuck Size	inch	10″	10″	10″	10″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	3,500	3,500	3,500	3,500
Spindle Output	kW	18.5/15	18.5/15	18.5/15	18.5/15
Spindle Torque	N.m	470.9/286.4	470.9/286.4	470.9/286.4	470.9/286.4

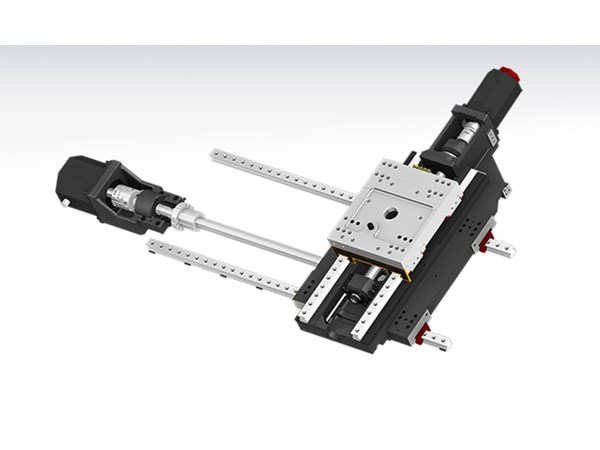

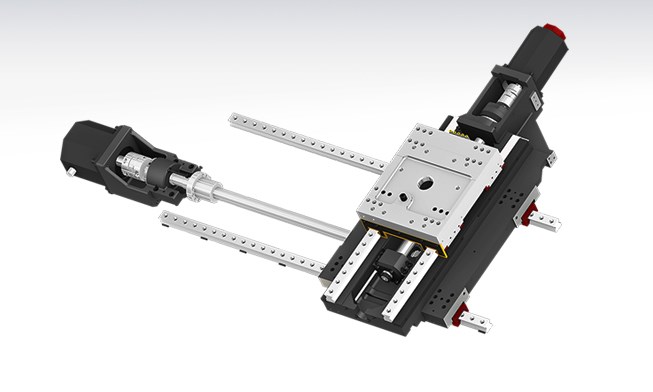

Travel(X/Z)	mm	265/680	265/1,100	255/680	255/1,100
Rapid Travel(X/Z)	m/min	30/30	30/30	30/30	30/30
Slide Type	-	LM	LM	LM	LM

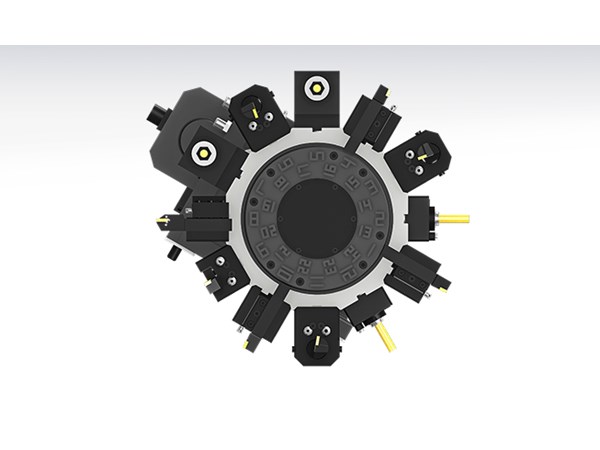

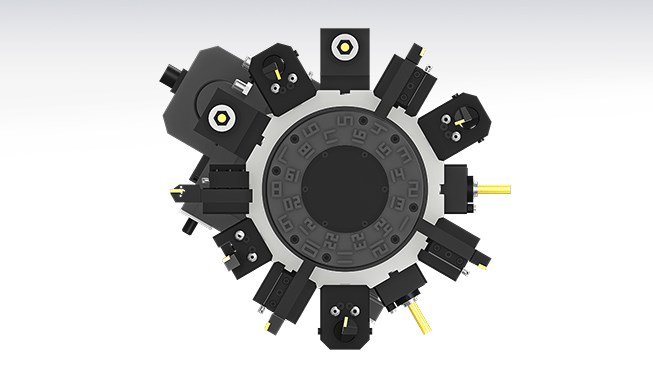

No. of Tools	EA	10	10	12	12
Tool Size	mm	25/50	25/50	25/40	25/40
Milling Tool Speed	r/min	-	-	6,000	6,000
