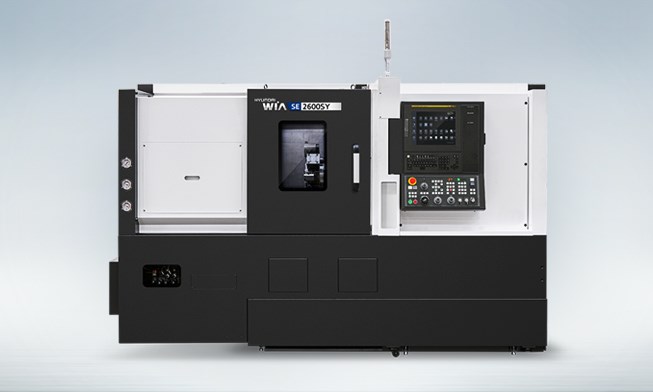

Hyundai Wia SE2600LY Turning Center

Homepage / Hyundai Wia SE2600LY Turning Center

Hyundai Wia SE2600LY Turning Center

Hyundai Wia SE2600LY Turning Center

Hyundai Wia SE2600LY Turning Center

Hyundai Wia SE2600LY Turning Center

Hyundai Wia SE2600LY Turning Center

Hyundai Wia SE2600LY Turning Center

Hyundai Wia SE2600LY Turning Center

Hyundai Wia SE2600LY Turning Center

Max Turning Diameter — 380 mm

Max Turning Length — 1073 mm

Chuck Size — 10″

Spindle rpm — 3,500 rpm

Bar Capacity — Ø81 mm

Max. Swing — Ø630 mm

Description	Unit	SE2600Y	SE2600LY	SE2600SY	SE2600LSY
Max Turning Dia	mm	380	380	380	380
Max Turning Length	mm	653	1,073	653	1,073
Chuck Size	inch	10″	10″	Main 10″ Sub 6″	Main 10″ Sub 6″
Chuck Size	inch	10″	10″	Main 10″ Sub 6″	Main 10″ Sub 6″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	3,500	3,500	3,500	3,500
Spindle Output	kW	18.5/15	18.5/15	18.5/15	18.5/15
Spindle Torque	N.m	470.9/286.4	470.9/286.4	470.9/286.4	470.9/286.4

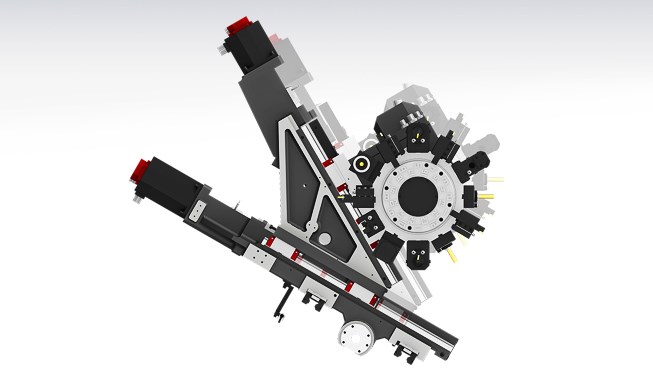

Travel(X/Y/Z/ZB)	mm	255/110/680/-	255/110/1,100/-	255/110/680/660	255/110/1,100/1,080
Rapid Travel(X/Y/Z/ZB)	m/min	30/10/30/-	30/10/30/-	30/10/30/15	30/10/30/15
Slide Type	-	LM	LM	LM	LM

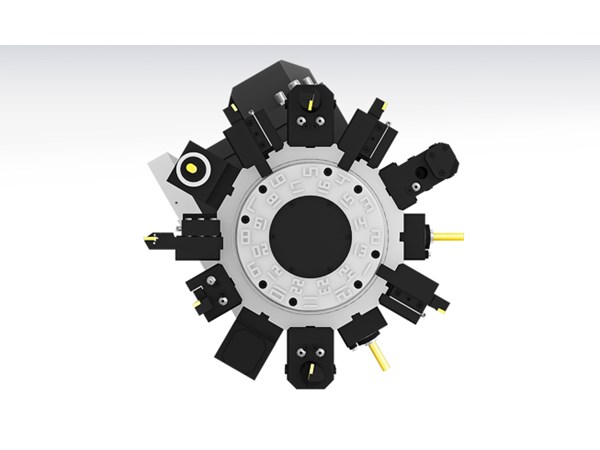

No. of Tools	EA	12	12	12	12
Tool Size	mm	25/40	25/40	25/40	25/40
Milling Tool Speed	r/min	6,000	6,000	6,000	6,000
