Hyundai Wia XF6300 Vertical Machining Center

Homepage / Hyundai Wia XF6300 Vertical Machining Center

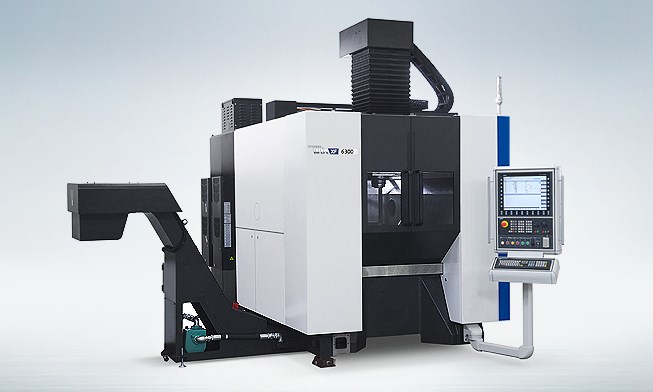

Hyundai Wia XF6300 Vertical Machining Center

Hyundai Wia XF6300 Vertical Machining Center

Hyundai Wia XF6300 Vertical Machining Center

Hyundai Wia XF6300 Vertical Machining Center

Hyundai Wia XF6300 Vertical Machining Center

Hyundai Wia XF6300 Vertical Machining Center

Table Size — 630×400 mm

Travel(X/Y/Z) — 650/600/500 mm

Spindle Taper — HSK-A63

Control Unit — Siemens Sinumerik One / Heidenhain TNC640

Description	Unit	XF6300
Table Size	mm	630×400
Max. Load Capacity	kg	600
Spindle Driving Method	-	Built in
Spindle Taper	-	HSK-A63
Spindle RPM	r/min	15,000
Spindle Power	kW	31/25
Spindle Torque	N.m	153/123
Travel(X/Y/Z)	mm	650/600/500
Rapid Feed Rate(X/Y/Z)	m/min	60/60/60
Slide Type	-	ROLLER

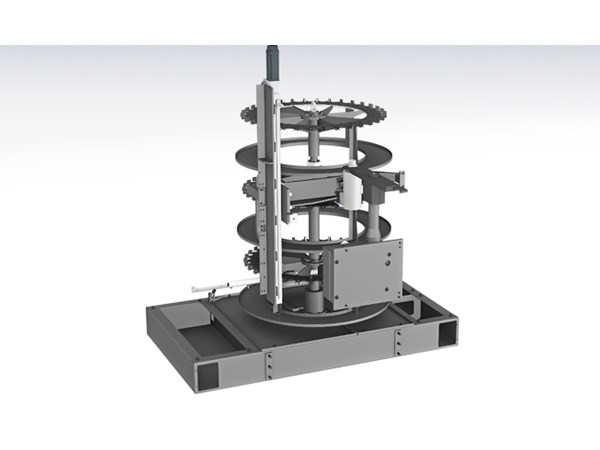

No. of Tools	EA	34
Tool Change Time (Chip To Chip)	sec	4.5
Tool Change Time (Chip To Chip)	sec	4.5
