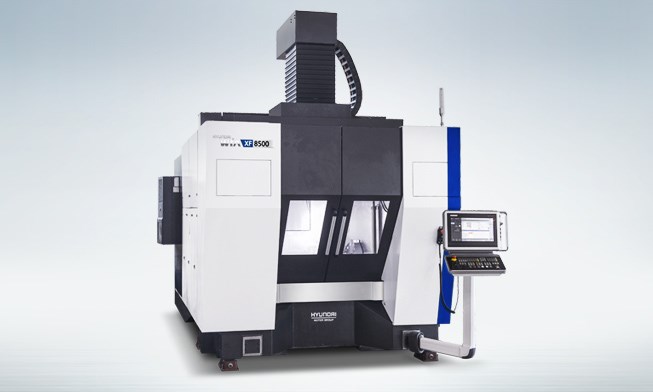

Hyundai Wia XF8500 Vertical Machining Center

Homepage / Hyundai Wia XF8500 Vertical Machining Center

Hyundai Wia XF8500 Vertical Machining Center

Hyundai Wia XF8500 Vertical Machining Center

Hyundai Wia XF8500 Vertical Machining Center

Hyundai Wia XF8500 Vertical Machining Center

Hyundai Wia XF8500 Vertical Machining Center

Hyundai Wia XF8500 Vertical Machining Center

Table Size — 850×400 mm

Travel(X/Y/Z) — 850/920/600 mm

Spindle Taper — HSK-A63

Control Unit — Siemens Sinumerik One / Heidenhain TNC640

Description	Unit	XF8500
Table Size	mm	850×400
Max. Load Capacity	kg	1,000
Spindle Driving Method	-	Built in
Spindle Taper	-	HSK-A63
Spindle RPM	r/min	15,000
Spindle Power	kW	31/25
Spindle Torque	N.m	153/123
Travel(X/Y/Z)	mm	850/920/600
Rapid Feed Rate(X/Y/Z)	m/min	45/45/45
Slide Type	-	ROLLER

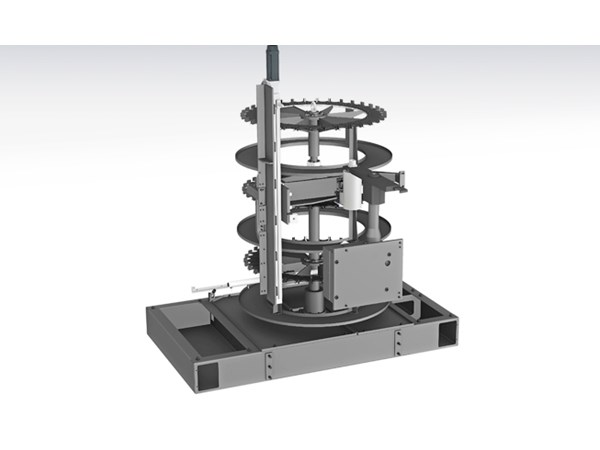

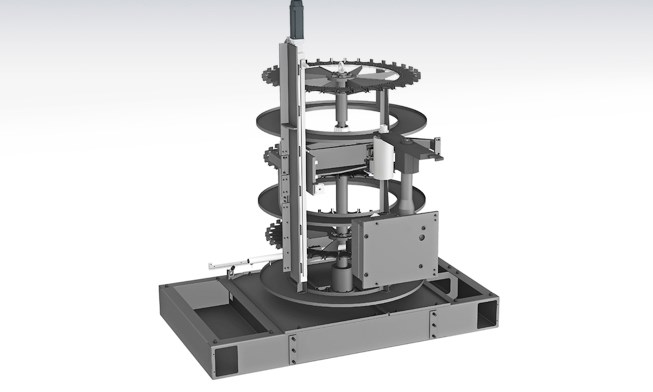

No. of Tools	EA	34
Tool Change Time (Chip To Chip)	sec	6.8
Tool Change Time (Chip To Chip)	sec	6.8
