Hyundai Wia XM3100 Turning Center

Homepage / Hyundai Wia XM3100 Turning Center

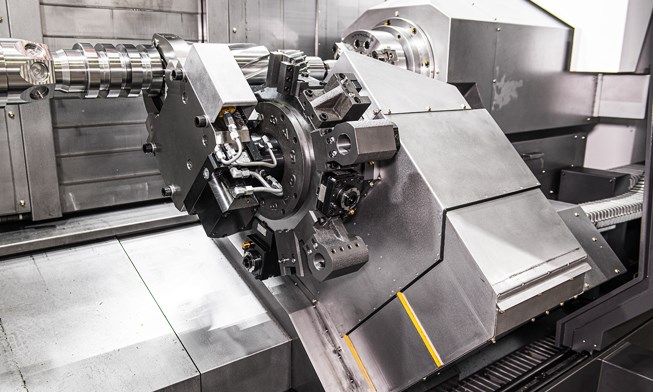

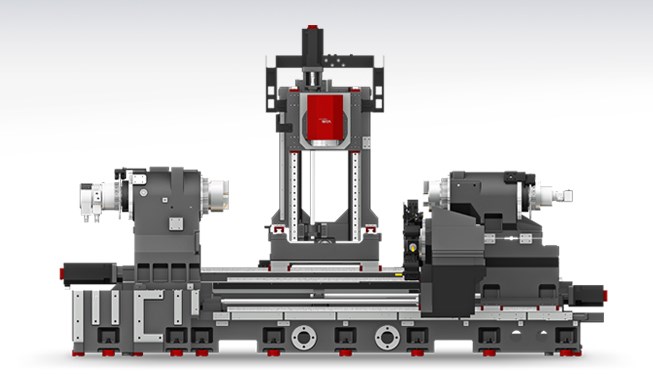

Hyundai Wia XM3100 Turning Center

Hyundai Wia XM3100 Turning Center

Hyundai Wia XM3100 Turning Center

Hyundai Wia XM3100 Turning Center

Hyundai Wia XM3100 Turning Center

Hyundai Wia XM3100 Turning Center

Hyundai Wia XM3100 Turning Center

Max Turning Diameter — 660 mm

Max Turning Length — 1540 mm

Chuck Size — Main 12″

Spindle rpm — 3,000 rpm

Max. Swing — Ø660 mm

Description	Unit	XM3100	XM3100S	XM3100ST
Max Turning Dia	mm	660	660	660
Max Turning Length	mm	1,540	1,540	1,540
Chuck Size	inch	Main 12″	Main 12″ Sub 10″	Main 12″ Sub 10″
Chuck Size	inch	Main 12″	Main 12″ Sub 10″	Main 12″ Sub 10″
Driving Method	-	Built in	Built in	Built in
Spindle RPM	r/min	3,000	3,000	3,000
Spindle Output	kW	37/25	37/25	37/25
Spindle Torque	N.m	1,262/1,003	1,262/1,003	1,262/1,003
Slide Type	-	LM	LM	LM
No. of Tools	EA	Mill head : 40T	Mill head : 40T	Mill head : 40T / Turret : 12T
Tool Size	mm	Mill head : D Ø130/ L450	Mill head : D Ø130/ L450	Mill head : D Ø130/ L450 / Turret : □25/Ø40
Milling Tool Speed	r/min	Mill head : 12,000	Mill head : 12,000	Mill head : 12,000 / Turret : 5,000
Travel(X1/Z1/Y/X2/Z2/A)	mm	695/1,585/300/-/-/1,540	695/1,585/300/-/-/1,540	695/1,585/300/235/1,540/1,540
Rapid Travel(X1/Z1/Y/X2/Z2/A)	m/min	48/48/36/-/-/30	48/48/36/-/-/30	48/48/36/24/36/30
