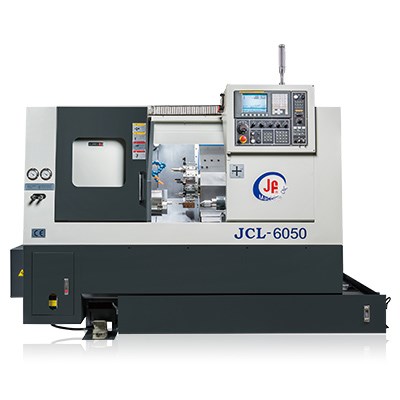

Jinn Fa JCL-4232/5232 Turning Center

Jinn Fa JCL-4232/5232 Turning Center

X Axis — 171 mm

Z Axis — 360 mm

Spindle Speed — 45 ~ 3500 rpm

Spindle Nose Type — A2-5

Chuck Size — 8"/3 Jaws

ITEM	UNIT	JCL-4232/5232	JCL-5250/6050
Max. swing over bed	mm	510	510
Max. turning diameter	mm	Ø320	Ø320
Max. turning length	mm	320	500
Max. bar capacity	mm	Ø42 / Ø50	Ø50 / Ø60
Spindle bore diameter	mm	Ø50 / Ø70	Ø70 / Ø75
Spindle nose		A2-5 / A2-5	A2-5 / A2-6
Spindle speed range	rpm	45 ~ 3500	45 ~ 3500
Spindle motor	kw	Standard:7.5 , Option:15
Number of tool stations		10	10
Max. stroke X / Z axis	mm	171 / 360	171 / 550
Rapid traverse X / Z axis	m / min	16 /20	16 /20
Turret indexing time	sec	0.3	0.3
Machine design	deg	30°	30°
Slide way type		Linear guide way
Quill taper		MT4	MT4
Tailstock traverse	mm	100	100
Spindle hydraulic chuck		8”	8”
Turning tool diameter	mm	□20	□20
Boring tool diameter	mm	Ø32	Ø32
Spindle bearing diameter	mm	Ø100 / Ø110	Ø100 / Ø110
X / Z axis ball screw	mm	Ø 32	Ø 32
Diameter X / Z servo motor	kw	Standard:1.2 , Option:1.6
Hydraulic motor	kw	1.5	1.5
Lubrication system motor	w	3.5	3.5
Power requirement	kva	20	20
Coolant tank capacity	L	120	120
Machine dimensions (LxWxH)	mm	2165x1555x1890	2780x1625x1950
Weight	kg	3100	3500
