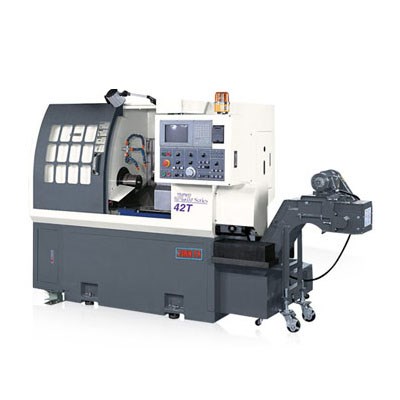

Jinn Fa JCL-42/52T Turning Center

Jinn Fa JCL-42/52T Turning Center

X Axis — 120 mm

Z Axis — 225/215 mm

Spindle Speed — 45~4000 rpm

Spindle Nose Type — A2-5

Chuck Size — 6"/3 Jaws

ITEM	UNIT	JCL-42/52T
Max. swing over bed	mm	Ø440
Max. turning diameter	mm	Ø200
Max. turning length	mm	215/205
Material coollect length	mm	100
Spindle max. bar capacity	mm	Ø42/Ø50
Spindle bore diameter	mm	Ø55.5/Ø70
Spindle nose		A2-5
Spindle speed range	rpm	45~4000
Spindle motor	kw	5.5(7.5)/7.5
Number of tool stations		8
Max. stroke X-axis	mm	120
Max stroke Z-axis	mm	225/215
Rapid traverse X-axis	m/min	12(16)
Rapid traverse Z-axis	m/min	12(16)
Turret indexing time	sec	0.3
Machine design	deg	20°
Slide way type		Square Guide way
Tailstock taper		-
Tailstock traverse	mm	-
Spindle hydraulic chuck	inch	6"
Turning tool diameter	mm	□20
Boring tool diameter	mm	Ø25
Driven tool motor power / 30min	kw	-
Hydraulic motor	kw	0.75
Lubrication motor	w	3.5
Power requirement	kva	15
Coolant tank capacity	L	100L(85%)
Machine dimensions (LxWxH)	mm	2255X1800X1800
Weight	kg	2235/2265
