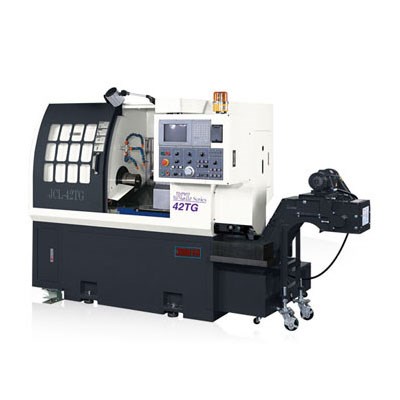

Jinn Fa JCL-42TGM/52TGM Turning Center

Homepage / Jinn Fa JCL-42TGM/52TGM Turning Center

X Axis — 130 mm(X1) 240 mm(X2)

Z Axis — 165/150 mm(Z1) 290 mm(Z2)

Spindle Speed — 45 ~ 4000 rpm

Spindle Nose Type — A2-5

Chuck Size — 6"/3 Jaws

ITEM	UNIT	JCL-42TG/52TG	JCL-42TGM/52TGM
Max. swing over bed	mm	Ø440	Ø440
Max. turning diameter	mm	Ø200	Ø140
Max. turning length	mm	195 / 180	155 / 140
Max. part catch length	mm	100	100
Max. bar capacity	mm	Ø42 / Ø50	Ø42 / Ø50
Spindle bore diameter	mm	Ø55.5 / Ø70	Ø55.5 / Ø70
Spindle nose		A2-5	A2-5
Spindle speed range	rpm	45 ~ 4000	45 ~ 4000
Spindle motor	kw	7.5	7.5
Number of tool stations $1		8	12
Number of tool stations $2		5	5
Max. stroke X1	mm	125	130
Max. stroke Z1	mm	205 / 190	165 / 150
Max. stroke X2	mm	240	240
Max. stroke Z2	mm	290	290
Rapid traverse X1	m / min	12 (16)	12 (16)
Rapid traverse Z1	m / min	12 (16)	12 (16)
Rapid traverse X2	m / min	12 (16)	12 (16)
Rapid traverse Z2	m / min	12 (16)	12 (16)
Turret indexing time	sec	0.3	0.3
Machine design	deg	20°	20°
Slide way type		Square guide way	Square guide way
Main-spindle hydraulic chuck	inch	6”	6”
Turning tool diameter	mm	□20	□16
Boring tool diameter	mm	Ø25	VDI 20
Driven tool motor power / 30min	kw	-	1.5
Hydraulic motor	kw	0.75	0.75
Lubrication motor	w	3.5	3.5
Power requirement	kva	15	21
Coolant tank capacity	L	100L (85%)	100L (85%)
Machine dimensions (LxWxH)	mm	2255x1800x1800	2255x1800x1800
Weight	kg	2400	2480
