| ITEM |
UNIT |

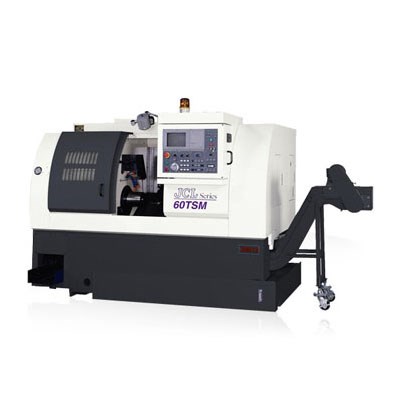

JCL-52TS / 60TS |
JCL-52TSM / 60TSM |
| Max. swing over bed |
mm |
Ø590 |
Ø590 |
| Max. turning diameter |
mm |
Ø395 |
Ø395 |
| Main-spindle max. turning diameter |
mm |
Ø240 |
Ø240 |
| Sub-spindle max. turning diameter |
mm |
Ø150 |
Ø150 |
| Max. turning length |
mm |
180 |
235 |
| Max part catch length |
|
80 |
80 |
| Main-spindle max. bar capacity |
mm |
Ø50 / Ø60 |
Ø50 / Ø60 |
| Sub-spindle max. bar capacity |
mm |
Ø42 |
Ø42 |
| Main-spindle bore diameter |
mm |
Ø75 |
Ø75 |
| Sub-spindle bore diameter |
mm |
Ø55.5 |
Ø55.5 |
| Main-spindle nose |
|
A2-6 |
A2-6 |
| Sub-spindle nose |
|
A2-5 |
A2-5 |
| Spindle speed range |
rpm |
45~3500 |
45~3500 |
| Spindle motor |
kw |
15 |
15 |
| Number of tool stations |
|
12 |
12 |
| Max. stroke X1 |
mm |
135 |
135 |
| Max. stroke Z1 |
mm |
225 |
280 |
| Max. stroke Z2 |
mm |
310 |
310 |
| Rapid traverse X1 |
m / min |
16 |
16 |
| Rapid traverse Z1 |
m / min |
20 |
20 |
| Rapid traverse Z2 |
m / min |
16 |
16 |
| Turret indexing time |
sec |
0.3 |
0.3 |
| Machine design |
deg |
30° |
30° |
| Slide way type |
|
Linear guide way |
Linear guide way |
| Main-spindle hydraulic chuck |
inch |
8” |
8” |
| Sub-spindle hydraulic chuck |
inch |
6” |
6” |
| Turning tool diameter |
mm |
□20 |
□20 |
| Boring tool diameter |
Mm |
Ø32 |
VDI 30 |
| Driven tool motor power / 30min |
kw |
- |
2.2 |
| Sub-spindle motor |
kw |
5.5 |
5.5 |
| Hydraulic motor |
kw |
2 |
2 |
| Lubrication motor |
w |
3.5 |
3.5 |
| Power requirement |
kva |
26 |
30 |
| Coolant tank capacity |
L |
140L (85%) |
140L (85%) |
| Machine dimensions (LxWxH) |
mm |
2695x1810x1950 |
2695x1810x1950 |
| Weight |
kg |
4150 |
4230 |
