| ITEM |
UNIT |
JSL-20RB |

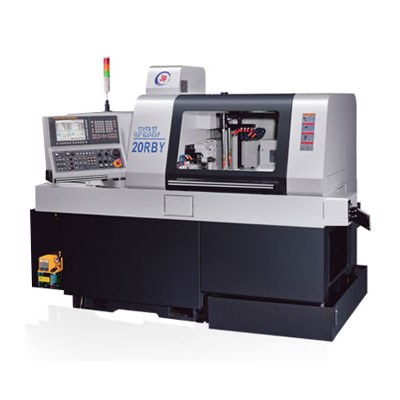

JSL-20RBY |
| Main Spindle Max. Turning Diameter |
mm |
20 |
20 |
| Sub Spindle Max. Turning Diameter |
mm |
20 |
20 |
| Max. Turning Length (rotating bush) |
mm |
250/190 |
250/190 |
| Max. Turning Length (non bush) |
mm |
Non/50 |
Non/50 |
| Max. Turning Length (fixed bush) |
mm |
280/220 |
280/220 |
| Main Spindle Max. Drilling/Tapping Capacity |
mm |
Ø10/M8 |
Ø10/M8 |
| Sub Spindle Max. Drilling/Tapping Capacity |
mm |
Ø8/M8 |
Ø8/M8 |
| Max. Cross Drilling/Tapping Capacity |
mm |
Ø8/M6 |
Ø8/M6 |
| OD Tool Holder |
pcs |
6/□12mm |
6/□12mm |
| ID Tool Holder |
pcs |
4/Ø22mm |
4/Ø22mm |
| S1 Cross Live Tool Holder |
pcs |
5/ER-16 |
5/ER-16 |
| Sub Spindle Face Tool Holder |
pcs |
4 |
8 |
| Control Axis (with C axis) |
pcs |
7 |
8 |
| Main/Sub Spindle Bore |
mm |
Ø26.6 |
Ø26.6 |
| Main/Sub Spindle Max. Speed |
rpm |
10000/8000 |
10000/8000 |
| X1/Z1/Y1/X2/Z2/Y2 Rapid Traverse |
m/min |
24 |
24 |
| S1 Cross Drilling Max. Speed |
rpm |
8000 |
8000 |
| S1 Cross Driven Motor |
kw |
1.2 |
1.2 |
| S2 Face Driven Motor |
kw |
0.5 |
0.75 |
| S2 Face Drilling Max. Speed |
rpm |
8000 |
8000 |
| Main Spindle Motor |
kw |
2.2/3.7 |
2.2/3.7 |
| Sub Spindle Motor |
kw |
2.2/3.7 |
2.2/3.7 |
| X1/Z1/Y1 Motor |
kw |
0.75 |
0.75 |
| X2/Z2 Motor |
kw |
0.5 |
0.5 |
| Y2 Motor |
kw |
Non |
0.5 |
| Coolant Pump |
kw |
2.3 |
2.3 |
| Power Requirements |
kw |
20KVA |
20KVA |
| Lubrication Capacity |
L |
2 |
2 |
| Coolant Tank Capacity |
L |
220(100%) |
220(100%) |
| Machine Dimensions (LxWxH) |
mm |
2846x1284x2024 |
2846x1284x2024 |
| Weight |
kg |
2670 |
2700 |
