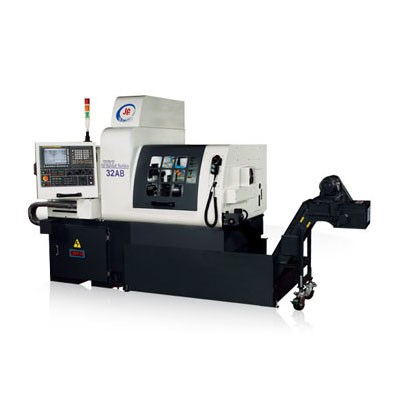

Jinn Fa JSL-26A/32A/26AB/32AB/42AB Swiss Type Lathe

Homepage / Jinn Fa JSL-26A/32A/26AB/32AB/42AB Swiss Type Lathe

Max. Turning Diameter — 26/32/26/32/42 mm

Max. Turning Length — 220 mm

Number of Axis Controls — 4/4/7/7/7

Spindle Speed Range — 200~7000 / 200~6000 rpm (Type 42)

Bore of Spindle — 40/45/40/45/55 mm

ITEM	UNIT	26A	32A	26AB	32AB	42AB
Max.turning dia. of main spindle	mm	26	32	26	32	42
Max.turning dia. of sub spindle	mm	-	-	26	32	42
Max. turning length (Fixed guide bush)	mm	220	220	220	220	220
Max. turning length (Rotary guide bush)	mm	200	200	200	200	200
Max. turning length (Non guide bush)	mm	65	80	65	80	80
Max. drilling capacity of main spindle	mm	13	13	13	13	13
Max. drilling capacity of sub spindle	mm	-	-	13	13	13
Max. tapping capacity of main spindle		M10	M10	M10	M10	M10
Max. tapping capacity of sub spindle		-	-	M10	M10	M10
Max. cross drilling capacity	mm	10	10	10	10	10
Max. cross tapping capacity		M8	M8	M8	M8	M8
No. of external turning tools	pcs	6 / 5 (Type 42)
No. of internal turning tools	pcs	5	5	5	5	5
No. of cross drillings	pcs	4 + (1)	4 + (1)	4 + (1)	4 + (1)	4 + (1)
Face tool holder No. (Sub spindle)	pcs	-	-	4	4	4
Size of tool	mm	16x16x95~155 / 20x20x95~155(Type 42)
No. of axis controls		4	4	7	7	7
Bore of spindle	mm	40	45	40	45	55
Spindle speed range	rpm	200~7000 / 200~6000 (Type 42)
Rapid traverse X / Z	m / min	24	24	24	24	24
Main spindle motor	kw	7.5	7.5	7.5	7.5	7.5
Sub spindle motor	kw	-	-	7.5	7.5	7.5
X1 / Z1 motor	kw	1.4	1.4	1.4	1.4	1.4
Y-Axis motor	kw	0.75	0.75	0.75	0.75	0.75
Cross drilling motor	kw	1.4	1.4	1.4	1.4	1.4
End drilling motor	kw	-	-	0.75	0.75	0.75
X2/Z2 motor	kw	-	-	0.75 / 0.75	0.75 / 0.75	0.75 / 0.75
Coolant motor	kw	2.3	2.3	2.3	2.3	2.3
Machine dimensions	Mm	2360x1660x2095		2865x1625x2045
Weight	kg	2500	2500	3100	3100	3100
