| ITEM |
UNIT |

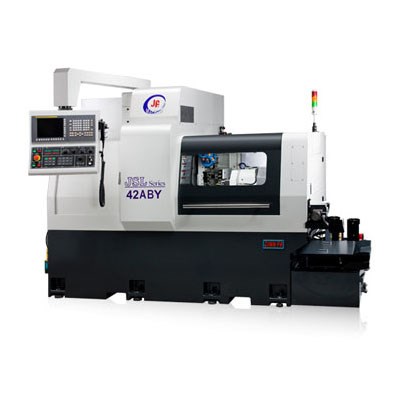

JSL-42ABY |
| Main spindle max. turning diameter |
mm |
42 |
| Sub spindle max. turning diameter |
mm |
42 |
| Max. turning length |
mm |
Rotary guide bush:200
Non guide bush:125 |
| Main spindle max. drilling diameter |
mm |
30 |
| Sub spindle max. drilling diameter |
mm |
30 |
| Main spindle max. tapping diameter |
mm |
M16 |
| Sub spindle max. tapping diameter |
mm |
M16 |
| Max. cross drilling diameter |
mm |
13 |
| Max. cross tapping diameter |
mm |
M10 |
| External tool holder |
pcs |
6 |
| Inner tool holder |
pcs |
5 |
| Cross drilling tool holder |
pcs |
4 (5) |
| Sub spindle external tool holder |
pcs |
4 |
| Sub spindle inner tool holder |
pcs |
3 |
| Sub spindle cross drill tool holder |
pcs |
4 |
| Sub spindle face drill tool holder |
pcs |
4 |
| Tool size (LxWxH) |
mm |
20 x 20 x 95 ~ 155 |
| Control axis |
pcs |
C1/(C2)/X1/Y1/Z1/X2/Y2/Z2 |
| Main spindle bore |
mm |
58 |
| Main spindle speed |
rpm |
15 ~ 6000 |
| Sub spindle bore |
mm |
56 |
| Sub spindle speed |
rpm |
15 ~ 6000 |
| X / Z / Y-axis rapid traverse |
m / min |
24 |
| $1 cross drilling speed |
rpm |
4000 |
| $2 face drilling speed |
rpm |
3000 |
| Main spindle motor |
kw |
7.5 (15) |
| Sub spindle motor |
kw |
7.5 |
| X1 / Z1 motor |
kw |
1.6 |
| Y1 motor |
kw |
1.4 |
| $1 cross drilling motor |
kw |
1.6 |
| X2 /Z2 motor |
kw |
1.4 |
| Y2 motor |
kw |
1.4 |
| $2 face drilling motor |
kw |
1.6 |
| Hydraulic motor |
kw |
0.75 |
| Coolant pump |
kw |
2.3 x 2 pcs |
| Power requirement |
kw |
40 |
| Lubrication capacity |
L |
2 |
| Coolant tank capacity |
L |
480 |
| Machine dimensions (LxWxH) |
mm |
3380x2455x2155 |
| Weight |
kg |
7500 |
