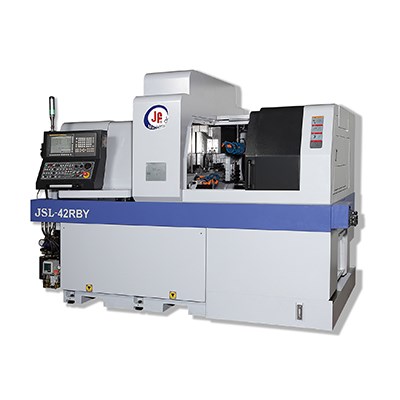

| ITEM |
UNIT |
JSL-32RB |
JSL-32RBY |
JSL-42RB |
JSL-42RBY |
JSL-51RB |
JSL-51RBY |
| Max. turning diameter of main spindle |
mm |
32 |
42 |
51 |
| Max. turning diameter of sub-spindle |
mm |
32 |
42 |
51 |
| Max. turning length(rotating guide bushing) |
mm |
300 |
| Max. turning length(non-guide bushing) |
mm |
130 |
| Max. drilling/tapping capacity of sub spindle |
mm |
Ø13 / M10 |
Ø16 / M12 |
| Max. drilling/tapping capacity of main spindle |
mm |
Ø10 / M8 |
Ø26 / M16 |
| Max. cross drilling/tapping capacity |
mm |
Ø10 / M6 |
Ø12 / M10 |
| O.D. tool holder |
pcs |
6 (口16mm) / 5 (口20mm) |
| I.D. tool holder |
pcs |
5 / Ø25mm |
| S1 cross live tool holder |
pcs |
6 (ER-20) |
| Face drills of sub-spindle |
pcs |
4 |
8 |
4 |
8 |
4 |
8 |
| Controlled axes (Incl. C-axis) |
pcs |
7 |
8 |
7 |
8 |
7 |
8 |
| Main/sub-spindle bore |
mm |
Ø34 |
Ø44 |
Ø52 |
| Max. speed of main/sub-spindle |
rpm |
7000 |
6000 |
4500 |
| X1/Z1/Y1/X2/Z2/Y2 axis rapid traverse |
m/min |
24 |
| Max. speed of S1 cross drilling |
rpm |
4000 |
| S1cross tooling drive motor |
KW |
1.6 |
2.5 |
| S2 face tooling drive motor |
KW |
0.75 |
2.5 |
| Max. speed of S2 drill |
rpm |
4000 |
| Main spindle motor |
KW |
5.5 / 7.5 |
11 |
15 |
| Sub spindle motor |
KW |
5.5 / 7.5 |
7.5 |
11 |
| X1/Z1 axis motor |
KW |
1.4 |
2.5 |
| Y1/X2/Z2 axis motor |
KW |
0.75 |
2.5 |
| Y2 axis motor |
KW |
non |
0.75 |
non |
0.75 |
non |
2.5 |
| Coolant pump motor |
KW |
1.29 |
0.54 |
| Power required |
KVA |
30 |
| Lubrication oil capacity |
L |
2 |
| Coolant tank capacity |
L |
250(100%) |
| Machine dimensions(L x W x H) |
mm |
3173x1695x2146 |
| Weight |
KG |
4900 |
4920 |
4900 |
4920 |
5450 |
5480 |
