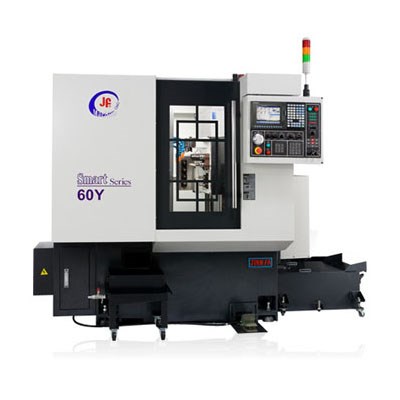

Jinn Fa SMAR-42Y / 60Y Turning Center

Homepage / Jinn Fa SMAR-42Y / 60Y Turning Center

X Axis — 300 mm

Y Axis — 432 mm

Z Axis — 150 mm

Spindle Speed — 45 ~ 3500 rpm

Spindle Nose Type — A2-5

Chuck Size — 6"/3 Jaws

ITEM	UNIT	SMAR-42Y / 60Y
Main spindle max. turning diameter	mm	42 / 60
Max. turning length	mm	130
Max. stroke X	mm	300
Max. stroke Y	mm	432
Max. stroke Z	mm	150
Max. side / face drilling diameter	mm	16
Max. side / face tapping diameter	mm	M12
External tool holder	pcs	6
Inner tool holder	pcs	6
Cross drilling tool holder	pcs	6
Face drilling tool holder	pcs	6
Tool size	mm	20x20x110 ~ 155
Control axis	pcs	C / X / Y / Z
Spindle bore	mm	Ø55 / Ø75
Spindle speed	rpm	45 ~3500
Cross drilling speed	rpm	3000
Face drilling speed	rpm	3000
X / Z / Y axis rapid traverse	m / min	16
Main spindle motor	kw	7.5
X motor	kw	1.5
Y motor	kw	1.5
Z axis motor	kw	1.5
Cross drilling motor	kw	1.5
Face drilling motor	kw	1.5
Coolant pump	kw	0.375 x 2
Power requirement	kw	17
Lubrication capacity	L	2
Coolant tank capacity	L	300
Machine dimension	mm	2785x1920x1900
Weight	kg	3370
