Jinn Fa SMART-42 Turning Center

Homepage / Jinn Fa SMART-42 Turning Center

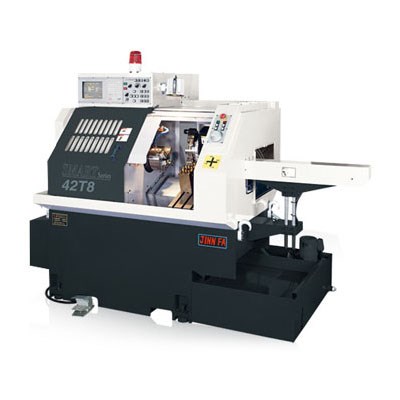

Jinn Fa SMART-42 Turning Center

Jinn Fa SMART-42 Turning Center

X Axis — 215 mm

Z Axis — 127 mm

Spindle Speed — 45 ~ 3500 rpm

Spindle Nose Type — A2-5

Chuck Size — 6"/3 Jaws

ITEM	UNIT	SMART-42	SMART-42T8
Max. swing over bed	mm	320	320
Max. turning diameter	mm	Ø200	Ø200
Max. turning length	mm	117	140
Max. bar capacity	mm	Ø 42	Ø 42
Bore of spindle	mm	Ø 44	Ø 44
Spindle bearing inside dia.	mm	Ø 80	Ø 80
Spindle nose	mm	A2-5	A2-5
Spindle speed range	rpm	45 ~ 3500	45 ~ 3500
Spindle motor	kw	5.5	5.5
Max. travel X1 / Z1 axis	mm	215 / 127	215 / 150
Rapid traverse X1 / Z1 axis	mm	16	16
Turret indexing time	sec	-	0.3
Machine slant degree		20°	20°
Slide way type		Square guide way	Square guide way
3-jaw chuck size		6”	6”
Collet type	mm	173E	173E
Turning tool size	mm	□20	□20
Boring tool diameter	mm	Ø 25	Ø 25
Cutting tool size	mm	□20	□20
X / Z axis ball screw dia.	mm	Ø 32	Ø 32
X / Z axis feeding motor	kw	0.75 / 1.0	0.75 / 1.0
Hydraulic motor	kw	0.75	0.75
Lubrication motor	w	150	150
Power requirement	kva	10	10
Coolant tank capacity	L	80	80
Machine dimensions (LxWxH)	mm	2813x1350x1825	2813x1350x1825
Weight	kg	2200	2200
