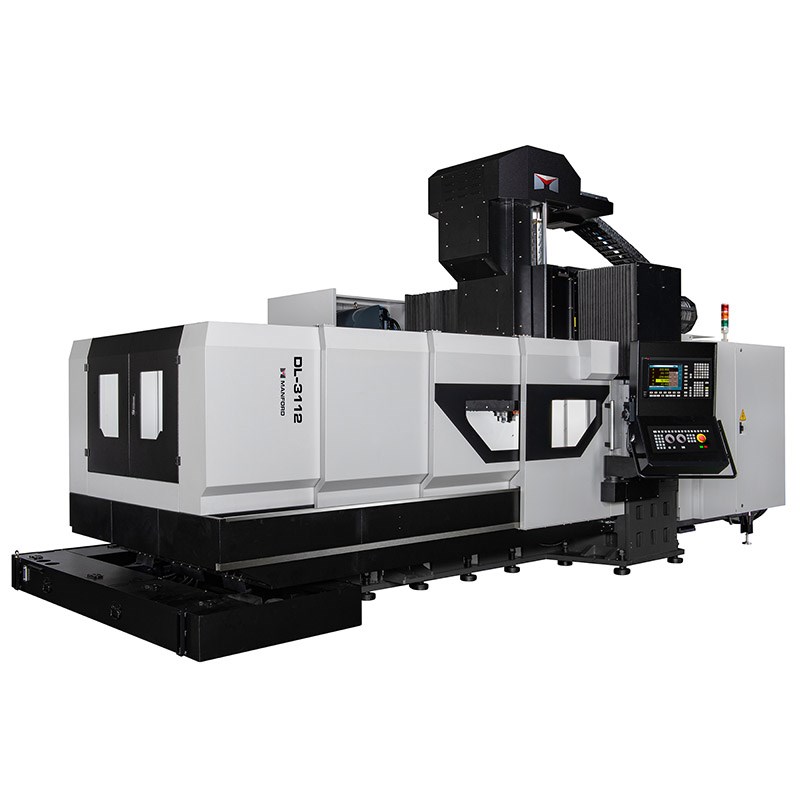

Manford DL-3112 Double Column Machining Center

Homepage / Manford DL-3112 Double Column Machining Center

X Travel — 3,100 mm

Y Travel — 1,220 mm

Z Travel — 800 mm

Spindle Speed — 10,000 rpm

Spindle Taper — BT40

SPECIFICATION
X TRAVEL	3,100 mm
Y TRAVEL	1,220 mm
Z TRAVEL	800 mm
SPINDLE NOSE TO TABLE SURFACE	150 ~ 950 mm
DISTANCE BETWEEN COLUMNS	1,400 mm
TABLE SIZE	3,000 x 1,100 mm
T-SLOT (Q'TY X SIZE X DIST)	7 x 22 x 150 mm
MAX. TABLE LOAD	5,000 kgs
SPINDLE
SPINDLE TRANSMISSION	Direct type
SPINDLE TAPER	BT40
SPINDLE SPEED	10,000 rpm
SPINDLE POWER	11 / 15 kW
OTHER ITEMS
ATC CAPACITY	24 tools
SLIDEWAYS FOR 3 AXIS	X / Y / Z Roller type linear guideway
