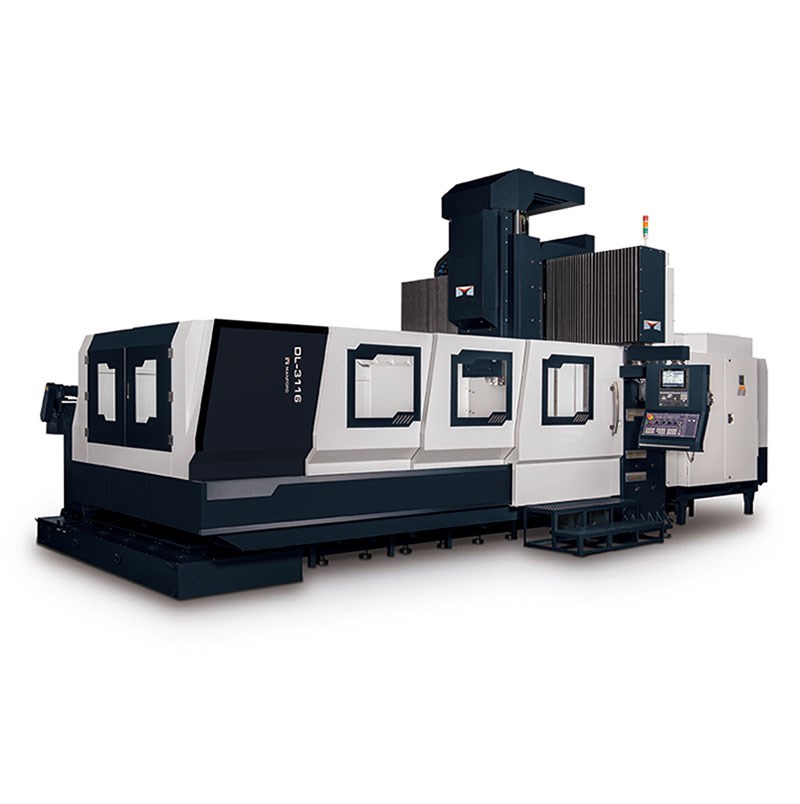

Manford DL-3116 Double Column Machining Center

Homepage / Manford DL-3116 Double Column Machining Center

X Travel — 3,100 mm

Y Travel — 1,620 mm

Z Travel — 800 mm

Spindle Speed — 6,000 rpm ( 2 steps gear box )

Spindle Taper — BT50

SPECIFICATION
X TRAVEL	3,100 mm
Y TRAVEL	1,620 mm
Z TRAVEL	800 mm
SPINDLE NOSE TO TABLE SURFACE	150 ~ 950 mm
DISTANCE BETWEEN COLUMNS	1,700 mm
TABLE SIZE	3,000 x 1,500 mm
T-SLOT (Q'TY X SIZE X DIST)	9 x 22 x 150 mm
MAX. TABLE LOAD	10,000 kgs
SPINDLE
SPINDLE TRANSMISSION	Two-step Gear transmission
SPINDLE TAPER	BT50
SPINDLE SPEED	6,000 rpm ( 2 steps gear box )
SPINDLE POWER	15 / 18.5 kW
OTHER ITEMS
ATC CAPACITY	32 tools
SLIDEWAYS FOR 3 AXIS	X / Y: Roller type linear guideway / Z: Box ways
