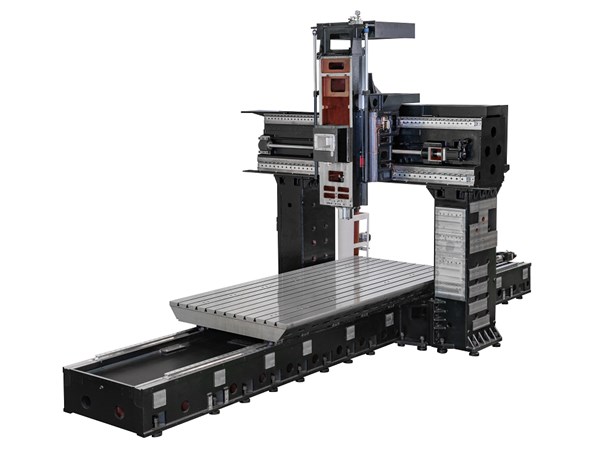

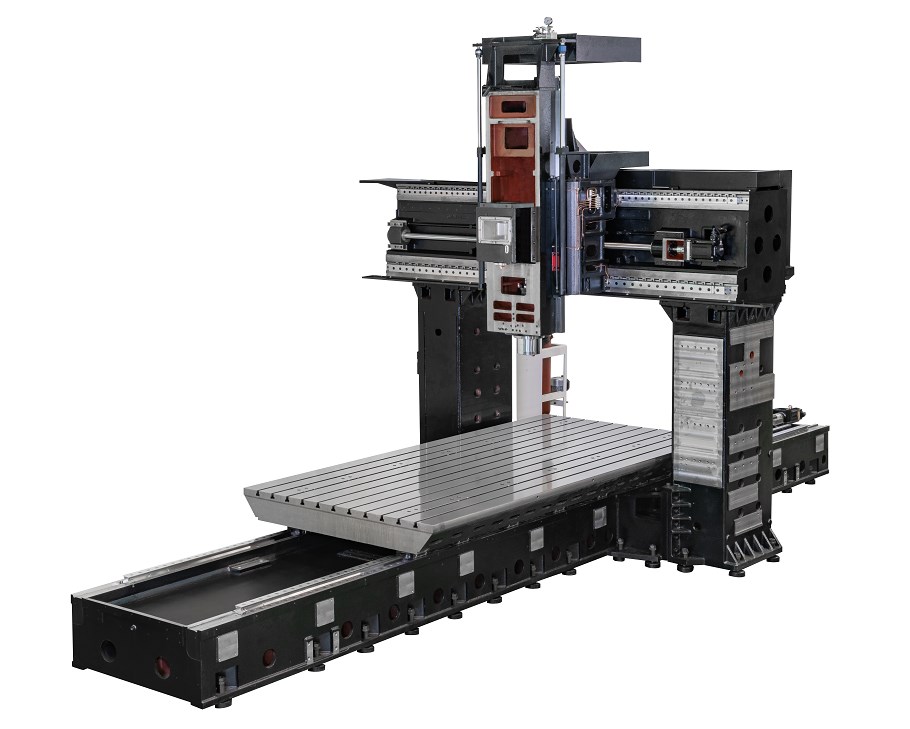

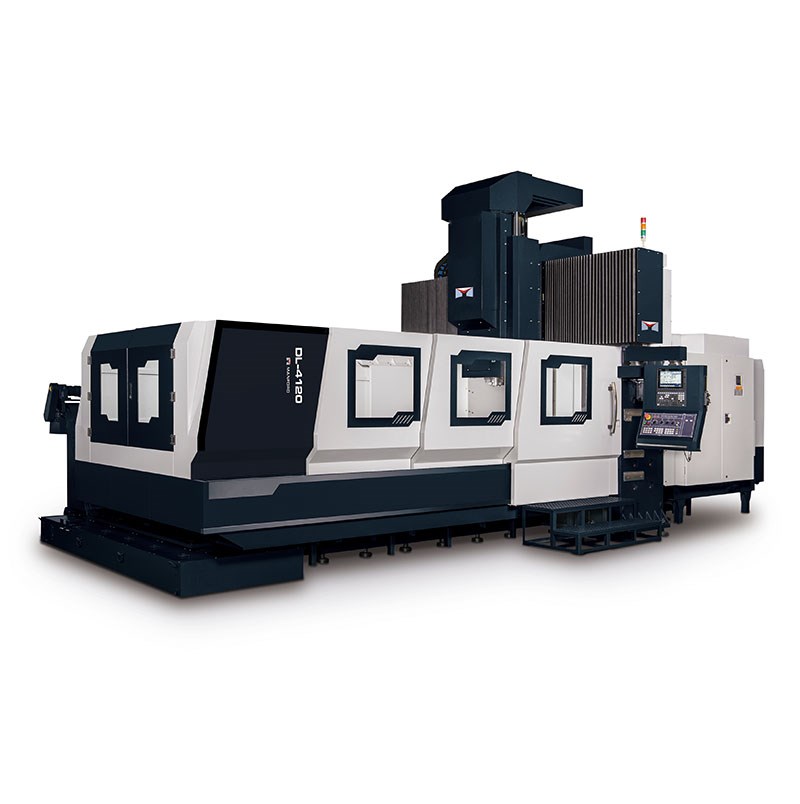

Manford DL-4120 Double Column Machining Center

Homepage / Manford DL-4120 Double Column Machining Center

X Travel — 4,100 mm

Y Travel — 2,020 mm

Z Travel — 800 mm

Spindle Speed — 6,000 rpm ( 2 steps gear box )

Spindle Taper — BT50

SPECIFICATION
X TRAVEL	4,100 mm
Y TRAVEL	2,020 mm
Z TRAVEL	800 mm
SPINDLE NOSE TO TABLE SURFACE	150 ~ 950 mm
DISTANCE BETWEEN COLUMNS	2,100 mm
TABLE SIZE	4,000 x 1,800 mm
T-SLOT (Q'TY X SIZE X DIST)	11 x 22 x 150 mm
MAX. TABLE LOAD	10,000 kgs
SPINDLE
SPINDLE TRANSMISSION	Two-step Gear transmission
SPINDLE TAPER	BT50
SPINDLE SPEED	6,000 rpm ( 2 steps gear box )
SPINDLE POWER	15 / 18.5 kW
OTHER ITEMS
ATC CAPACITY	32 tools
SLIDEWAYS FOR 3 AXIS	X / Y: Roller type linear guideway / Z: Box ways
