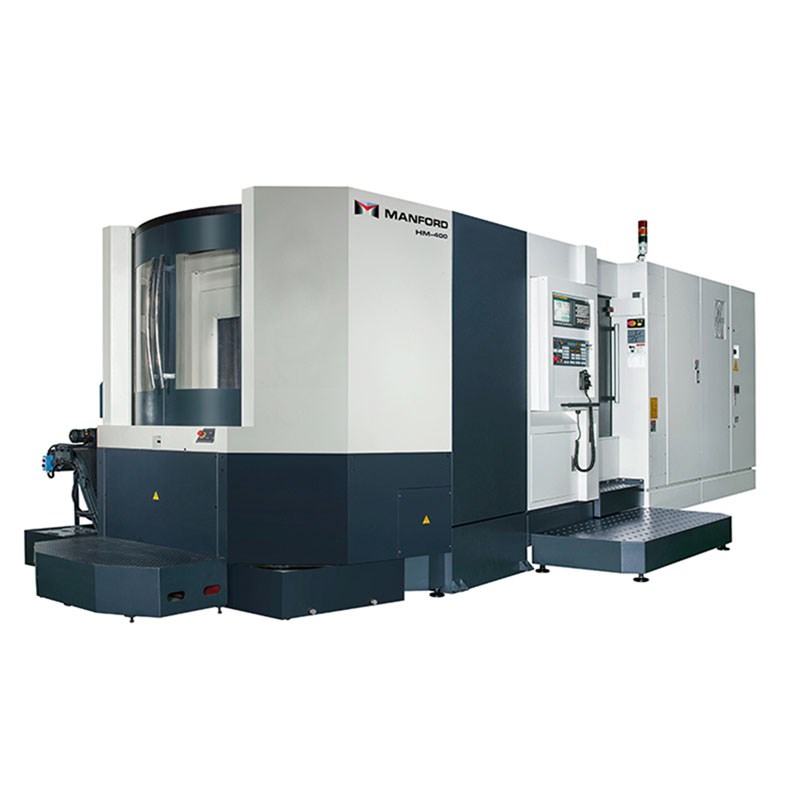

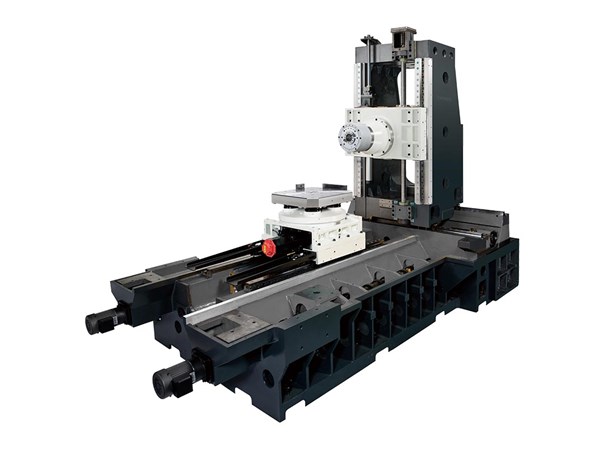

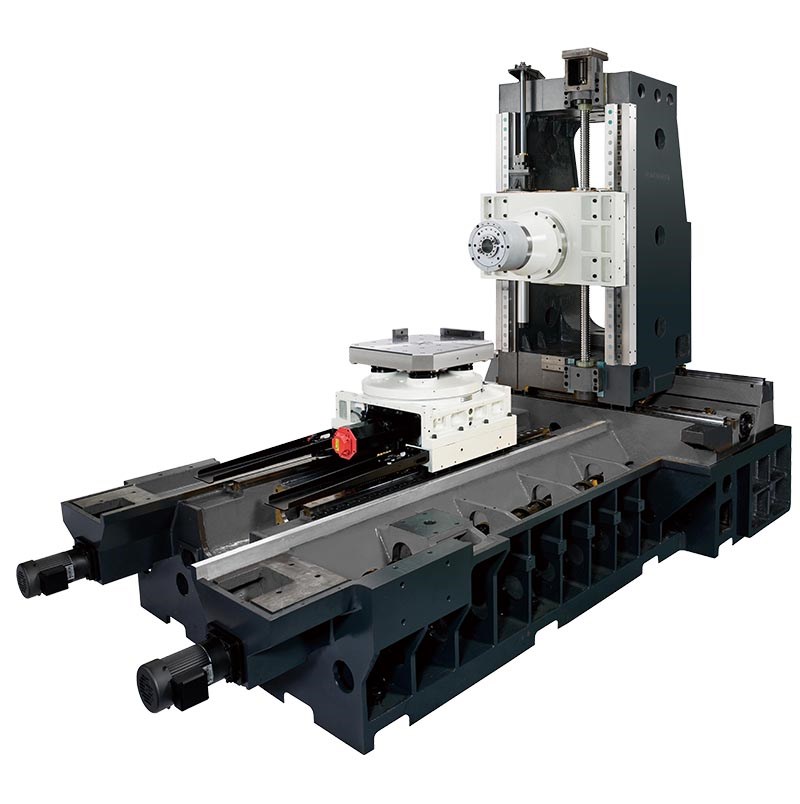

Manford HM-400 Horizontal Machining Center

Homepage / Manford HM-400 Horizontal Machining Center

X Travel — 630 mm

Y Travel — 630 mm

Z Travel — 630 mm

Spindle Speed — 10,000 rpm

Spindle Taper — BT40

SPECIFICATION
TRAVEL
X TRAVEL	630 mm
Y TRAVEL
Z TRAVEL
SPINDLE CENTER TO TABLE SURFACE	50~680 mm
SPINDLE NOSE TO TABLE SURFACE	130~760 mm

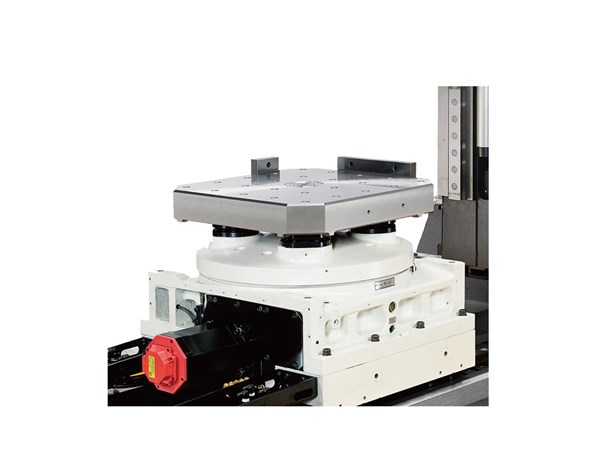

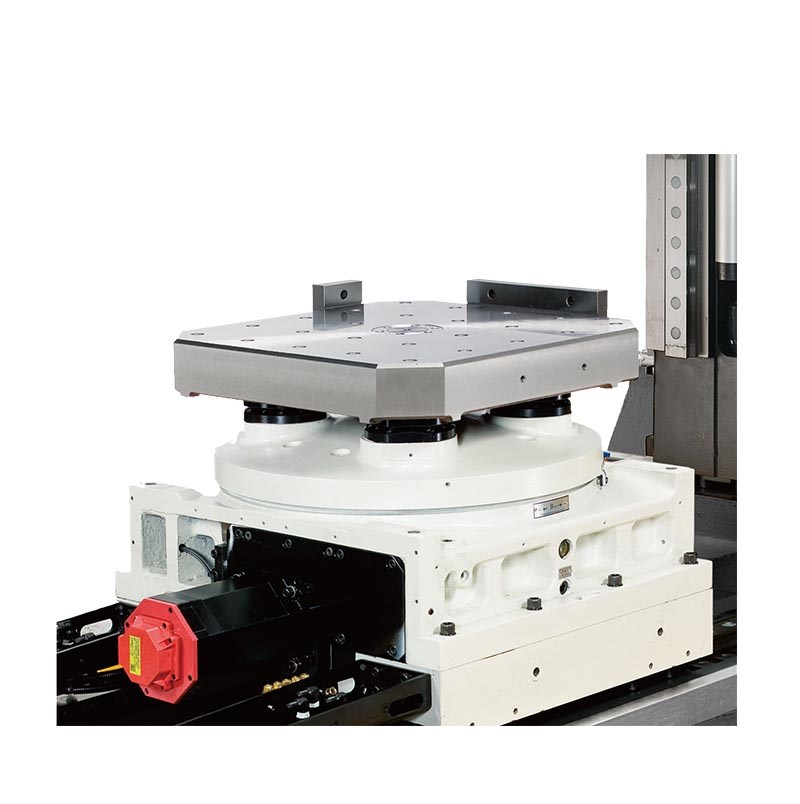

TABLE
TABLE SURFACE TO FLOOR	1100 mm
TABLE SIZE	400×400 mm
T-SLOT/BOLT SPEC.	24-M10 x P1.5 x 20
TABLE LOAD CAPACITY	400 kgs
INDEX PRECISION	0.001°
SPINDLE
SPINDLE TAPER	BT40
SPINDLE SPEED	10000rpm
FEEDRATE
SPINDLE MOTER(CONT/30 MIN)	15/18.5 kw
3-AXES CUTTING FEEDRATE	1-10000 mm/min
3-AXES RAPID FEEDRATE	36 m/min
3-AXES MIN. SETTING UNIT	0.001mm
ATC
TOOLS	40 Tools
APC
NUMBER OF PALLETS	2 pcs
METHOD OF PALLET CHANGE	Rotary
PALLET CHANGE TIME	8 sec
