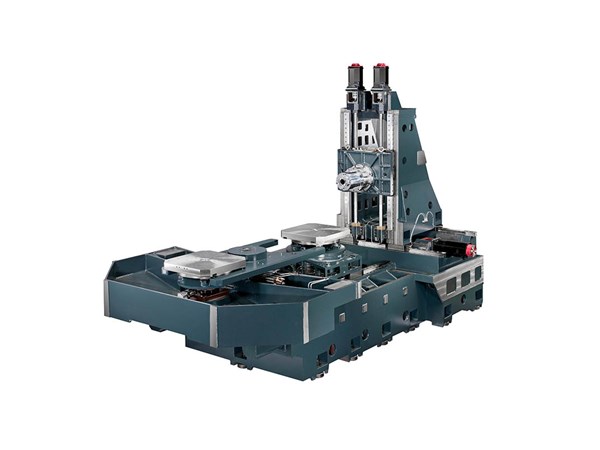

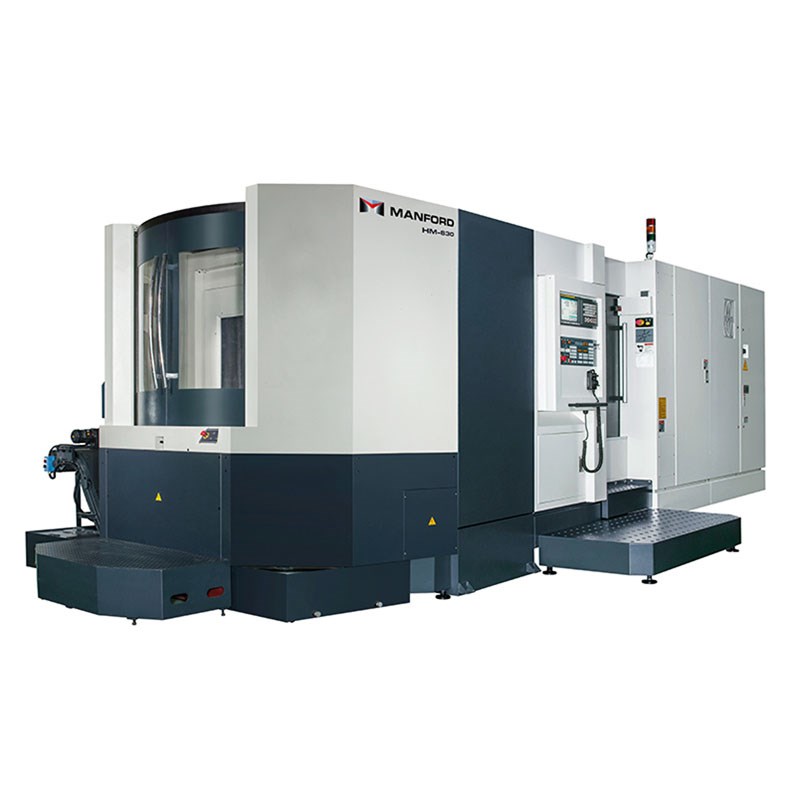

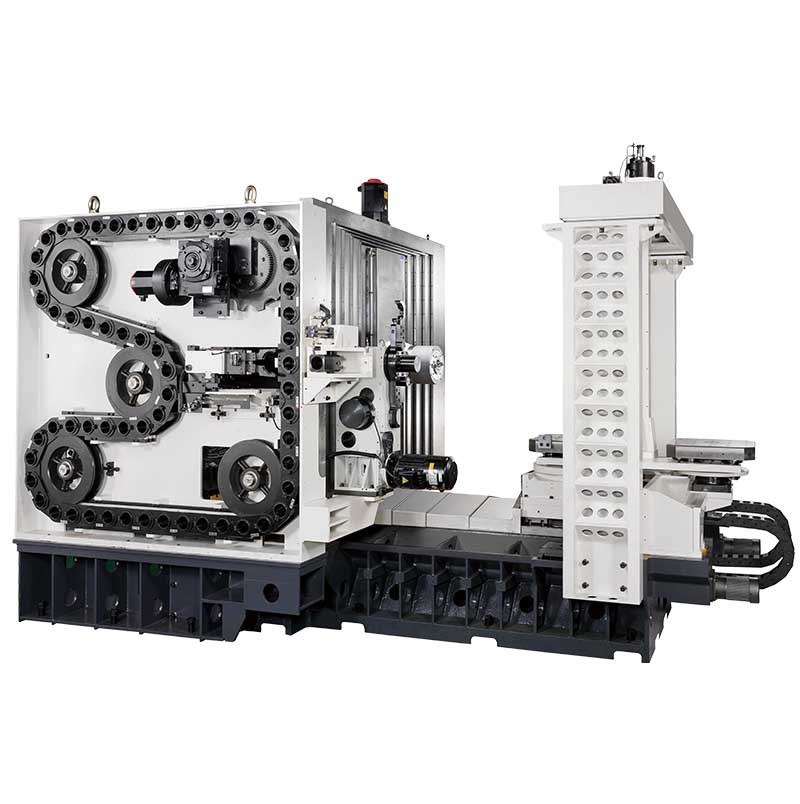

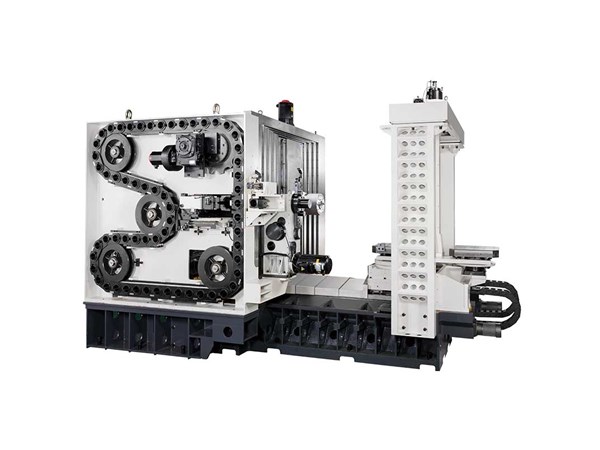

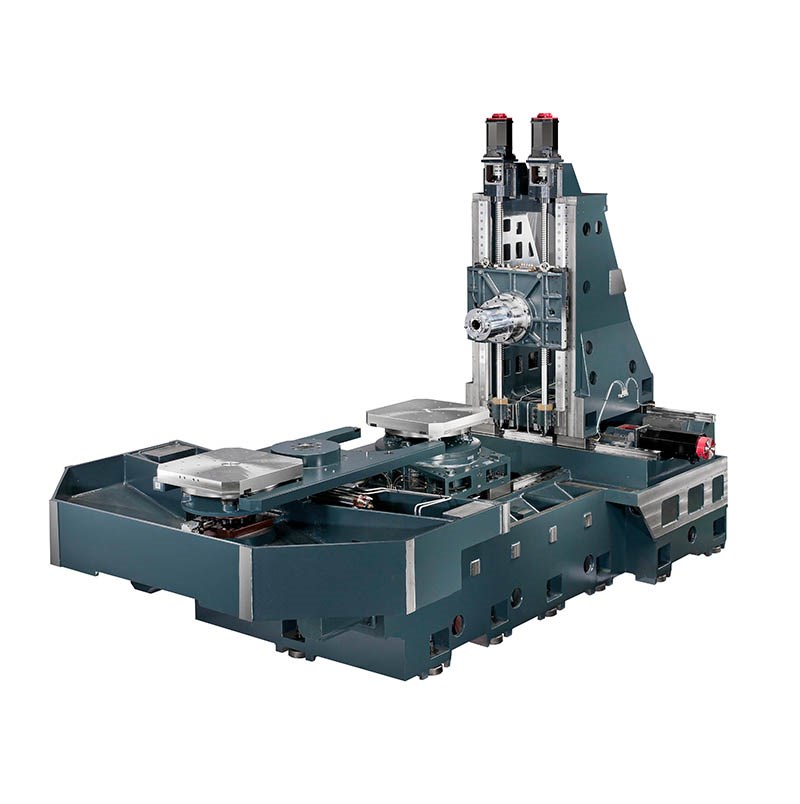

Manford HM-630 Horizontal Machining Center

Homepage / Manford HM-630 Horizontal Machining Center

X Travel — 1000 mm

Y Travel — 850 mm

Z Travel — 950 mm

Spindle Speed — 6,000 rpm

Spindle Taper — BT50

SPECIFICATION
TRAVEL
X TRAVEL	1000 mm
Y TRAVEL	850 mm
Z TRAVEL	950 mm
SPINDLE CENTER TO TABLE SURFACE	100~950 mm
SPINDLE NOSE TO TABLE SURFACE	150~1100 mm
TABLE
TABLE SURFACE TO FLOOR	1300 mm
TABLE SIZE	630×630 mm
T-SLOT/BOLT SPEC.	24-M16×P2.0
TABLE LOAD CAPACITY	1200 kgs
INDEX PRECISION	1°
SPINDLE
SPINDLE TAPER	BT50
SPINDLE SPEED	6000 rpm
FEEDRATE
SPINDLE MOTER(CONT/30 MIN)	22/26 kw
3-AXES CUTTING FEEDRATE	1~10000 mm/min
3-AXES RAPID FEEDRATE	36 m/min
3-AXES MIN. SETTING UNIT	0.001mm
ATC
TOOLS	40 tools
APC
NUMBER OF PALLETS	2 pcs
METHOD OF PALLET CHANGE	Rotary
PALLET CHANGE TIME	16 sec
