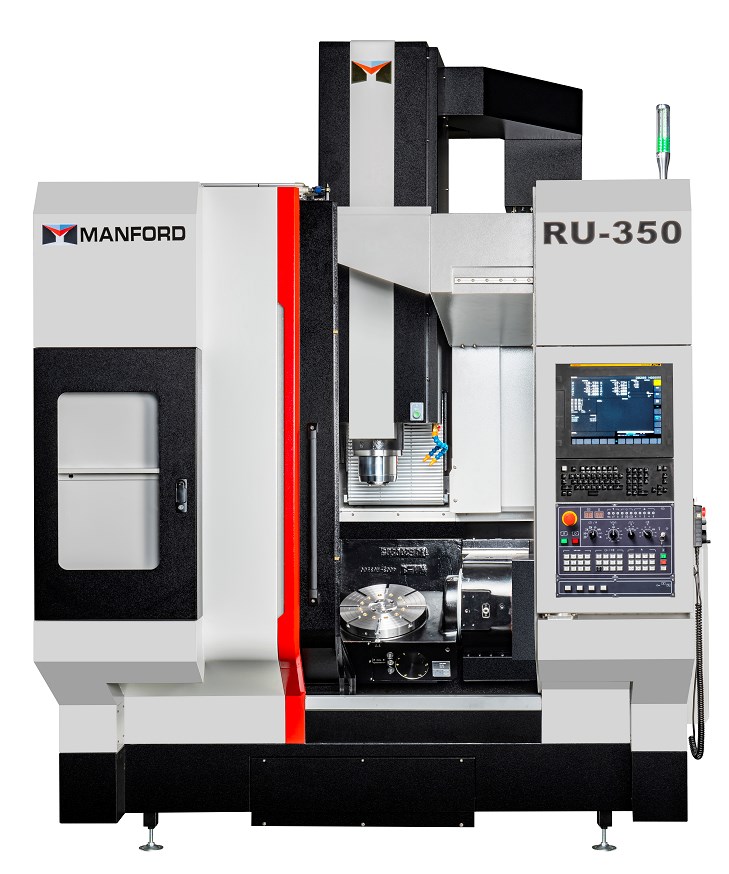

Manford RU-350 5 Axis Machining Center

Homepage / Manford RU-350 5 Axis Machining Center

X Axis — 630 mm (+300~-330)

Y Axis — 630 mm (+270~-350)

Z Axis — 510 mm

Spindle Speed — 12,000 rpm

Spindle Taper — BBT40

SPECIFICATION
X TRAVEL	630 mm (+300~-330)
Y TRAVEL	630 mm (+270~-350)
Z TRAVEL	510 mm
SPINDLE NOSE TO TABLE SURFACE	100 ~ 610 mm
TABLE SIZE	Ø 350 mm
T-SLOT (Q'TY X SIZE X DIST)	8 x 12 x 45º
MAX. TABLE LOAD	Horizontal 200 kgs / Tilting 150 kgs
ATC CAPACITY	32 tools (Chain type)
CNC CONTROL	Fanuc 0iMF 15"
SPINDLE
TRANSMISSION	Direct type
SPINDLE TAPER	BBT40
SPINDLE SPEED	12,000 rpm
SPINDLE POWER	7.5 / 11 kW *
ROTARY TABLE ( A/C AXIS )
A AXIS TILTING RANGE	-120˚ ~ + 10˚
C AXIS ROTATING RANGE	360˚
