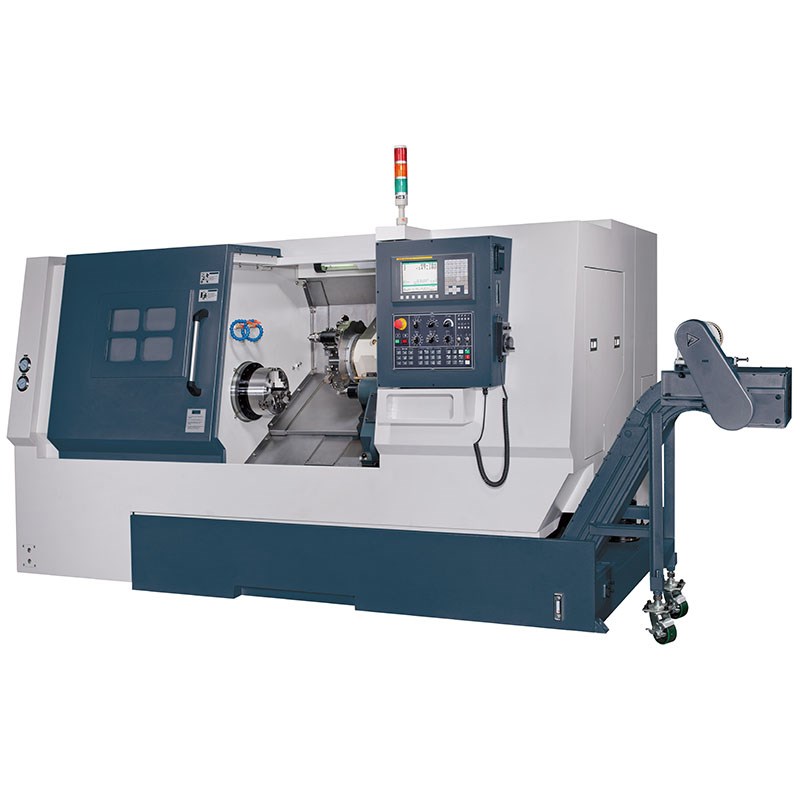

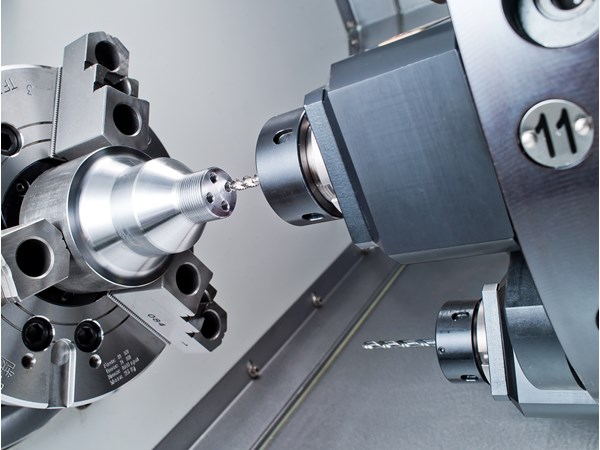

Manford SBH-8/SBH-8M CNC Turning Center
X Axis — 205+25 mm
Z Axis — 550/800/1050 mm
Spindle Speed — 3500 rpm
Spindle Nose Type — A2-8
Chuck Size — 10"/3 Jaws
| SPECIFICATION |
| MACHINE MODEL |
SBH-8 |
SBH-8M |
| CAPACITY |
| MAX. SWING OVER BED |
Ø600 mm |
| MAX. SWING OVER SADDLE |
Ø400 mm |
| MAX. TURNING DIAMETER |
Ø410 mm |
VDI40: Ø305 mm
(Opt. BM55: 410mm) |
| MAX. WORKING LENGTH |
750/1000 |
VDI40: 750/1000 mm
(Opt. BM55: 700/950 mm) |
| DISTANCE BETWEEN CENTERS |
620/870/1120 mm |
| SPINDLE |
| SPINDLE NOSE TYPE |
A2-8 |
| MAX. SPINDLE SPEED |
3500 rpm |
| FRONT BEARING I.D OF SPINDLE |
Ø130 mm |
| SPINDLE BORE |
Ø92.2 mm |
| MAX. BAR CAPACITY |
Ø78 mm |
| CHUCK SIZE |
10"/3 Jaws |
| AXIS FEED |
| X AXIS TRAVEL |
205+25 mm |
| Z AXIS TRAVEL |
550/800/1050 mm |
| RAPID FEED - X / Z AXIS |
20(x)/24(z) m/min |
| CUTTING FEED RATE |
1-1000 mm/min |
| DIA. OF B.S (X / Z AXIS) |
X: Ø32 Z:Ø40 |

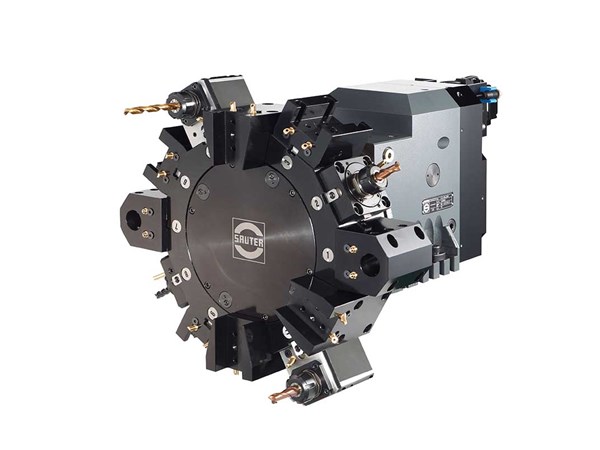

| TURRET |
| TYPE |
Servo |
Power |
| NUMBER OF TOOL STATIONS |
12 pcs |
| TOOL SHANK SIZE |
25x25 |
VDI 40 |
| MAX. BORING BAR DIA. |
Ø40 mm |
| TAIL STOCK |
| TAILSTOCK TRAVEL |
550/800/1050 mm |
| QUILL DIA. |
Ø90 mm |
| QUILL TRAVEL |
102 mm |
| TAPER OF CENTER |
MT5 |
| TAILSTOCK ORIENTATION |
Manual |
| MOTOR |
| MAIN SPINDLE MOTOR POWER |
15/18.5 Kw |
| FEED MOTOR |
3/3 Kw |
| POWER TURRET MOTOR |
3.7/5.5 Kw |
| LUBRICATION PUMP |
70 W |
| HYDRAULIC OIL PUMP |
3 HP |
| COOLANT PUMP |
0.75 Kw |
| CHIP CONVEYOR |
0.2 Kw |
| POWER REQUIREMENT |
35 KVA |
| UTILITY |
| HYDRAULIC TANK CAPACITY |
50 L |
| COOLANT TANK |
120/140/160 L |
| LUBRICATION TANK |
2 L |
| AIR SOURCE |
6 kg/cm2 |
