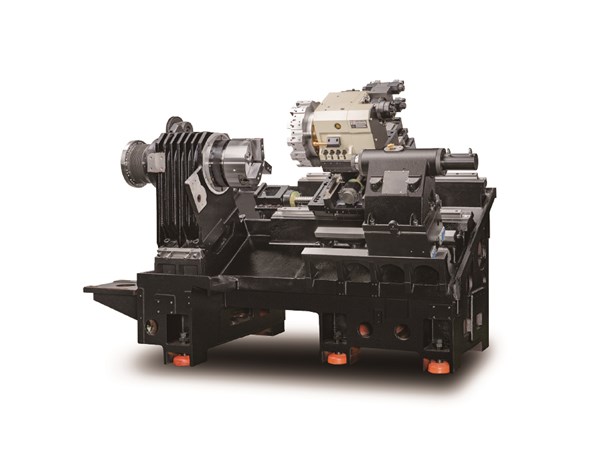

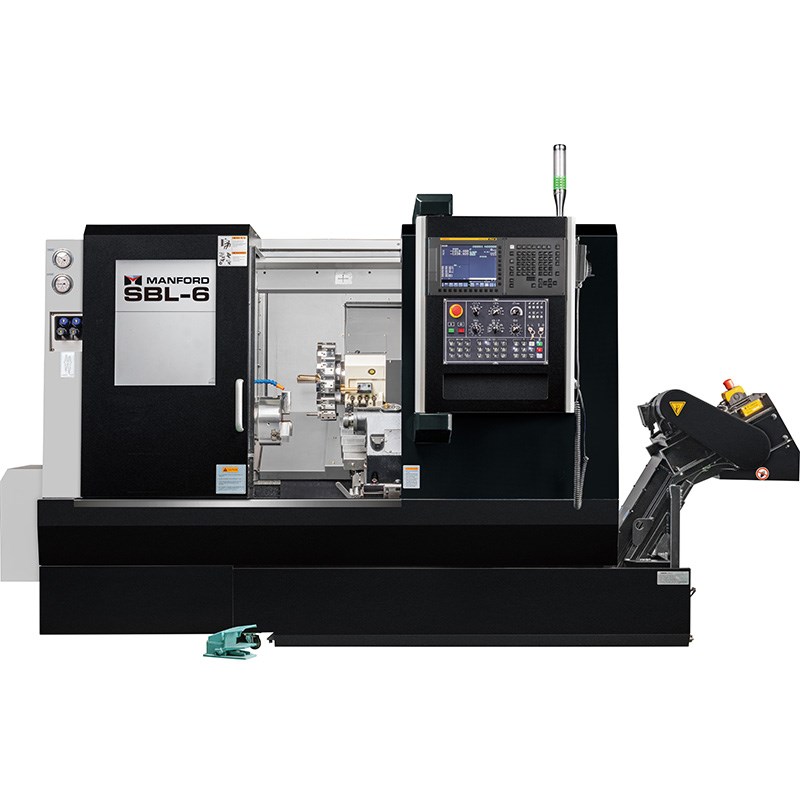

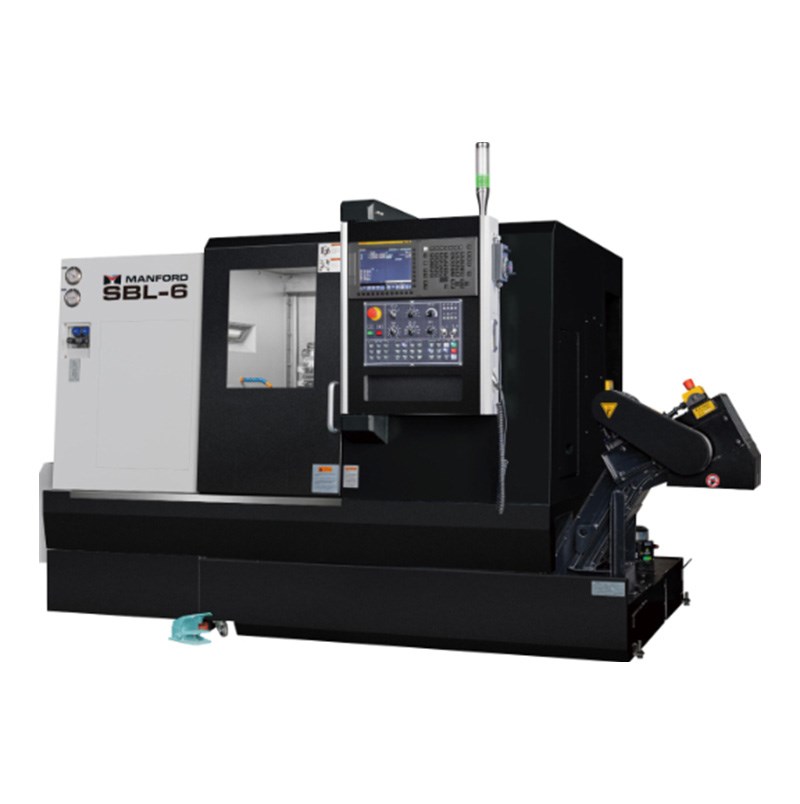

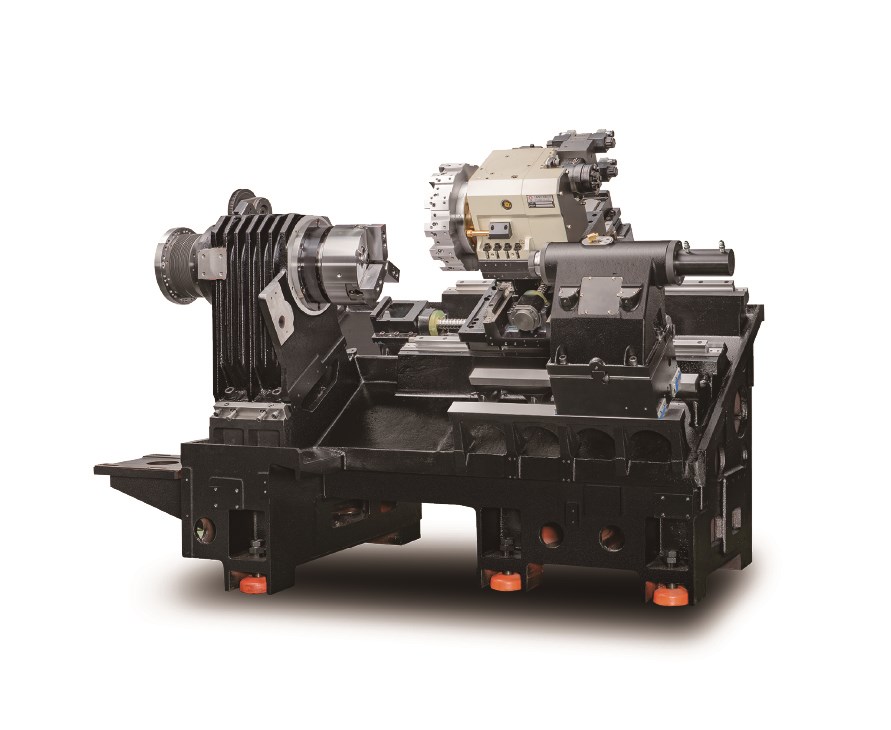

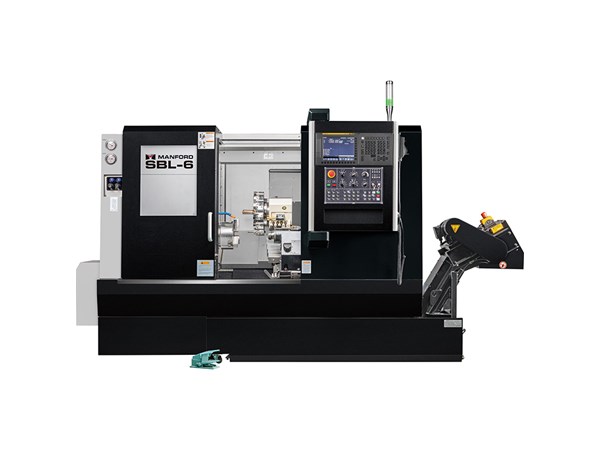

Manford SBL-6/SBL-6M CNC Turning Center
X Axis — 185+15 mm
Z Axis — 400 mm
Spindle Speed — 4500 rpm
Spindle Nose Type — A2-6
Chuck Size — 8"/3 Jaws
| SPECIFICATION |
| MACHINE MODEL |
SBL-6 |
SBL-6M |
| CAPACITY |
| MAX. SWING OVER BED |
Ø530 mm |
| MAX. SWING OVER SADDLE |
Ø300 mm |
| MAX. TURNING DIAMETER |
370 mm |
298 mm |
| MAX. WORKING LENGTH |
400/600 mm |
380/580 mm |
| SPINDLE |
| SPINDLE NOSE TYPE |
A2-6 |
| MAX. SPINDLE SPEED |
4500 rpm |
| FRONT BEARING I.D OF SPINDLE |
Ø100 mm |
| SPINDLE BORE |
Ø66 mm |
| MAX. BAR CAPACITY |
Ø51 mm |
| CHUCK SIZE |
8"/3 Jaws |
| AXIS FEED |
| X AXIS TRAVEL |
185+15 mm |
| Z AXIS TRAVEL |
400 mm |
| RAPID FEED - X / Z AXIS |
30 M/min |
| CUTTING FEED RATE |
10 M/min |
| TURRET |
| TYPE |
Hydraulic |
Power |
| NUMBER OF TOOL STATIONS |
12 pcs |
| TOOL SHANK SIZE |
20 mm |
VDI 30 |
| MAX. BORING BAR DIA. |
Ø32 mm |
Ø25 mm |
| TAIL STOCK |
| TAILSTOCK TRAVEL |
350/550 mm |
| QUILL DIA. |
Ø75 mm |
| QUILL TRAVEL |
75 mm |
| TAPER OF CENTER |
MT4 |
| TAILSTOCK ORIENTATION |
Manual |
| MOTOR |
| MAIN SPINDLE MOTOR POWER |
9/11 Kw |
| FEED MOTOR |
1.5 Kw |
| POWER TURRET MOTOR |
N/A |
2.2/3.7 |
| POWER REQUIREMENT |
25 KVA |
| UTILITY |
| HYDRAULIC TANK CAPACITY |
30 L |
| COOLANT TANK |
160 L |
| LUBRICATION TANK |
2 L |
| AIR SOURCE |
0.6 Mpa |
