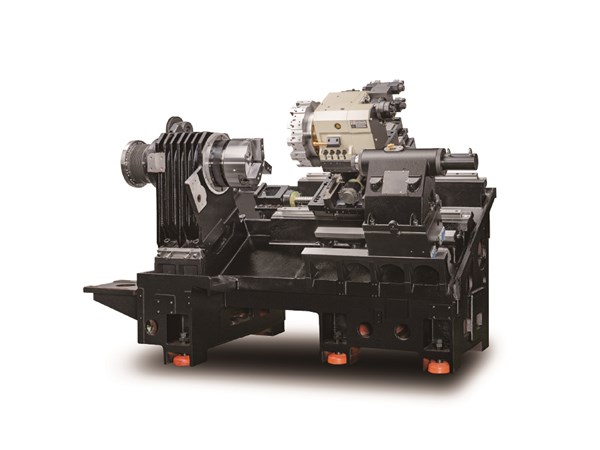

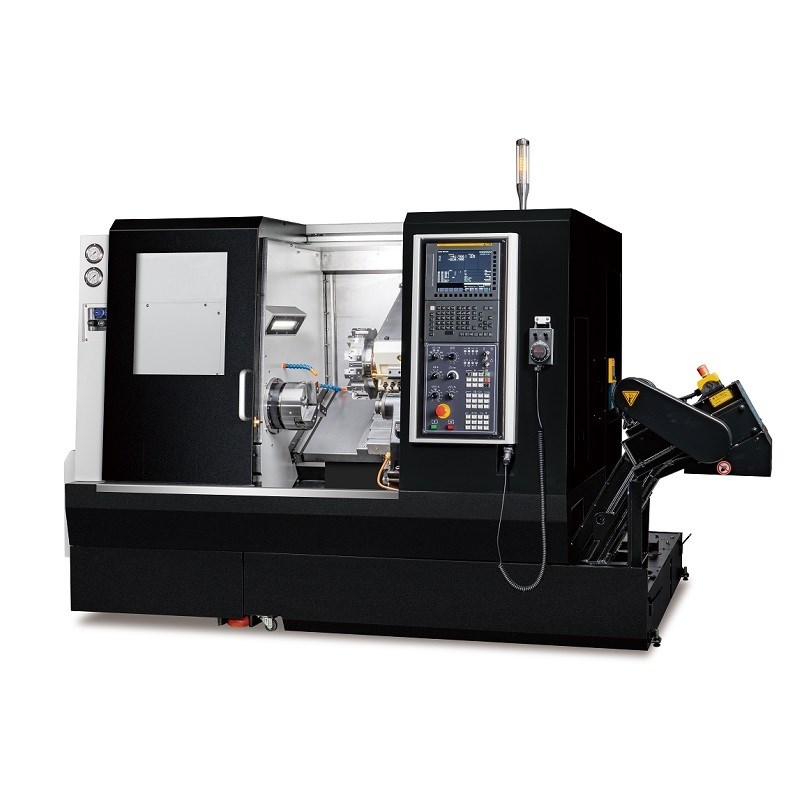

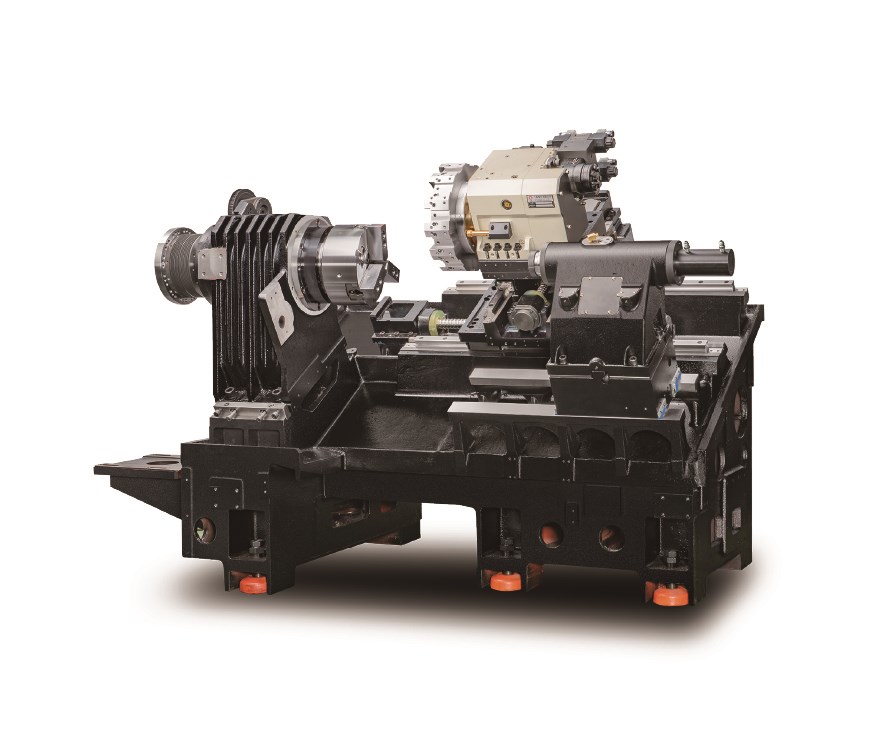

Manford SBL-8/SBL-8M CNC Turning Center
X Axis — 225+20 mm
Z Axis — 600/1000 mm
Spindle Speed — 3500 rpm
Spindle Nose Type — A2-8
Chuck Size — 10"/3 Jaws
| SPECIFICATION |
| MACHINE MODEL |
SBL-8 |
SBL-8M |
| CAPACITY |
| MAX. SWING OVER BED |
Ø650 mm |
| MAX. SWING OVER SADDLE |
Ø450 mm |
| MAX. TURNING DIAMETER |
450 mm |
420 mm |
| MAX. WORKING LENGTH |
600/1000 mm |
600/1000 mm |
| SPINDLE |
| SPINDLE NOSE TYPE |
A2-8 |
| MAX. SPINDLE SPEED |
3500 rpm |
| FRONT BEARING I.D OF SPINDLE |
Ø130 mm |
| SPINDLE BORE |
Ø92.2 mm |
| MAX. BAR CAPACITY |
Ø77 mm |
| CHUCK SIZE |
10"/3 Jaws |
| AXIS FEED |
| X AXIS TRAVEL |
225+20 mm |
| Z AXIS TRAVEL |
600/1000 mm |
| RAPID FEED - X / Z AXIS |
30 M/min |
| CUTTING FEED RATE |
10 M/min |
| TURRET |
| TYPE |
Servo |
Power |
| NUMBER OF TOOL STATIONS |
12 pcs |
| TOOL SHANK SIZE |
25 mm |
VDI 40 |
| MAX. BORING BAR DIA. |
Ø40 mm |
| TAIL STOCK |
| TAILSTOCK TRAVEL |
550/950 mm |
| QUILL DIA. |
Ø75 mm |
| QUILL TRAVEL |
75 mm |
| TAPER OF CENTER |
MT4 |
| TAILSTOCK ORIENTATION |
Manual |
| MOTOR |
| MAIN SPINDLE MOTOR POWER |
11/15 Kw |
| FEED MOTOR |
3 Kw |
| POWER TURRET MOTOR |
N/A |
3.7/5.5 |
| POWER REQUIREMENT |
30 KVA |
| UTILITY |
| HYDRAULIC TANK CAPACITY |
50 L |
| COOLANT TANK |
200 L |
| LUBRICATION TANK |
2 L |
| AIR SOURCE |
0.6 Mpa |
