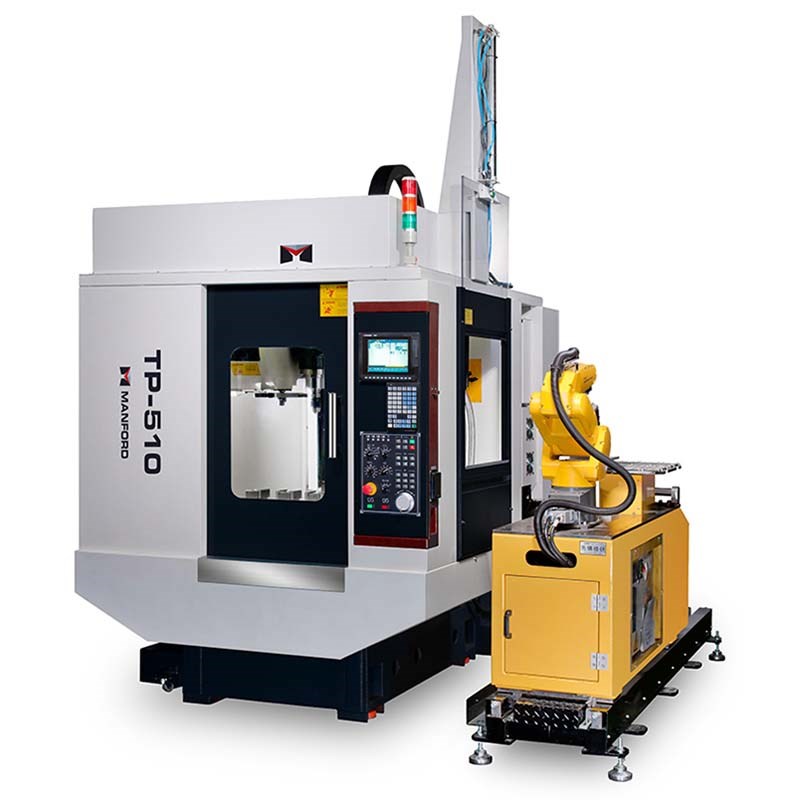

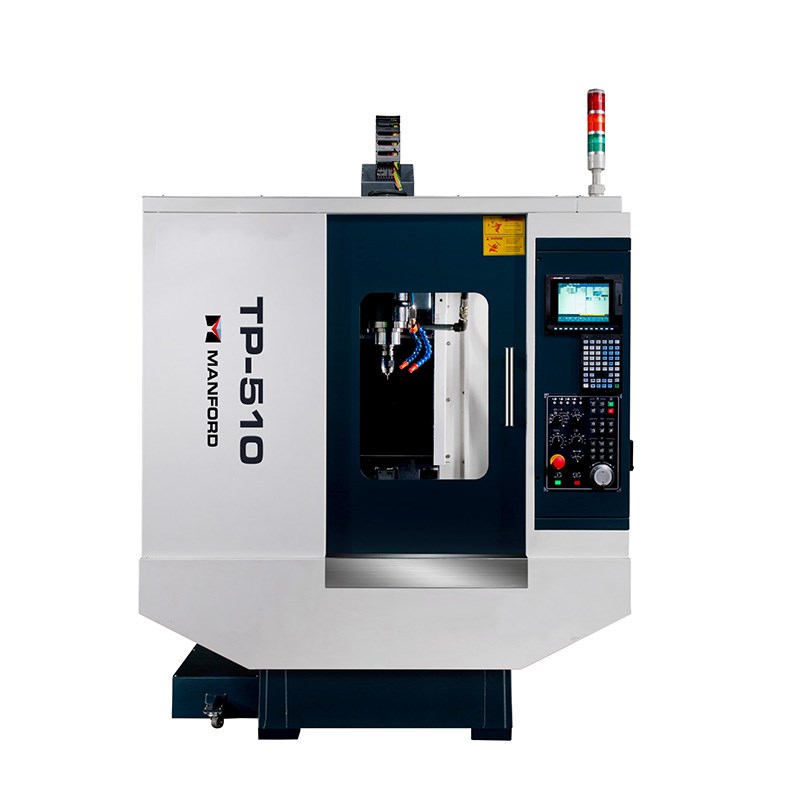

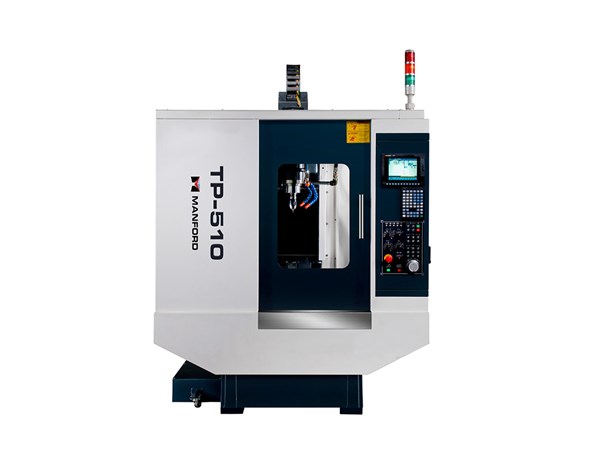

Manford TP-510 Drilling & Tapping Center

Homepage / Manford TP-510 Drilling & Tapping Center

X Axis — 510 mm

Y Axis — 400 mm

Z Axis — 330 mm

Spindle Speed — 10,000 ~ 24,000 rpm

Spindle Taper — BT30

SPECIFICATION
X TRAVEL	510 mm
Y TRAVEL	400 mm
Z TRAVEL	330 mm
SPINDLE NOSE TO TABLE SURFACE	200 ~ 530 mm
TABLE SIZE	650 x 400 mm
T-SLOT (Q'TY X SIZE X DIST)	3 x 14 x 125 mm
MAX. TABLE LOAD	250 kgs
SPINDLE TRANSMISSION	Direct type / Build-in type
SPINDLE TAPER	BT30
SPINDLE SPEED	10,000 ~ 24,000 rpm
SPINDLE MOTOR	2.2 / 3.7 kW
ATC TYPE	DISC type
ATC CAPACITY	14 / 21 tools
