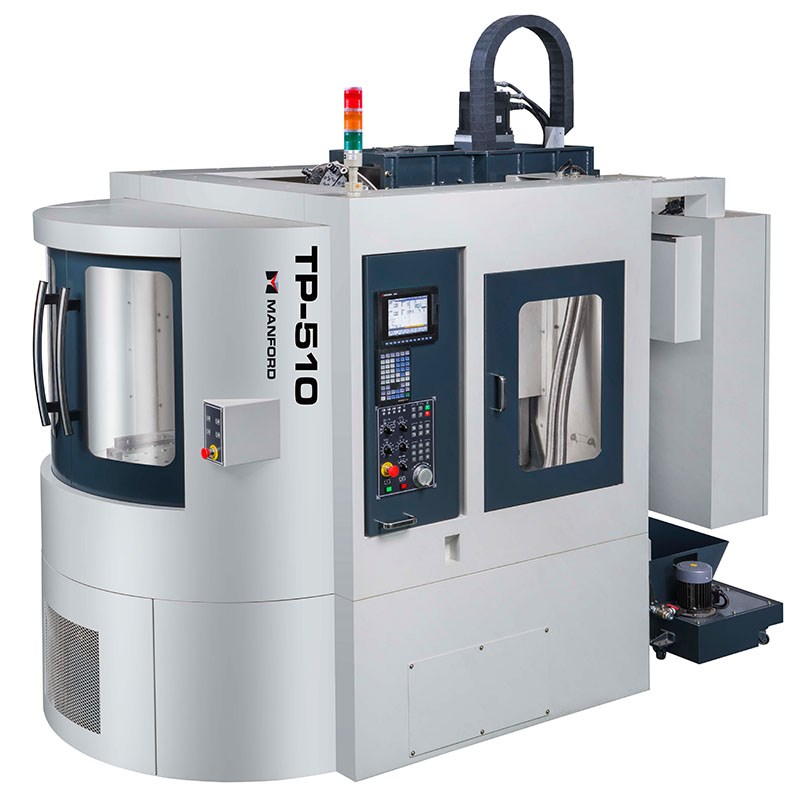

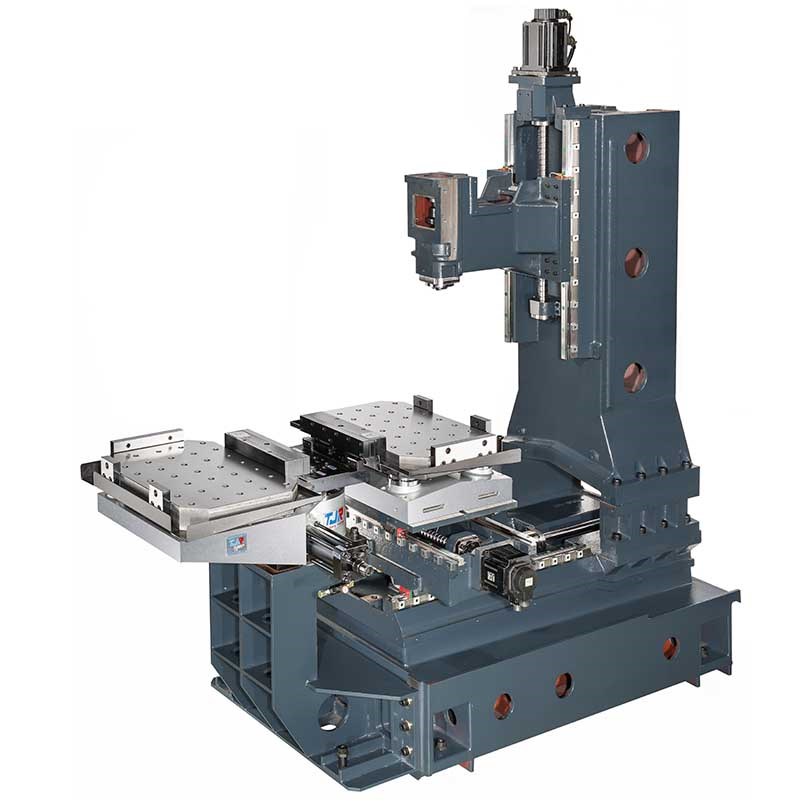

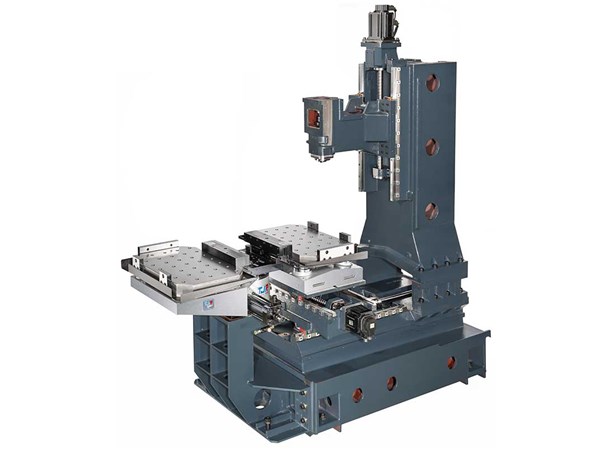

Manford TP-510APC Drilling & Tapping Center

Homepage / Manford TP-510APC Drilling & Tapping Center

X Axis — 510 mm

Y Axis — 400 mm

Z Axis — 330 mm

Spindle Speed — 10,000 rpm

Spindle Taper — BT30

SPECIFICATION
X TRAVEL	510 mm
Y TRAVEL	400 mm
Z TRAVEL	330 mm
SPINDLE NOSE TO TABLE SURFACE	200 ~ 530 mm

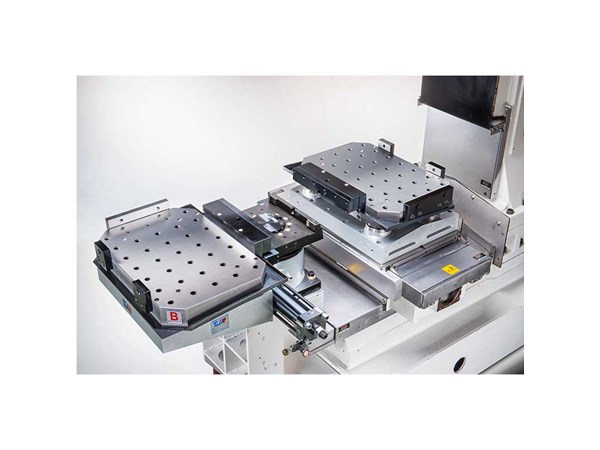

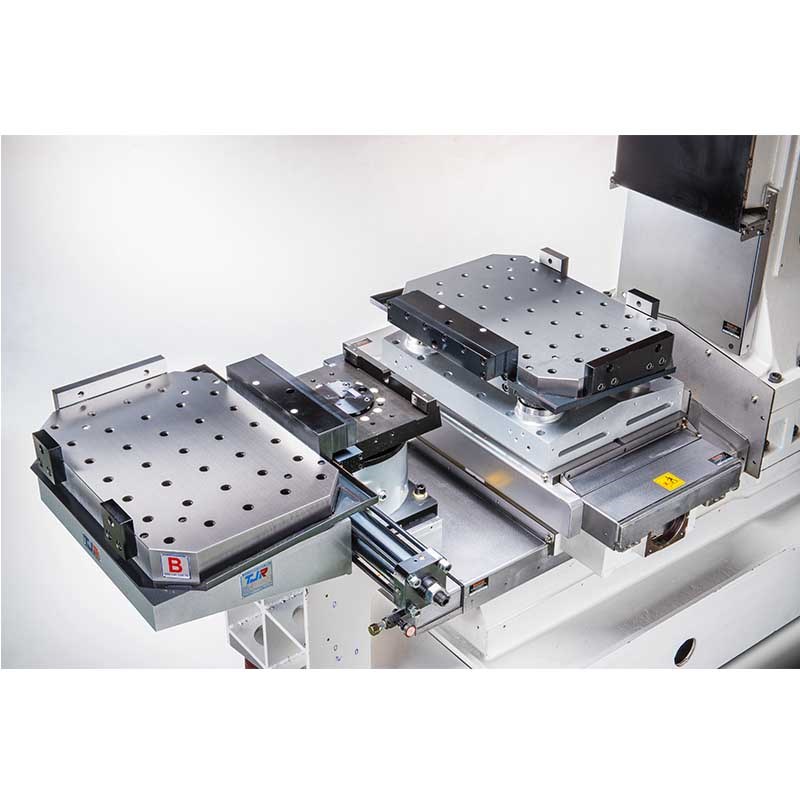

TABLE SIZE (APC)	600 × 400 mm ( 2 pcs )
T-SLOT (Q'TY X SIZE X DIST)	35 holes (M16 × P2.0)
TABLE LOAD CAPACITY	250kg*2pcs = 500kg
TABLE TRANSMISSION	Hydraulic / Servo (Opt.)
SPINDLE TRANSMISSION	Direct type
SPINDLE TAPER	BT30
SPINDLE SPEED	10,000 rpm
SPINDLE MOTOR	3.5 / 5.5 kW
ATC CAPACITY	14 tools
