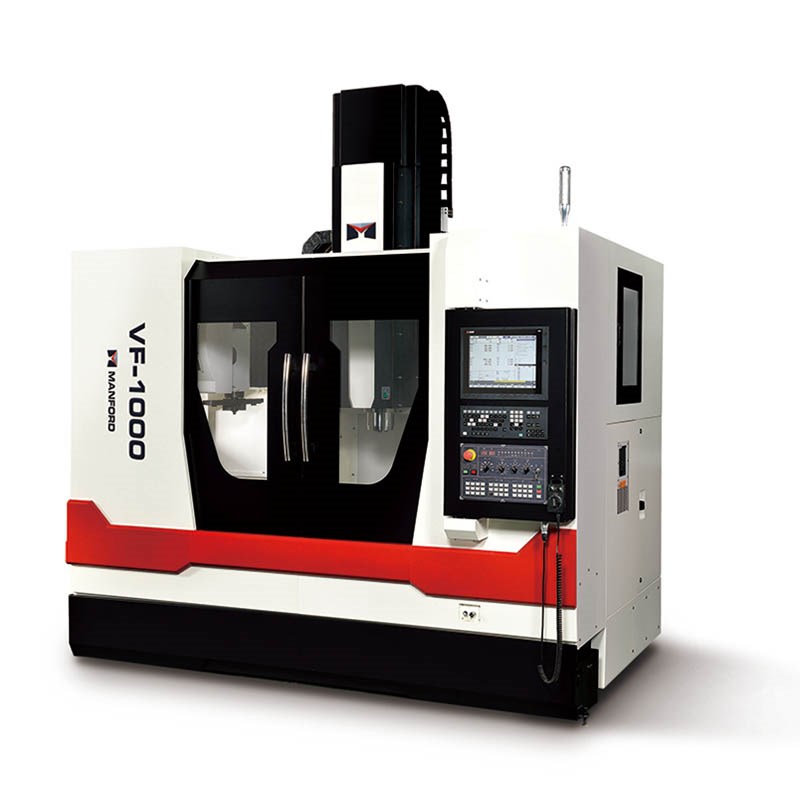

Manford VF-1000 Vertical Machining Center
Homepage
/
Manford VF-1000 Vertical Machining Center
Manford VF-1000 Vertical Machining Center
X Axis —
1020 mm
Y Axis —
610 mm
Z Axis —
510 mm
Spindle Speed —
12,000 rpm
Spindle Taper —
BT40
Get a Quote
Description
SPECIFICATION
XYZ LINEAR GUIDE WAYS
Roller type
X TRAVEL
1020 mm
Y TRAVEL
610 mm
Z TRAVEL
510 mm
SPINDLE NOSE TO TABLE SURFACE
150 ~ 660 mm
TABLE SIZE
1100 x 600 mm
T-SLOT (Q'TY X SIZE X DIST)
5 x 18 x 100 mm
TABLE LOAD CAPACITY
1000 kgs
SPINDLE TRANSMISSION
Direct type
SPINDLE TAPER
BT40
SPINDLE SPEED
12000 rpm
SPINDLE MOTOR
7.5 / 11 kW
ATC CAPACITY
24 tools
