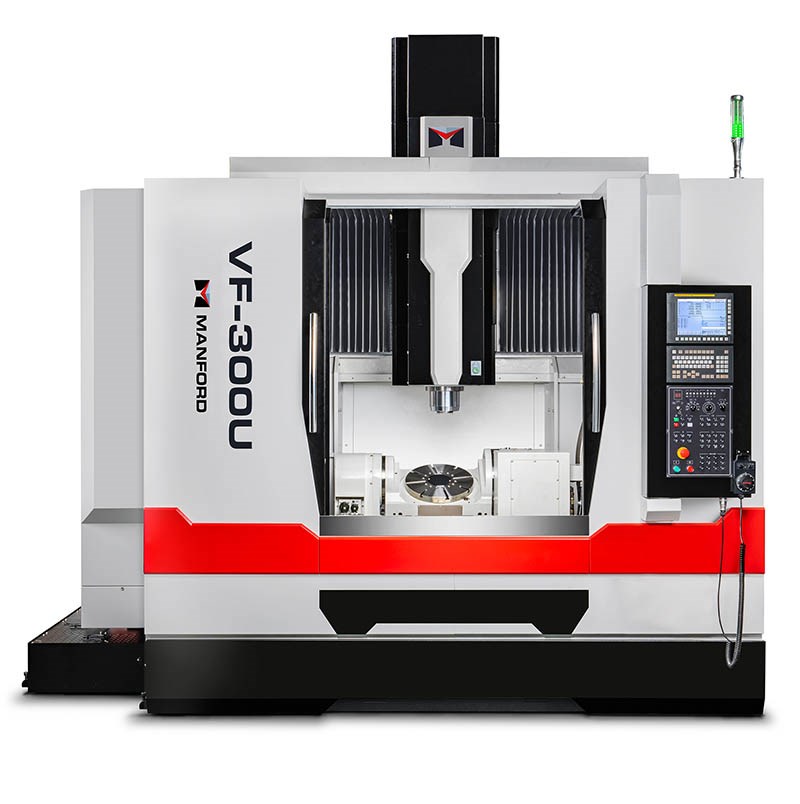

Manford VF-300U 5 Axis Machining Center

Homepage / Manford VF-300U 5 Axis Machining Center

X Axis — 1,020 mm

Y Axis — 610 mm

Z Axis — 510 mm

Spindle Speed — 12,000 rpm

Spindle Taper — BT40

SPECIFICATION
X TRAVEL	1,020 mm
Y TRAVEL	610 mm
Z TRAVEL	510 mm
SPINDLE NOSE TO TABLE SURFACE	100 ~ 610 mm
TABLE SIZE	Ø 350 mm
T-SLOT (Q'TY X SIZE X DIST)	8 x 12 x 45 mm
MAX. TABLE LOAD	Hotizontal 200 kgs / Tilting 200 kgs
ATC CAPACITY	24 tools
CNC CONTROL	Fanuc 0iMF
SPINDLE
SPINDLE TRANSMISSION	Direct type
SPINDLE TAPER	BT40
SPINDLE SPEED	12,000 rpm
SPINDLE POWER	7.5 / 11 kW
ROTARY TABLE ( A/C AXIS )
A AXIS TILTING RANGE	-120˚ ~ +30˚
C AXIS ROTATING RANGE	360˚
