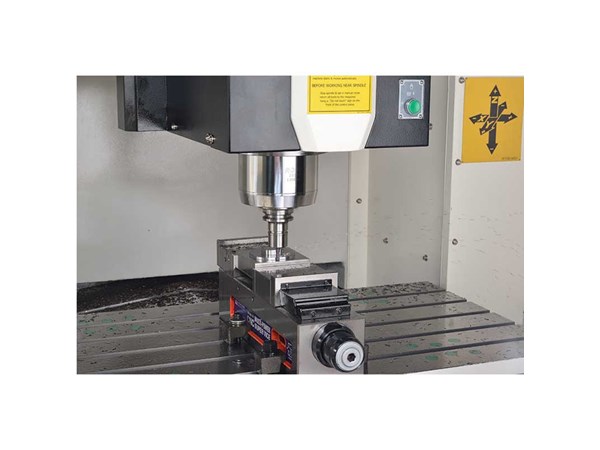

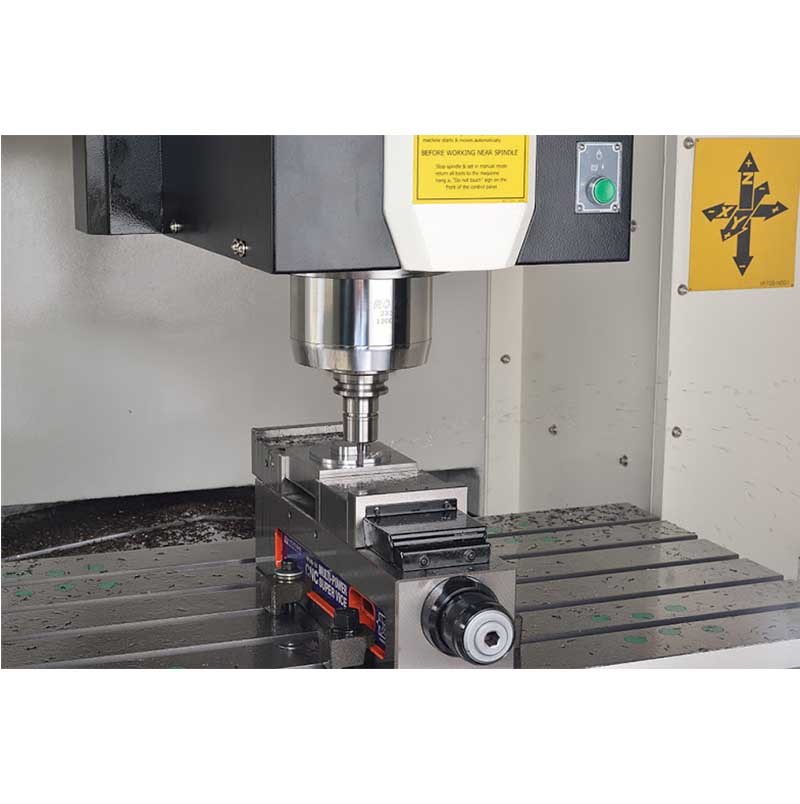

Manford VF-700 Vertical Machining Center

Homepage / Manford VF-700 Vertical Machining Center

X Axis — 700 mm

Y Axis — 510 mm

Z Axis — 410 mm

Spindle Speed — 12,000 rpm

Spindle Taper — BT40

SPECIFICATION
XYZ LINEAR GUIDE WAYS	Roller type
X TRAVEL	700 mm
Y TRAVEL	510 mm
Z TRAVEL	410 mm
SPINDLE NOSE TO TABLE SURFACE	150 ~ 560 mm
TABLE SIZE	800 x 510 mm
T-SLOT (Q'TY X SIZE X DIST)	5 x 18 x 100 mm
TABLE LOAD CAPACITY	500 kgs
SPINDLE TRANSMISSION	Direct type
SPINDLE TAPER	BT40
SPINDLE SPEED	12000 rpm
SPINDLE MOTOR	7.5 / 11 kW
ATC CAPACITY	16 tools
