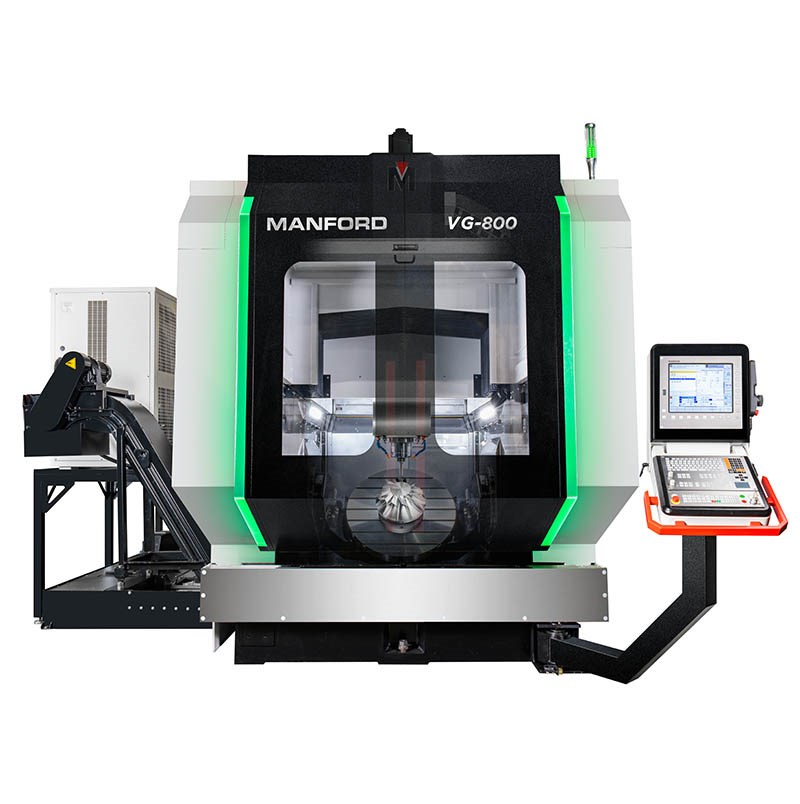

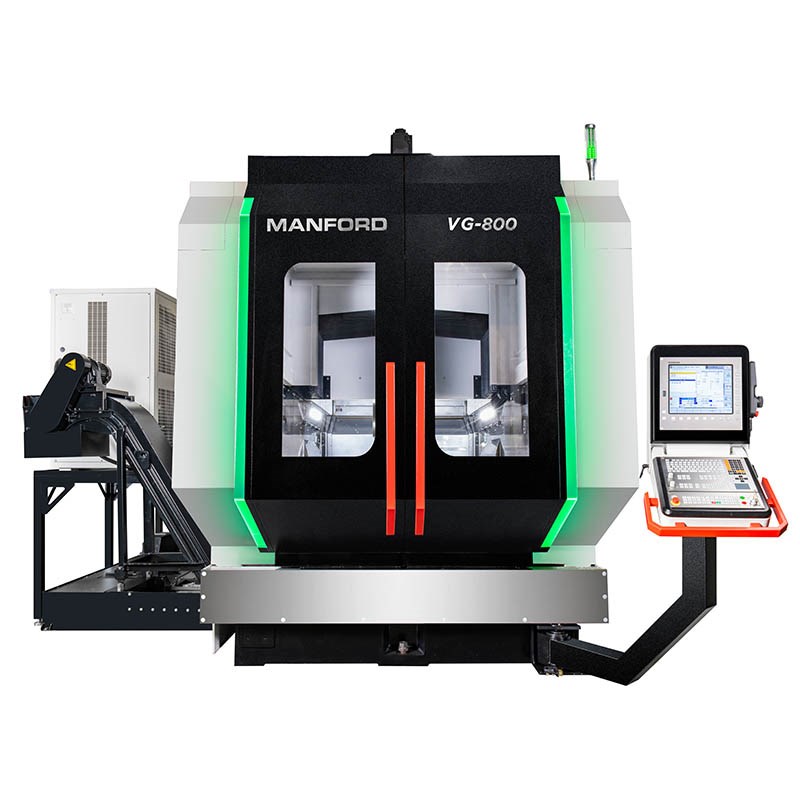

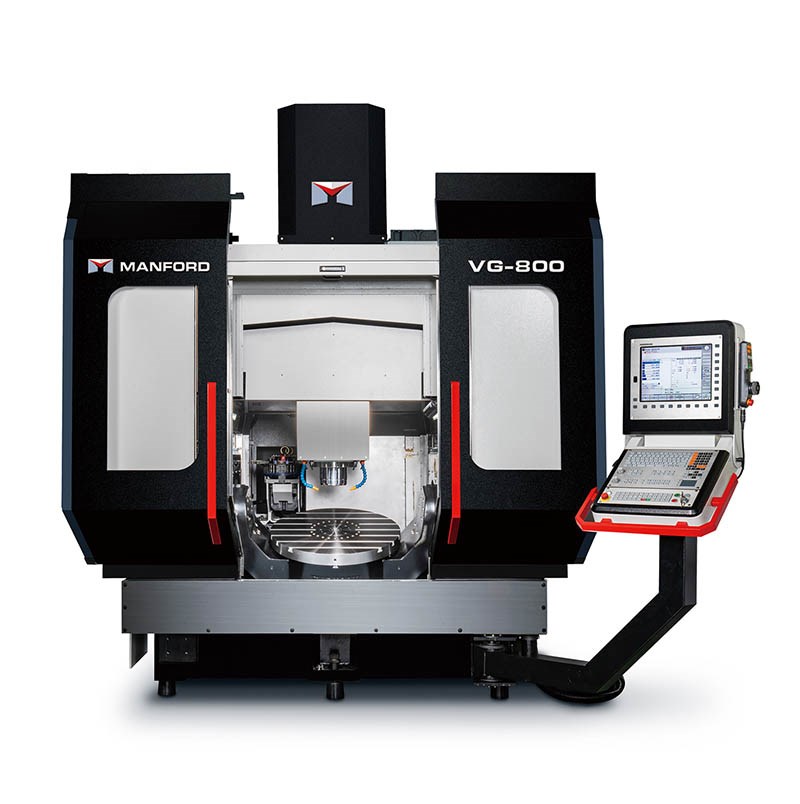

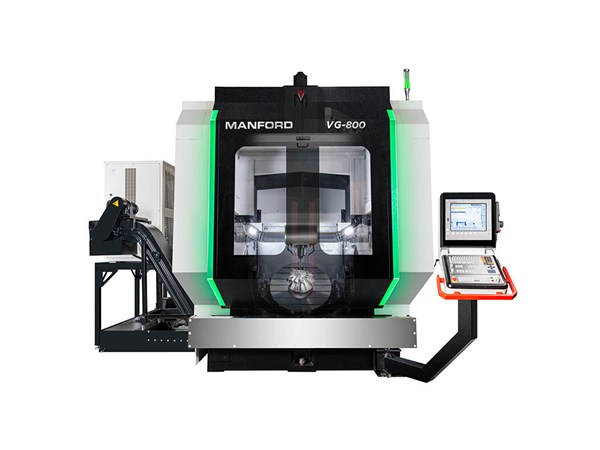

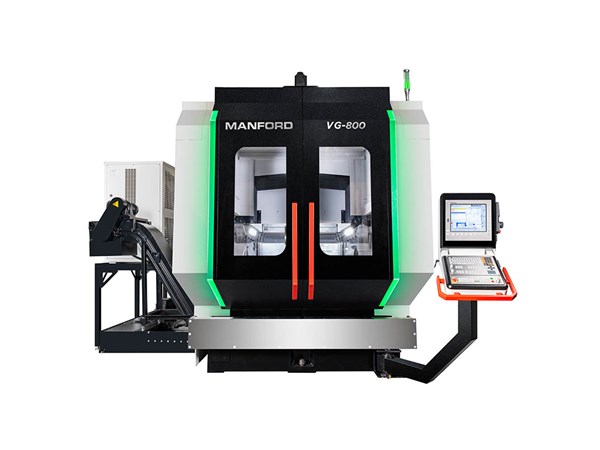

Manford VG-800 5 Axis Machining Center

Homepage / Manford VG-800 5 Axis Machining Center

X Axis — 800 mm

Y Axis — 1,245 mm ( -510 ~ +390 +345 Tool change travel )

Z Axis — 620 mm

Spindle Speed — 12,000 rpm

Spindle Taper — HSK-A63

SPECIFICATION
X TRAVEL	800 mm
Y TRAVEL	1,245 mm ( -510 ~ +390 +345 Tool change travel )
Z TRAVEL	620 mm
SPINDLE NOSE TO TABLE SURFACE	100 ~ 720 mm
TABLE SIZE	Ø 800 mm
T-SLOT (Q'TY X SIZE X DIST)	7 x 14 x 100 mm
MAX. TABLE LOAD	1,000 kgs ( Horizontal ) / 500 kgs ( Tilting )
ATC CAPACITY	32tools
CNC CONTROL	Heidenhain TNC640
CNC CONTROL	Siemens 840D
SPINDLE
SPINDLE TRANSMISSION	Build-in
SPINDLE TAPER	HSK-A63
SPINDLE SPEED	12,000 rpm
SPINDLE POWER	21 / 25 kW
ROTARY TABLE ( A/C AXIS )
A AXIS TILTING RANGE	-120˚ ~ +30˚
C AXIS ROTATING RANGE	360˚
