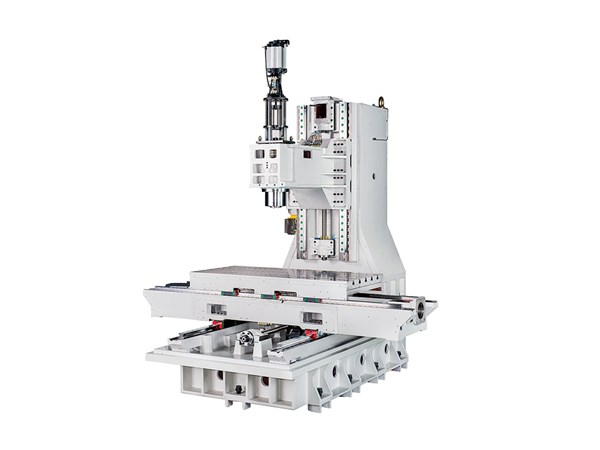

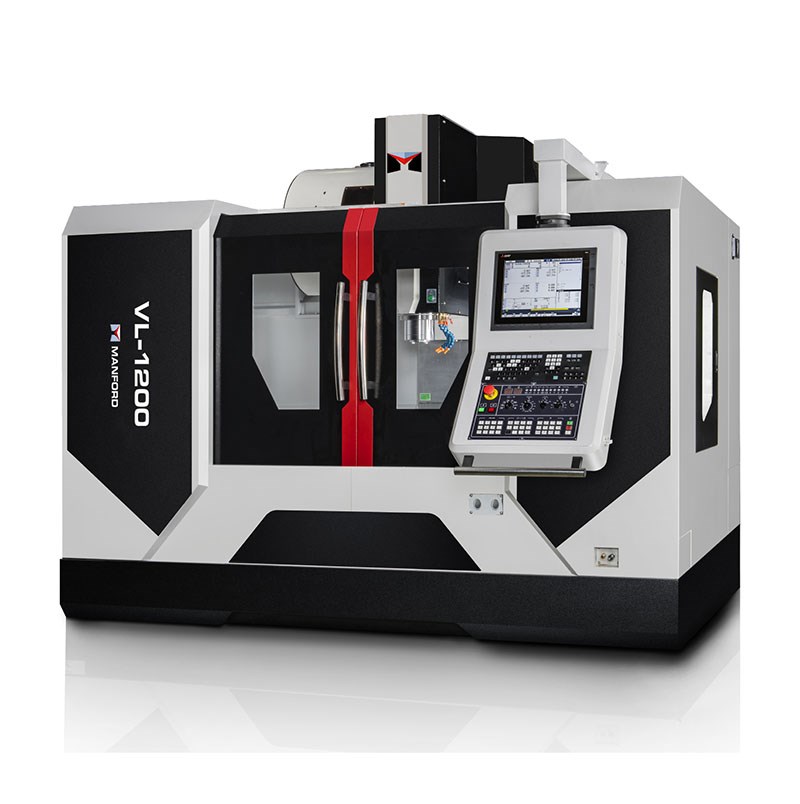

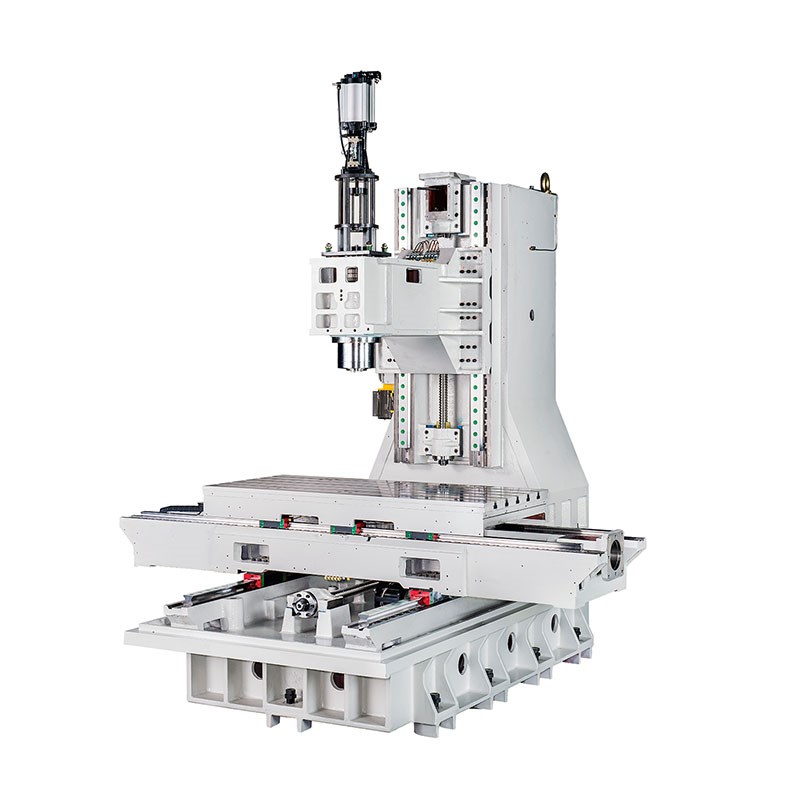

Manford VL-1200 Vertical Machining Center
Homepage
/
Manford VL-1200 Vertical Machining Center
Manford VL-1200 Vertical Machining Center
X Axis —
1,200 mm
Y Axis —
610 mm
Z Axis —
610 mm
Spindle Speed —
8,000 rpm
Spindle Taper —
BT40
Get a Quote
Description
SPECIFICATION
X TRAVEL
1,200 mm
Y TRAVEL
610 mm
Z TRAVEL
610 mm
SPINDLE NOSE TO TABLE SURFACE
150 ~ 760 mm
TABLE SIZE
1,300 x 600 mm
T-SLOT (Q'TY X SIZE X DIST)
5 x 18 x 100 mm
MAX. TABLE LOAD
1,200 kgs
CNC CONTROL
Mitsubishi / Fanuc / Siemens / Heidenhain / Fagor
SPINDLE
SPINDLE TRANSMISSION
Belt type
SPINDLE TAPER
BT40
SPINDLE SPEED
8,000 rpm
SPINDLE MOTOR
7.5 / 11 kW
OTHER ITEMS
ATC CAPACITY
ATC Genoa type 20 tools / Arm type 24 tools
