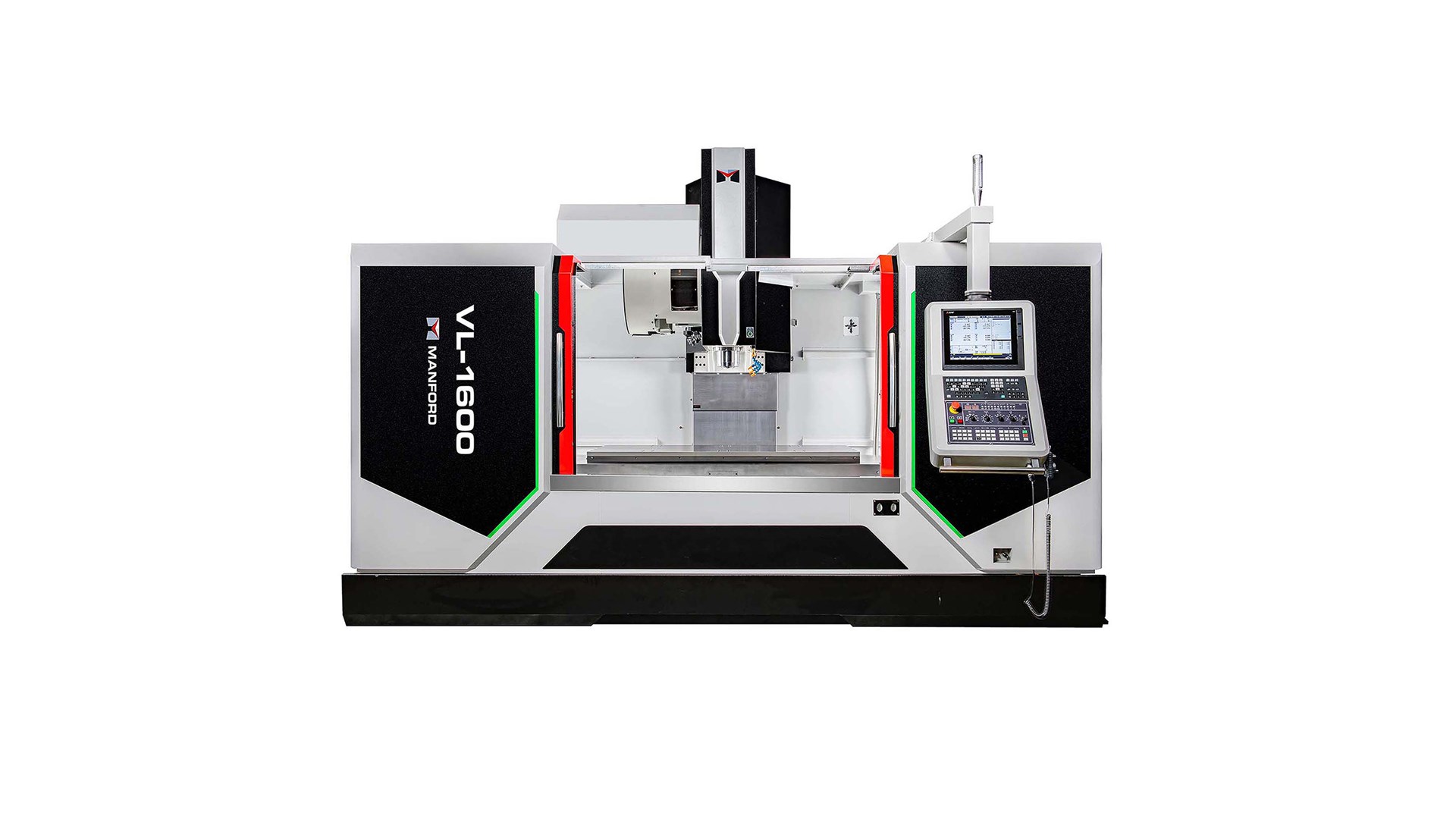

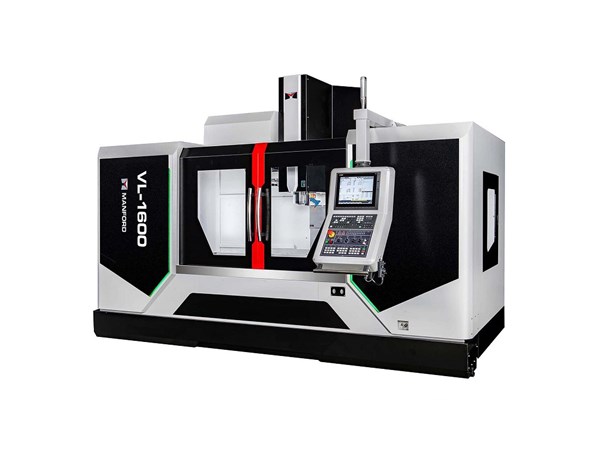

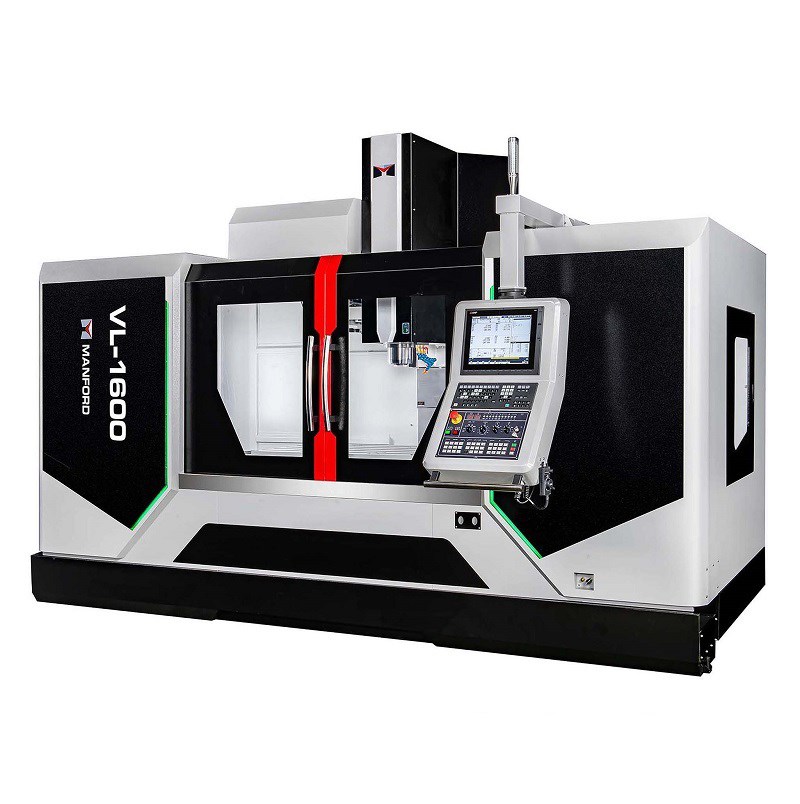

Manford VL-1600 Vertical Machining Center
Homepage
/
Manford VL-1600 Vertical Machining Center
Manford VL-1600 Vertical Machining Center
X Axis —
1,600 mm
Y Axis —
700 mm
Z Axis —
700 mm
Spindle Speed —
8,000 rpm
Spindle Taper —
BT40
Get a Quote
Description
SPECIFICATION
X TRAVEL
1,600 mm
Y TRAVEL
700 mm
Z TRAVEL
700 mm
SPINDLE NOSE TO TABLE SURFACE
BT40：130 ~ 830 mm / BT50：100 ~ 800 mm
TABLE SIZE
1,750 x 700 mm
T-SLOT (Q'TY X SIZE X DIST)
5 x 18 x 125 mm
MAX. TABLE LOAD
1,500 kgs
CNC CONTROL
Mitsubishi / Fanuc / Siemens / Heidenhain / Fagor
SPINDLE
SPINDLE TRANSMISSION
Belt type
SPINDLE TAPER
BT40 / BT50
SPINDLE SPEED
BT40：8,000 rpm / BT50：6,000 rpm
SPINDLE MOTOR
7.5 / 11 kW
OTHER ITEMS
ATC CAPACITY
ATC Genoa type 20 tools / Arm type 24 tools
