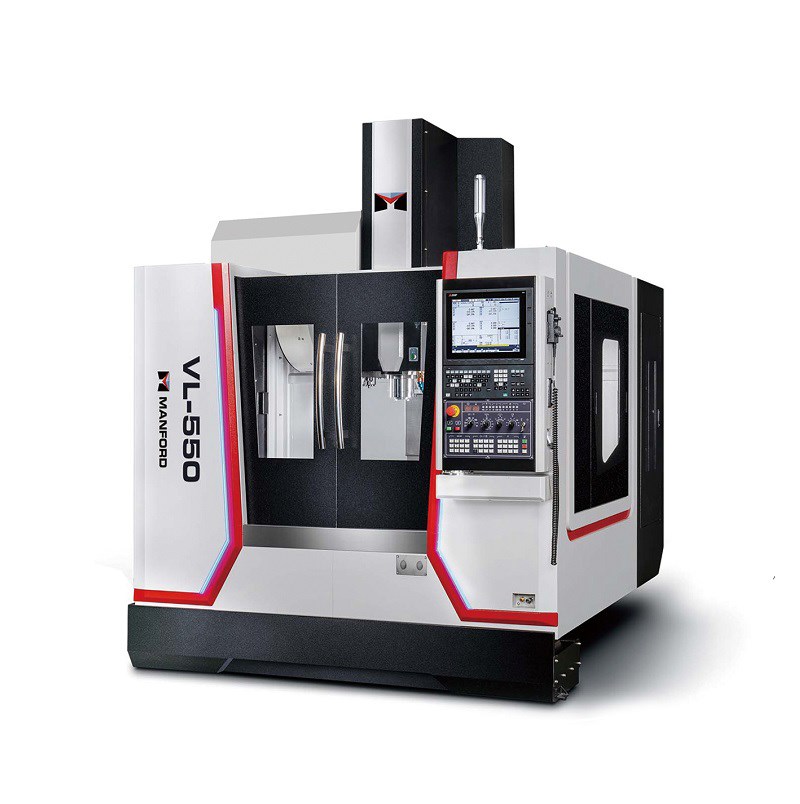

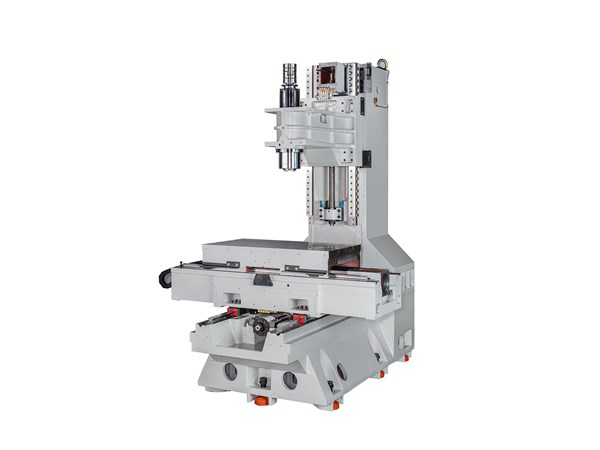

Manford VL-550 Vertical Machining Center
Homepage
/
Manford VL-550 Vertical Machining Center
Manford VL-550 Vertical Machining Center
X Axis —
550 mm
Y Axis —
410 mm
Z Axis —
460 mm
Spindle Speed —
10,000 rpm
Spindle Taper —
BT40
Get a Quote
Description
SPECIFICATION
X TRAVEL
550 mm
Y TRAVEL
410 mm
Z TRAVEL
460 mm
SPINDLE NOSE TO TABLE SURFACE
130 ~ 590 mm
TABLE SIZE
600 x 320 mm
T-SLOT (Q'TY X SIZE X DIST)
3 x 14 x 100 mm
MAX. TABLE LOAD
350 kgs
CNC CONTROL
Mitsubishi / Fanuc / Siemens / Heidenhain / Fagor
SPINDLE
SPINDLE TRANSMISSION
Belt type
SPINDLE TAPER
BT40
SPINDLE SPEED
10,000 rpm
OTHER ITEMS
ATC CAPACITY
ATC Genoa type 16 tools / Arm type 24 tools for maximum
