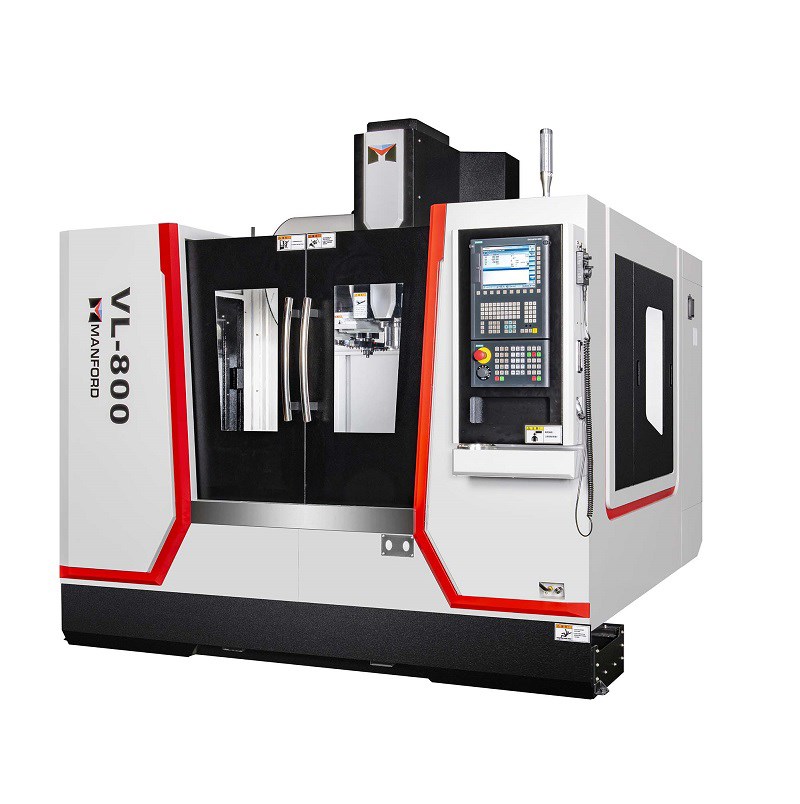

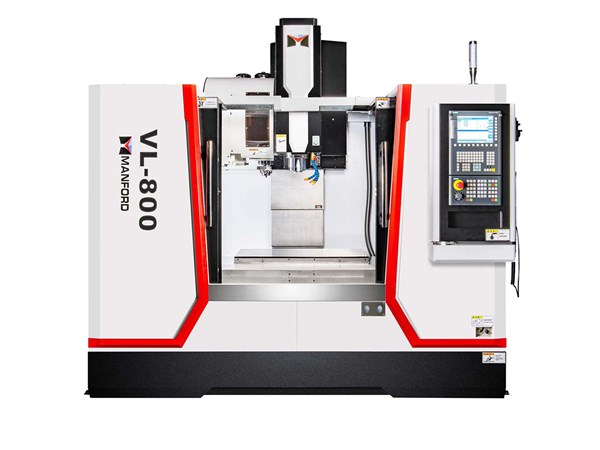

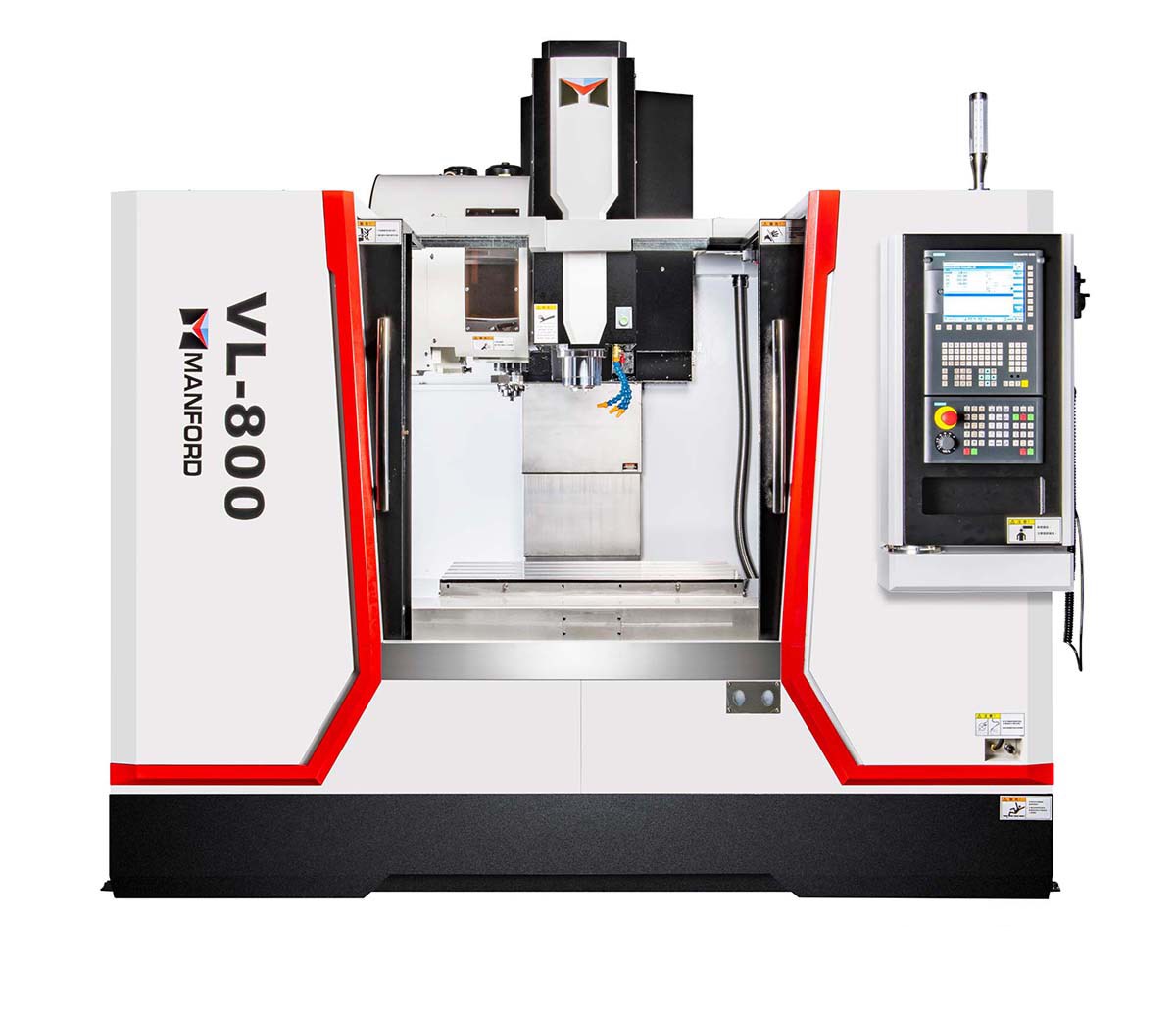

Manford VL-800 Vertical Machining Center
Homepage
/
Manford VL-800 Vertical Machining Center
Manford VL-800 Vertical Machining Center
X Axis —
850 mm
Y Axis —
510 mm
Z Axis —
510 mm
Spindle Speed —
10,000 rpm
Spindle Taper —
BT40
Get a Quote
Description
SPECIFICATION
X TRAVEL
850 mm
Y TRAVEL
510 mm
Z TRAVEL
510 mm
SPINDLE NOSE TO TABLE SURFACE
140 ~ 650 mm
TABLE SIZE
950 x 500 mm
T-SLOT (Q'TY X SIZE X DIST)
5 x 18 x 100 mm
MAX. TABLE LOAD
400 kgs
CNC CONTROL
Mitsubishi / Fanuc / Siemens / Heidenhain / Fagor
SPINDLE
SPINDLE TRANSMISSION
Belt type
SPINDLE TAPER
BT40
SPINDLE SPEED
10,000 rpm
SPINDLE MOTOR
5.5 / 7.5 kW
OTHER ITEMS
ATC CAPACITY
ATC Genoa type 16 tools / Arm type 24 tools for maximum
