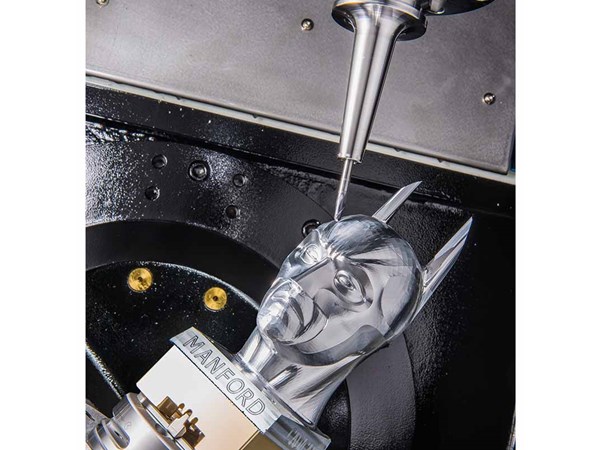

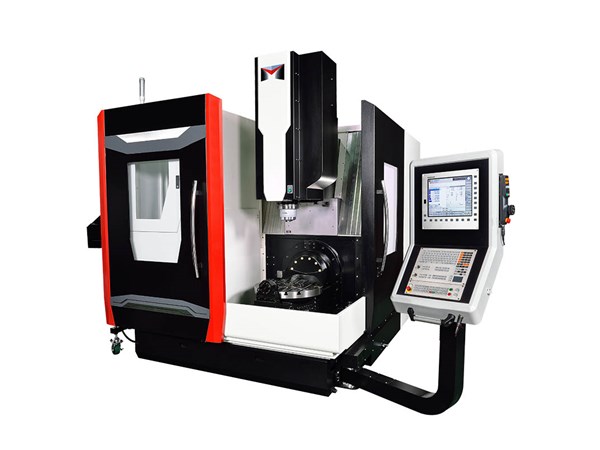

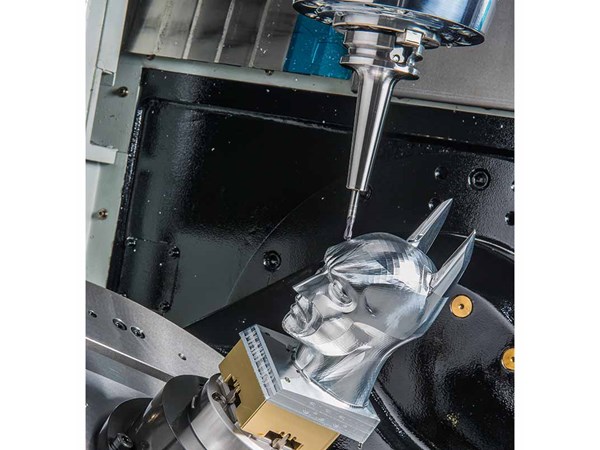

Manford VU-620 5 Axis Machining Center
Homepage
/
Manford VU-620 5 Axis Machining Center
Manford VU-620 5 Axis Machining Center
X Axis —
620 mm
Y Axis —
520 mm
Z Axis —
460 mm
Spindle Speed —
12,000 rpm
Spindle Taper —
BBT40
Get a Quote
Description
SPECIFICATION
X TRAVEL
620 mm
Y TRAVEL
520 mm
Z TRAVEL
460 mm
SPINDLE NOSE TO TABLE SURFACE
150 ~ 610 mm
TABLE SIZE
Ø 650 mm
T-SLOT (Q'TY X SIZE X DIST)
5 x 18 x 100 mm
MAX. TABLE LOAD
Horizontal 300 kgs / Tilting 200 kgs
ATC CAPACITY
32 tools
CNC CONTROL
Heidenhain TNC640
Siemens 840D
SPINDLE
TRANSMISSION
Direct type
SPINDLE TAPER
BBT40
SPINDLE SPEED
12,000 rpm
SPINDLE POWER
(S1 100% / S6 60% / S6 40%)
10 / 12.5 kW *
ROTARY TABLE (B/C AXIS)
C AXIS ROTATING RANGE
-50˚ ~ + 110˚
C AXIS ROTATING RANGE
360˚
