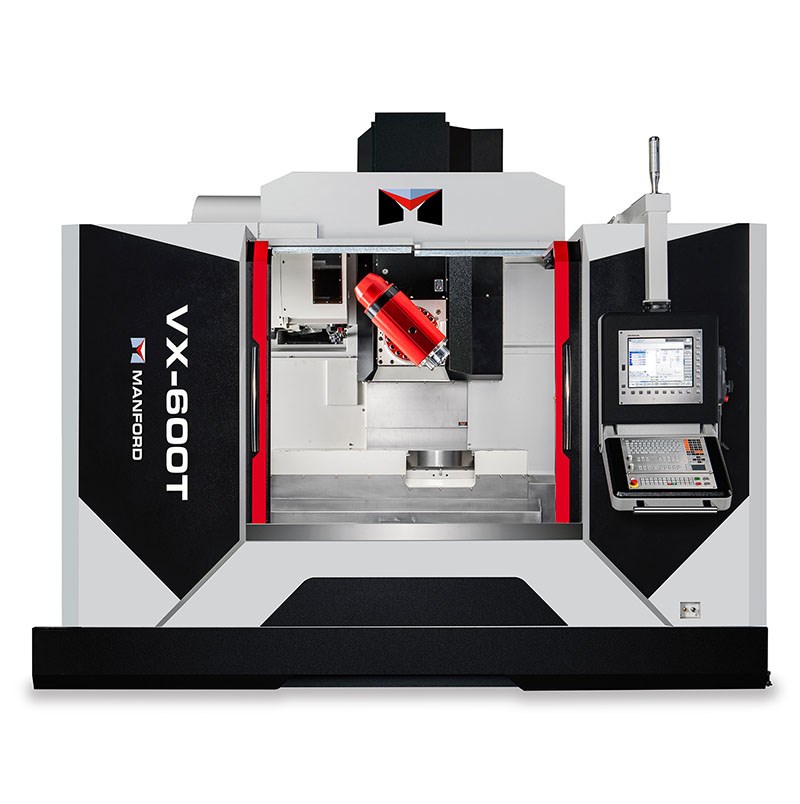

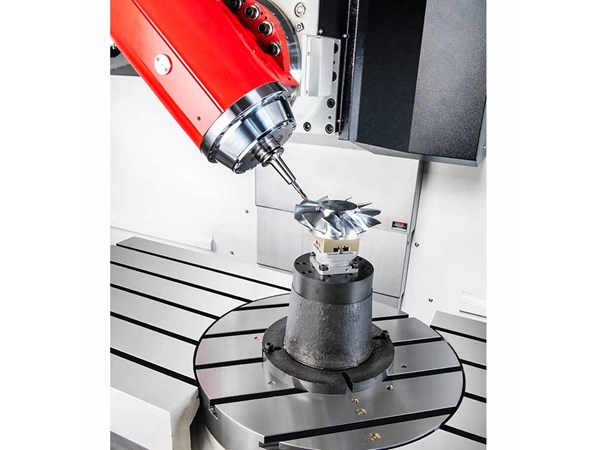

Manford VX-600T 5 Axis Machining Center

Homepage / Manford VX-600T 5 Axis Machining Center

X Axis — 1,300 mm

Y Axis — 700 mm

Z Axis — 700 mm

Tilting Angle — -120° ~ + 30°

Spindle Speed — 12,000 rpm

Spindle Taper — HSK-T63

SPECIFICATION
X TRAVEL	1,300 mm
Y TRAVEL	700 mm
Z TRAVEL	700 mm
SPINDLE NOSE TO TABLE SURFACE	20 ~ 720 mm
TABLE SIZE	700 x 1,450 mm
T-SLOT (Q'TY X SIZE X DIST)	5 x 18 x 125 mm
MAX. TABLE LOAD	600 kgs
ATC CAPACITY	24 / 30 / 32 / 40 tools
CNC CONTROL	Heidenhain TNC640
CNC CONTROL	Siemens ONE

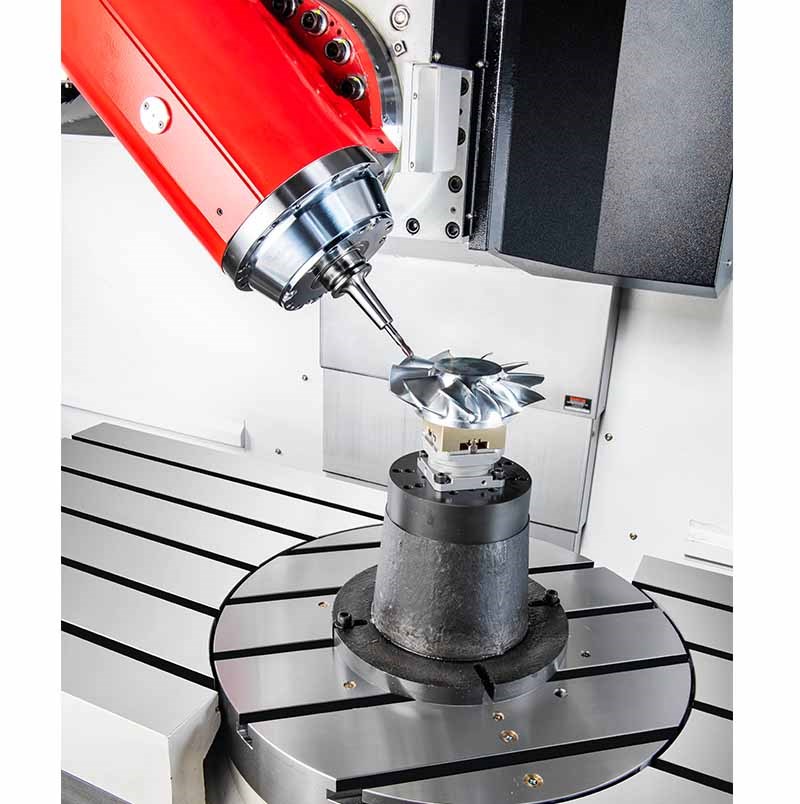

TILTING SPINDLE HEAD (B AXIS)
TRANSMISSION	Worm gear
TILTING ANGLE	-120˚ ~ +30˚
SPINDLE TRANSMISSION	Build-in
SPINDLE TAPER	HSK-T63
SPINDLE SPEED	12,000 rpm
SPINDLE POWER (S1 100% / S6 60% / S6 40%)	21 ~ 25 kW
ROTARY TABLE (C AXIS)
TRANSMISSION	DD motor
TABLE DIAMETER	Ø 630 mm
C AXIS ROTATING RANGE	360˚
MAX. SPEED	1,200 rpm
