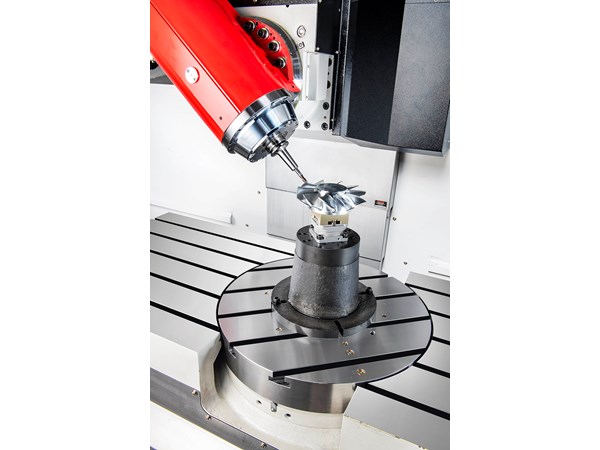

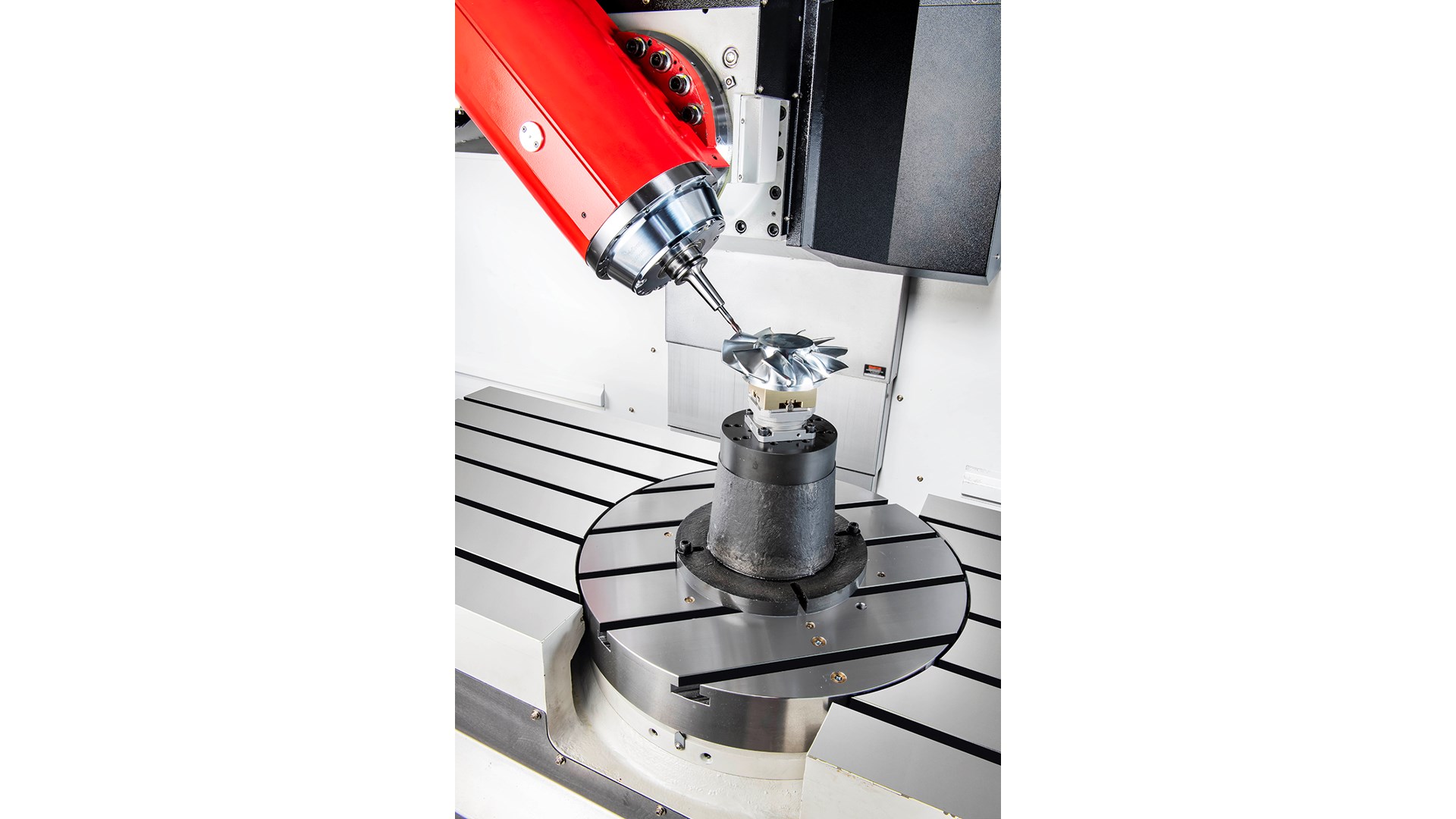

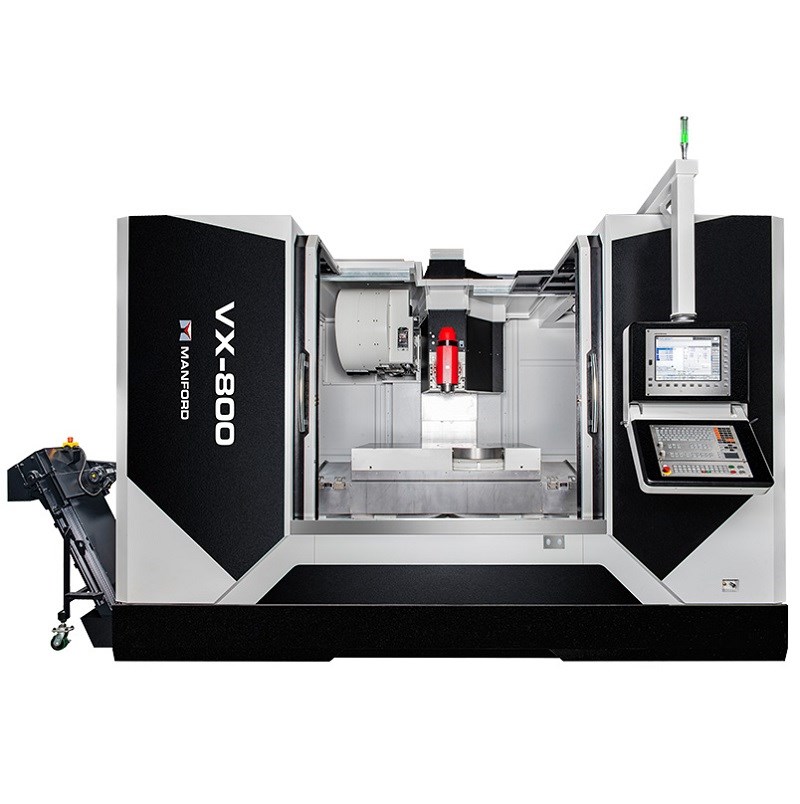

Manford VX-800 5 Axis Machining Center

Homepage / Manford VX-800 5 Axis Machining Center

X Axis — 1,600 mm

Y Axis — 900 mm

Z Axis — 850 mm

Tilting Angle — -120˚ ~ +30˚

Spindle Speed — 15,000 rpm

Spindle Taper — BBT40

SPECIFICATION
X TRAVEL	1,600 mm
Y TRAVEL	900 mm
Z TRAVEL	850 mm
SPINDLE NOSE TO TABLE SURFACE	20 ~ 870 mm
TABLE SIZE	850 x 1,800 mm
T-SLOT (Q'TY X SIZE X DIST)	5 x 22 x 150 mm
MAX. TABLE LOAD	1,500 kgs
ATC CAPACITY	24 / 30 / 32 / 40 tools
CNC CONTROL	Heidenhain TNC640
CNC CONTROL	Siemens ONE
TILTING SPINDLE HEAD (B AXIS)
TRANSMISSION	Worm gear
TILTING ANGLE	-120˚ ~ +30˚
SPINDLE TRANSMISSION	Build-in
SPINDLE TAPER	BBT40
SPINDLE SPEED	15,000 rpm
SPINDLE POWER (S1 100% / S6 60% / S6 40%)	21 ~ 25 kW
ROTARY TABLE (C AXIS)
TRANSMISSION	DD motor
TABLE DIAMETER	Ø 800 mm
C AXIS ROTATING RANGE	360˚
MAX. SPEED	60 rpm
