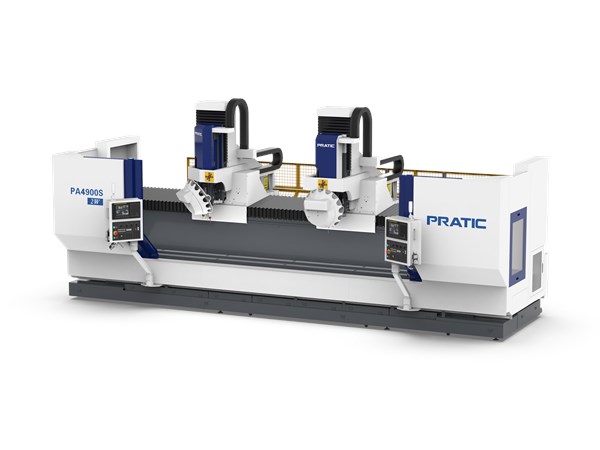

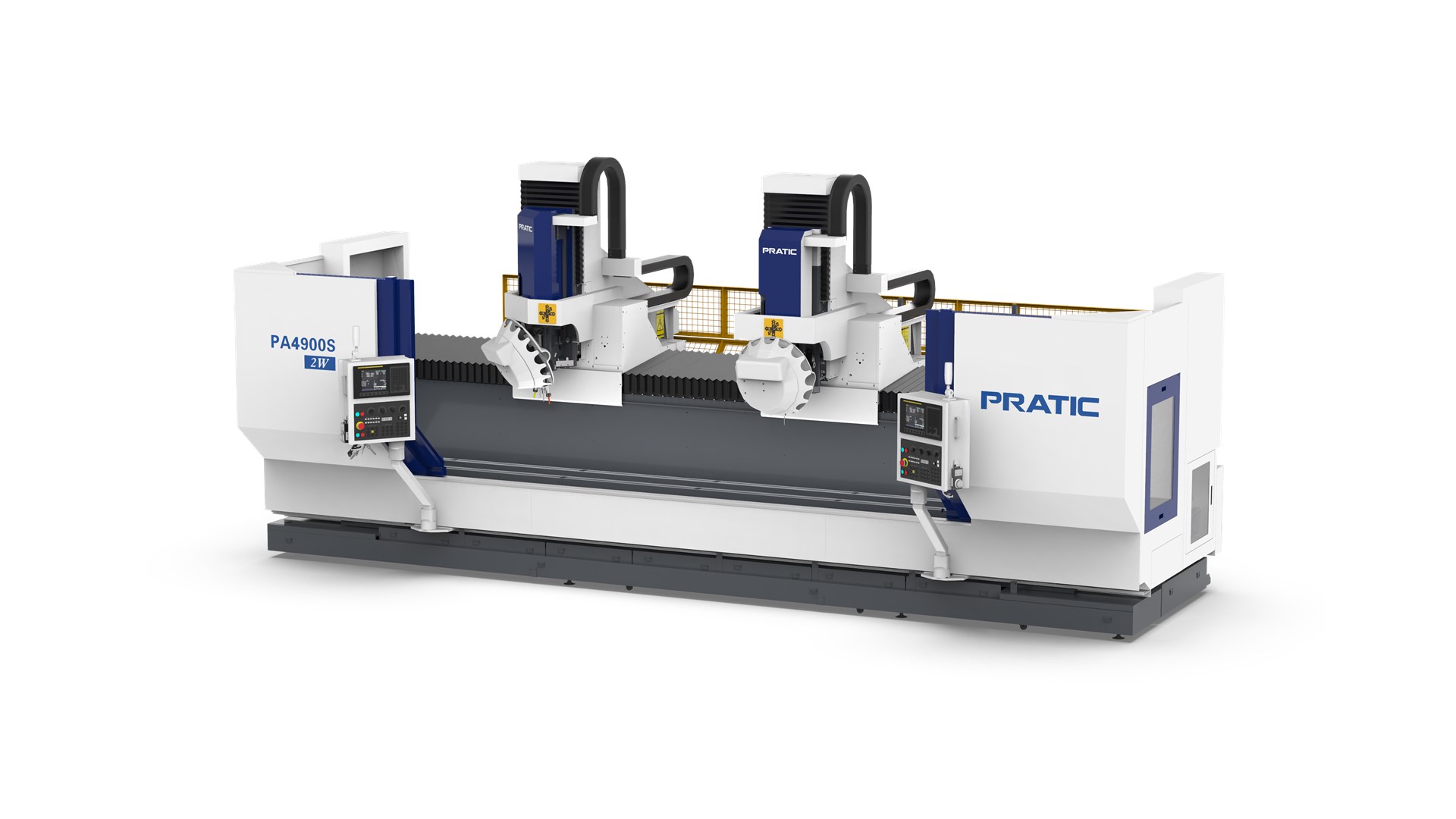

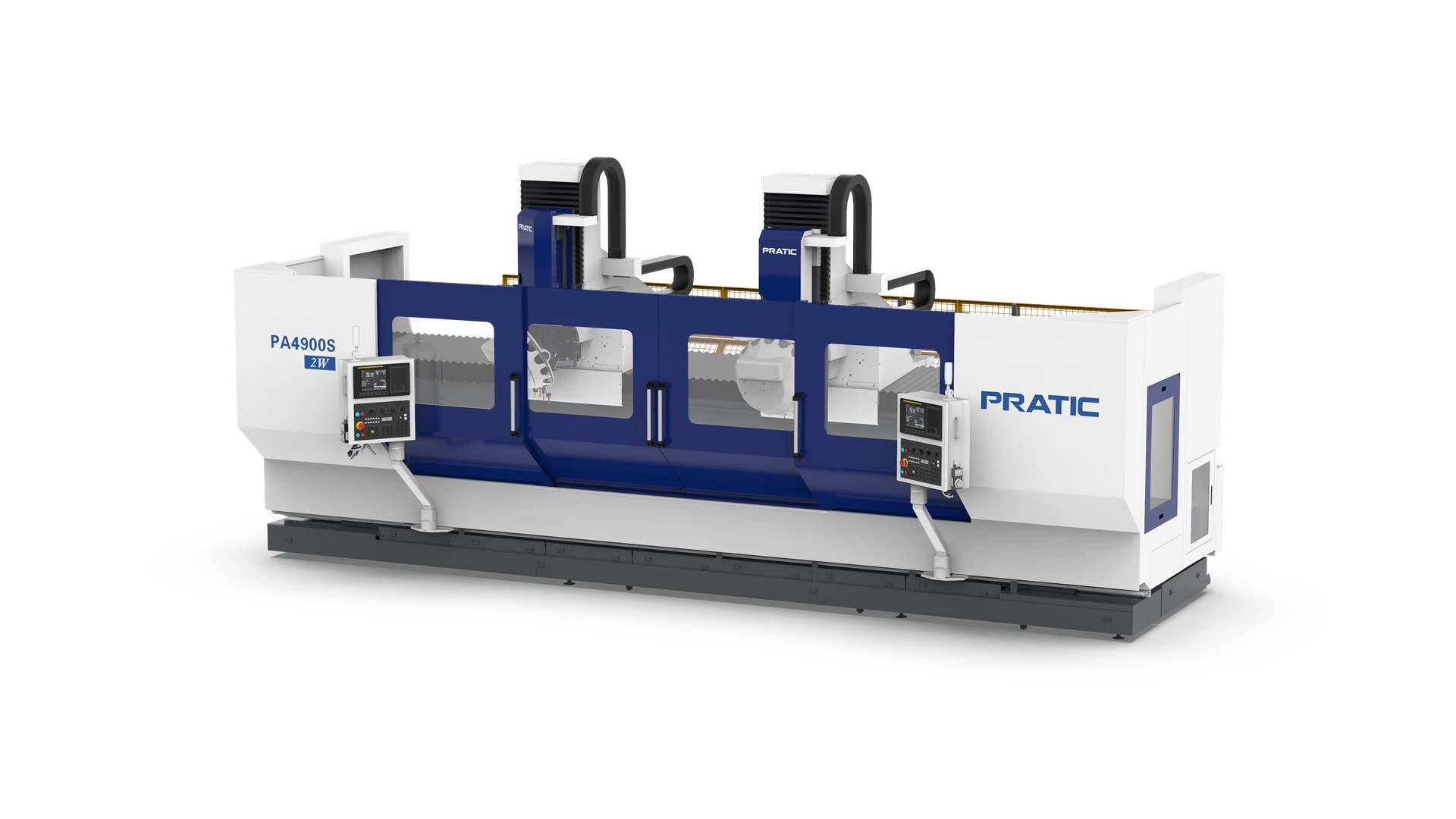

Pratic PA Double Head Profile Machining Center

Homepage / Pratic PA Double Head Profile Machining Center

X-Axis — 2050(Left/Right Head) mm

Y-Axis — 400 mm

Z-Axis — 400 mm

Max Spindle Speed — 12000 rpm

Spindle Taper — BT30/SK30/CAT30

TRAVELS	PA4900S-2W
X-Axis	2050(Left/Right Head) mm
Y-Axis	400 mm
Z-Axis	400 mm
SPINDLE
Spindle speed	12000 rpm
Spindle taper	BT30/SK30/CAT30
TOOL MAGAZINE
Type	UFO-type magazine
Max.pockets of tool magazine	16/21 pcs
Max.tool diameter(full adjacent pockets) length/weight	φ60mm/250mm/3 kg
Tool change time (tool to tool)	3 sec
AXIS FEED RATES
Rapid on X	50 m/min
Rapid on Y/Z	36/36 m/min
X/Y/Z Cutting feed rate	15000 mm/min
CNC SYSTEM	FANUC	SIEMENS
MOTOR POWER
Spindle power	5.5/11 kW	7.5/16.2 kW
X/Y/Z-Axis Drive motor	3.0/3.0/3.0 kW	3.5/3.5/3.5 kW
LUBRICATION AND COOLING SYSTEM
Lubrication system	Automatic
Coolant system	Water cooling
ACCURACY
X-Axis Positioning accuracy	0.02 mm
Y/Z-Axis Positioning accuracy	0.015 mm
X/Y/Z-Axis Repeatability accuracy	0.01 mm
MECHANICAL SPECIFICATION
Required pneumatic pressure	6 kg/cm²
Machine height	2800 mm
Floor area	6550×3500 mm
Machine weight	8.7 T
