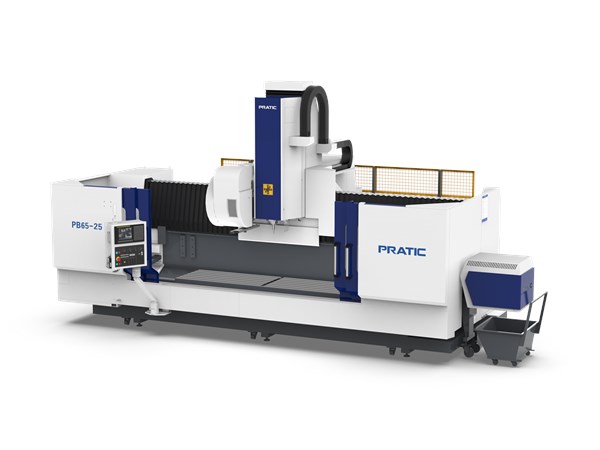

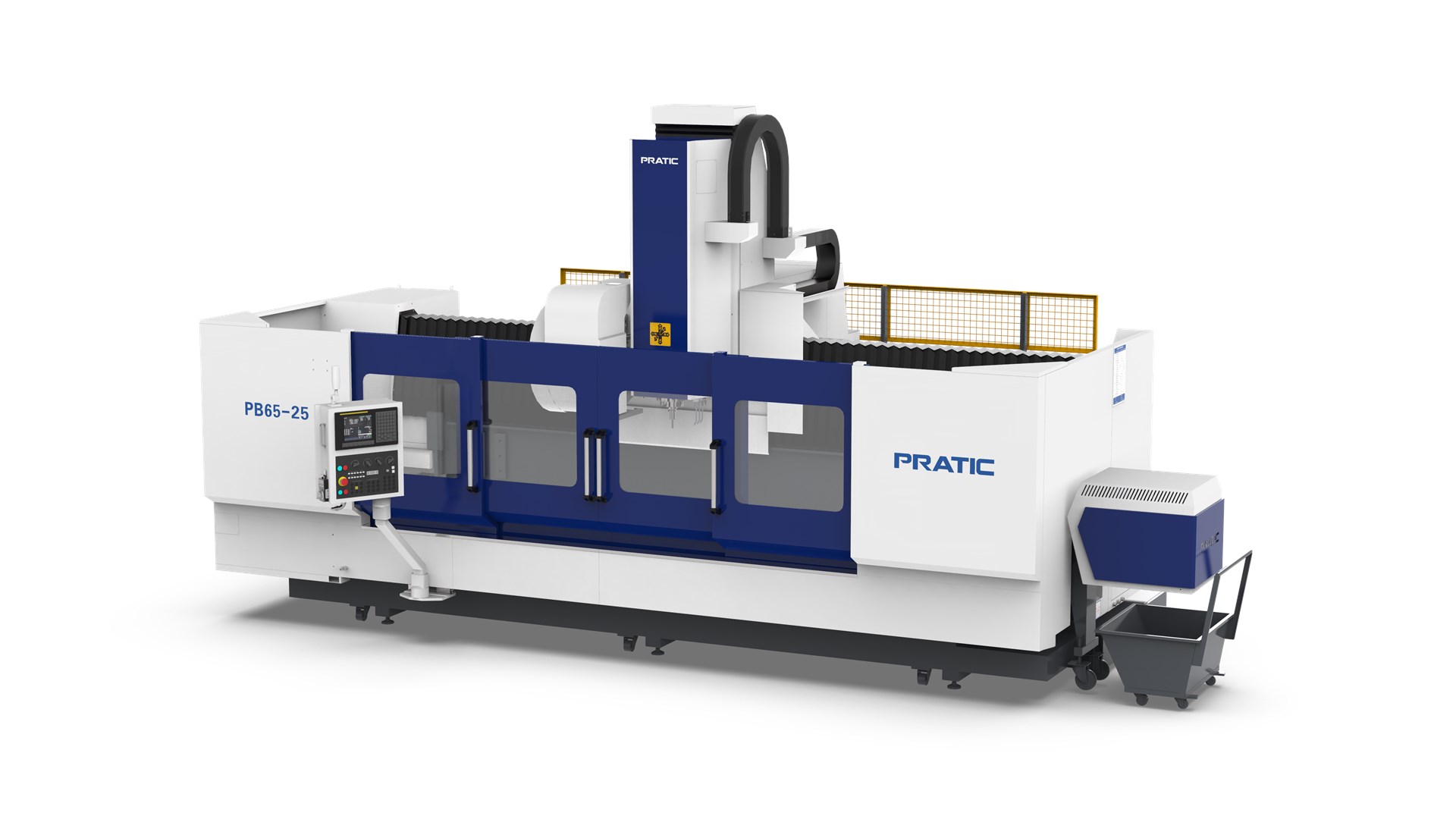

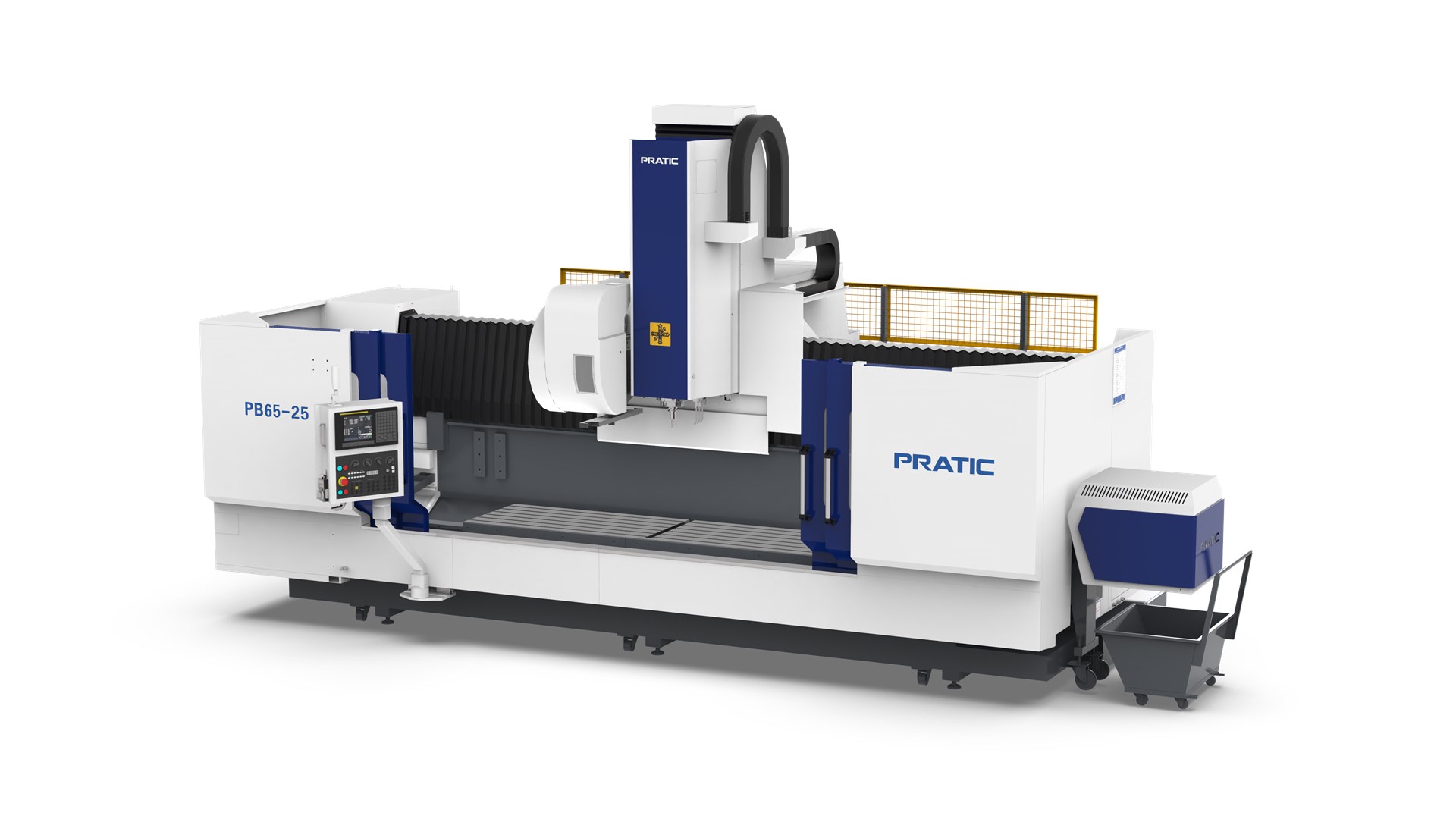

Pratic PB65 Profiles Machining Center

Homepage / Pratic PB65 Profiles Machining Center

X-Axis — 1800/2500/4500/6500 mm

Y-Axis — 650 mm

Z-Axis — 700 mm

Max Spindle Speed — 12000 rpm

Spindle Taper — BT40/SK40/CAT40

TRAVELS	PB65-18/25/45/65（casting）
X-Axis	1800/2500/4500/6500 mm
Y-Axis	650 mm
Z-Axis	700 mm
SPINDLE
Spindle speed	12000 rpm
Spindle taper	BT40/SK40/CAT40
TOOL MAGAZINE
Type	Disc type
Max.pockets of tool magazine	24 pcs
Max.tool diameter(full adjacent pockets) length/weight	φ75mm/300mm/8 kg
Tool change time (tool to tool)	2 sec
AXIS FEED RATES
Rapid on X	50 m/min
Rapid on Y/Z	36/36 m/min
X/Y/Z Cutting feed rate	15000 mm/min
CNC SYSTEM	FANUC	SIEMENS
MOTOR POWER
Spindle power	11/18.5 kW	11/23.2 kW
X/Y/Z-Axis Drive motor	3.0/3.0/3.0 kW	5.5/3.5/5.5 kW
LUBRICATION AND COOLING SYSTEM
Lubrication system	Automatic
Coolant system	Water cooling
ACCURACY
X-Axis Positioning accuracy	0.02 mm
Y/Z-Axis Positioning accuracy	0.015 mm
X/Y/Z-Axis Repeatability accuracy	0.01 mm
MECHANICAL SPECIFICATION
Required pneumatic pressure	6 kg/cm²
Machine height	3800 mm
Floor area	4100/4900/6900/9000×3550 mm
Machine weight	6/8/10/12 t
