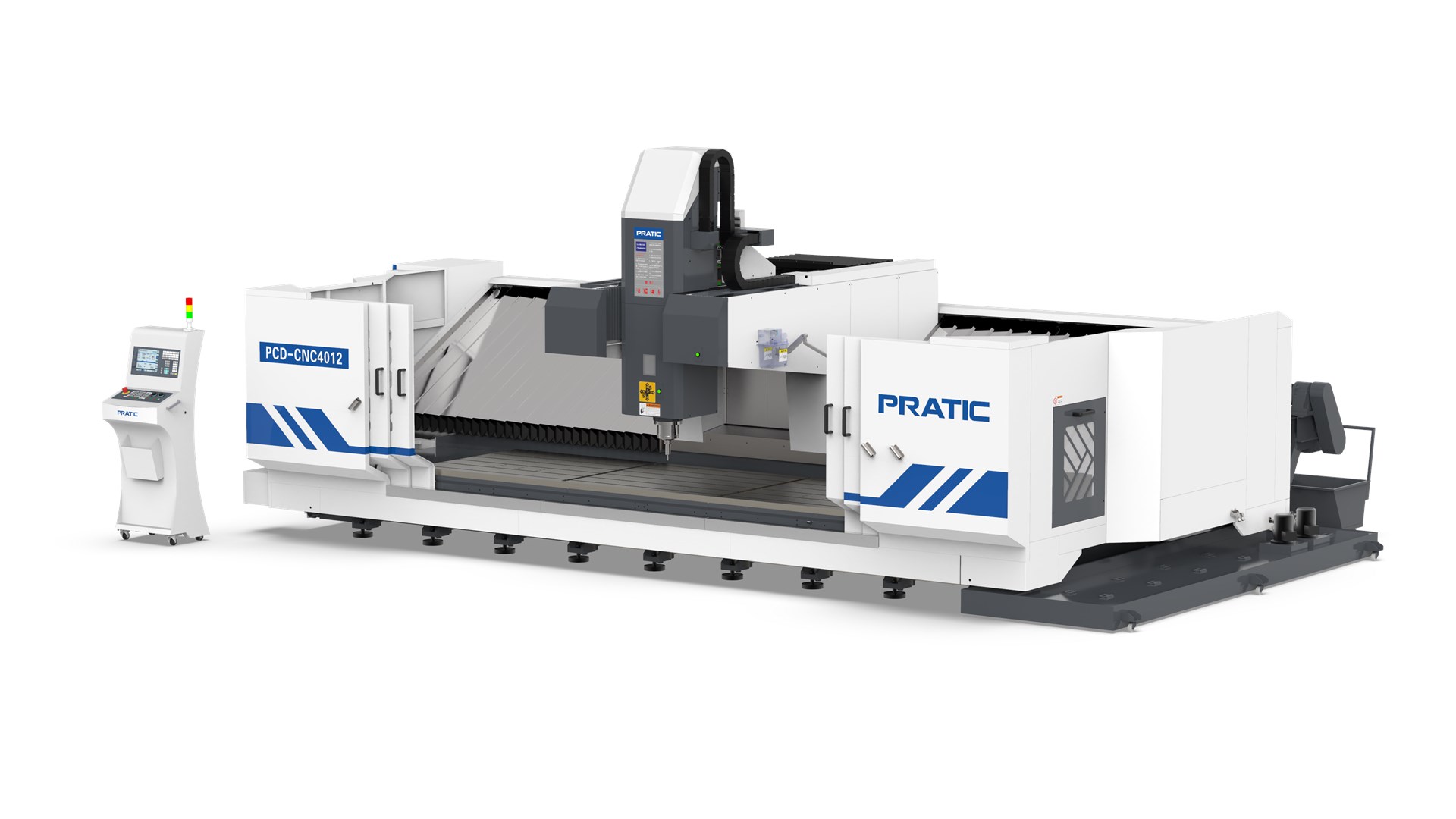

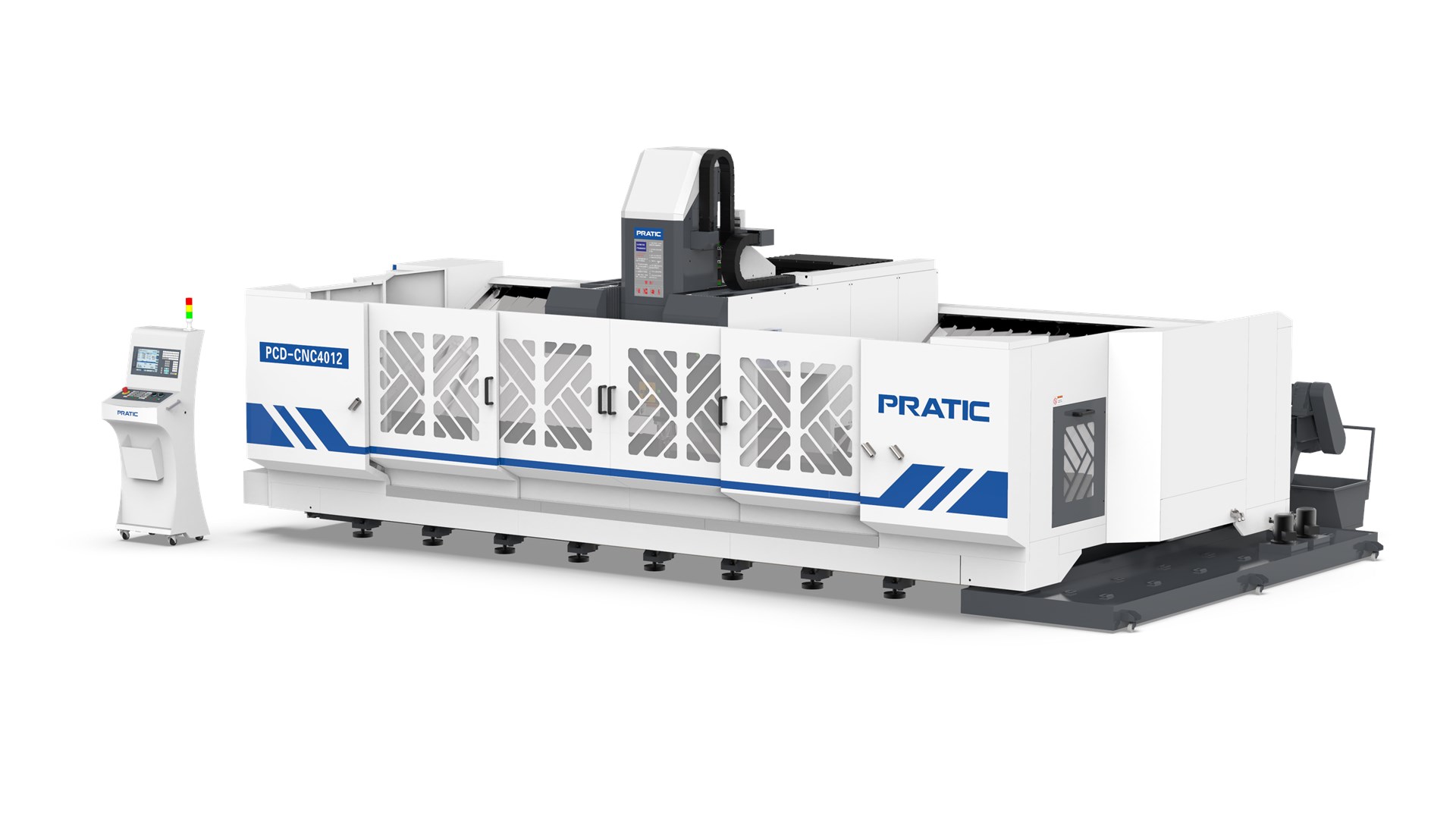

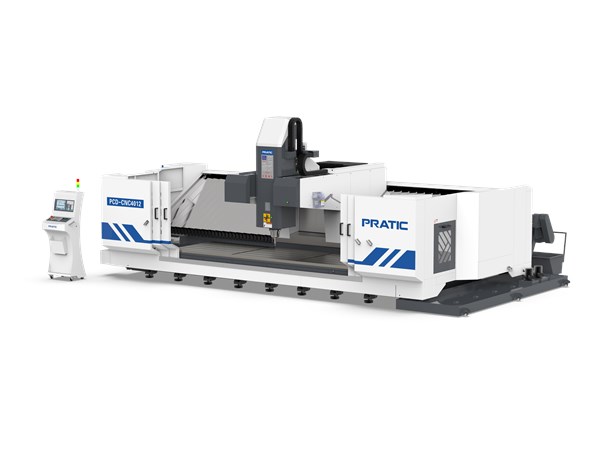

Pratic PCD 3 Axis Long Travel Moving Column Machining Center

Homepage / Pratic PCD 3 Axis Long Travel Moving Column Machining Center

X-Axis — 4000 / 6000 mm

Y-Axis — 800 / 1200 mm

Z-Axis — 600 mm

Max Spindle Speed — 8000 rpm

Spindle Taper — BT/SK/CAT50

BT/SK/CAT50 Spindle
	Items	Unit	PCD-CNC4008B	PCD-CNC4012B	PCD-CNC6008B	PCD-CNC6012B
Travel	X-axis	mm	4000		6000
	Y-axis	mm	800	1200	800	1200
	Z-axis	mm	600
	Distance from spindle nose to table surface	mm	130-730
Worktable	Size (Length*Width)	mm	4150×800	4000×1200	6500×800	6000×1200
	Max. load	kg/m2	1500	1500	1500	1500
	T-slot (Number/Width/Center distance)	mm	5/18/150	6/18/200	5/18/150	6/18/200
Spindle	Type	/	Mechanical
	Rated power	kW	15/17
	Max. speed	rpm	8000
	Taper	/	BT/SK/CAT50
Feedrates	Rapid on X/Y/Z	m/min	40/30/20
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Umbrella type
	Capacity	pcs.	16
	Tool-to-tool time	sec	6
Dimension	Machine Height	mm	3700	3600	3700	3600
	Covering Area	mm	9000*3150	9300*3500	11000*3150	11300*3500
	Machine Weight	kg	19000	21000	22000	24000
BT/SK/CAT40 Spindle
	Items	Unit	PCD-CNC4008	PCD-CNC4012	PCD-CNC6008	PCD-CNC6012
Travel	X-axis	mm	4000		6000
	Y-axis	mm	800	1200	800	1200
	Z-axis	mm	600
	Distance from spindle nose to table surface	mm	130-730
Worktable	Size (Length*Width)	mm	4510×800	4000×1200	6500×800	6000×1200
	Max. load	kg/m2	1500	1500	1500	1500
	T-slot (Number/Width/Center distance)	mm	5/18/150	6/18/200	5/18/150	6/18/200
Spindle	Type	/	Mechanical
	Rated power	kW	11/13
	Max. speed	rpm	10000
	Taper	/	BT/SK/CAT40
Feedrates	Rapid on X/Y/Z	m/min	40/30/20
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Umbrella type
	Capacity	pcs.	20
	Tool-to-tool time	sec	6
Dimension	Machine Height	mm	3700	3600	3700	3600
	Covering Area	mm	9300*3150	9300*3500	11400*3150	11300*3500
	Machine Weight	kg	19000	21000	22000	24000
