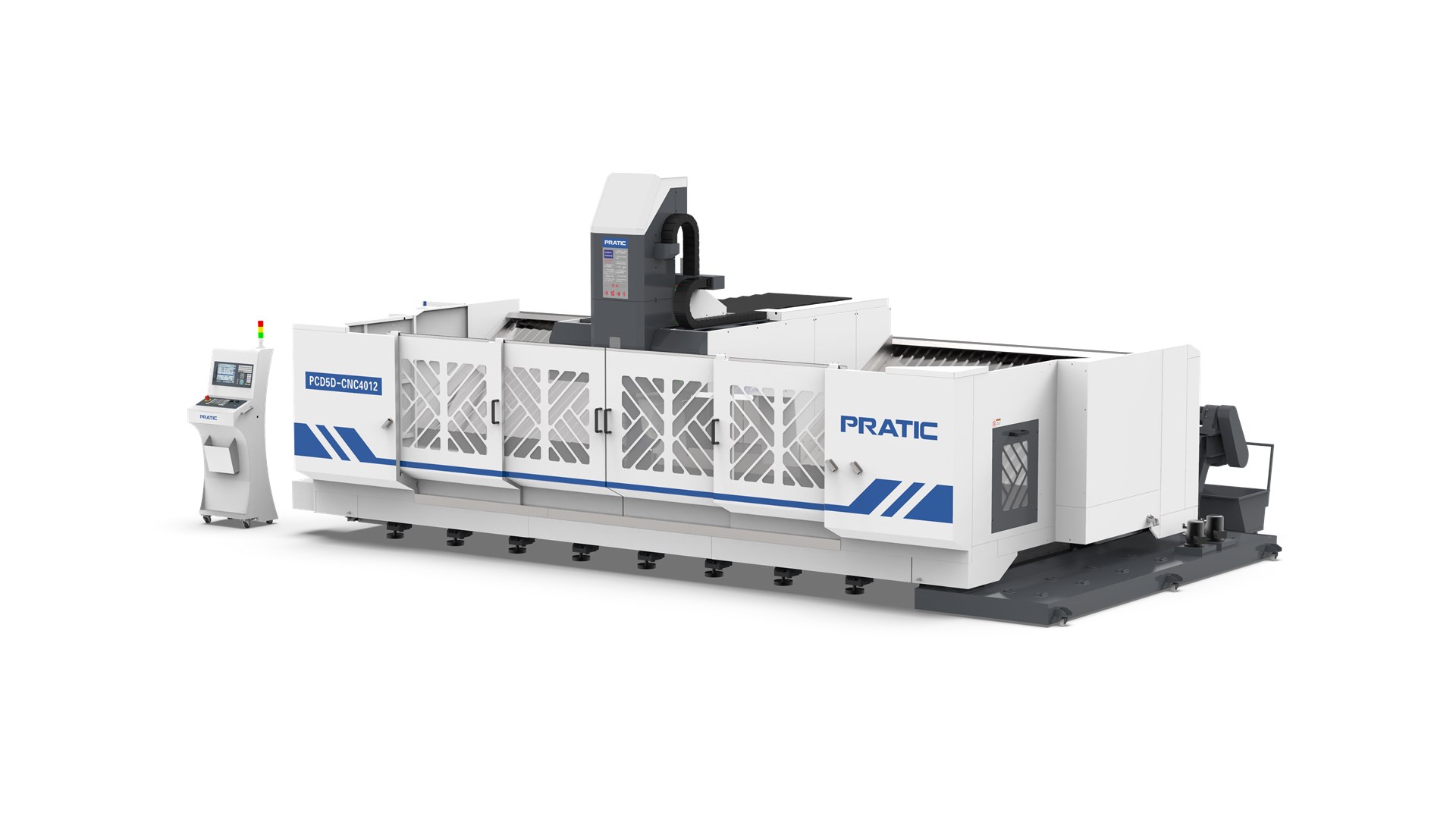

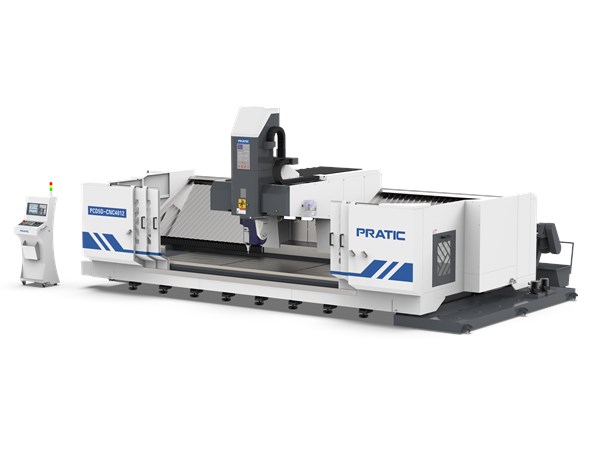

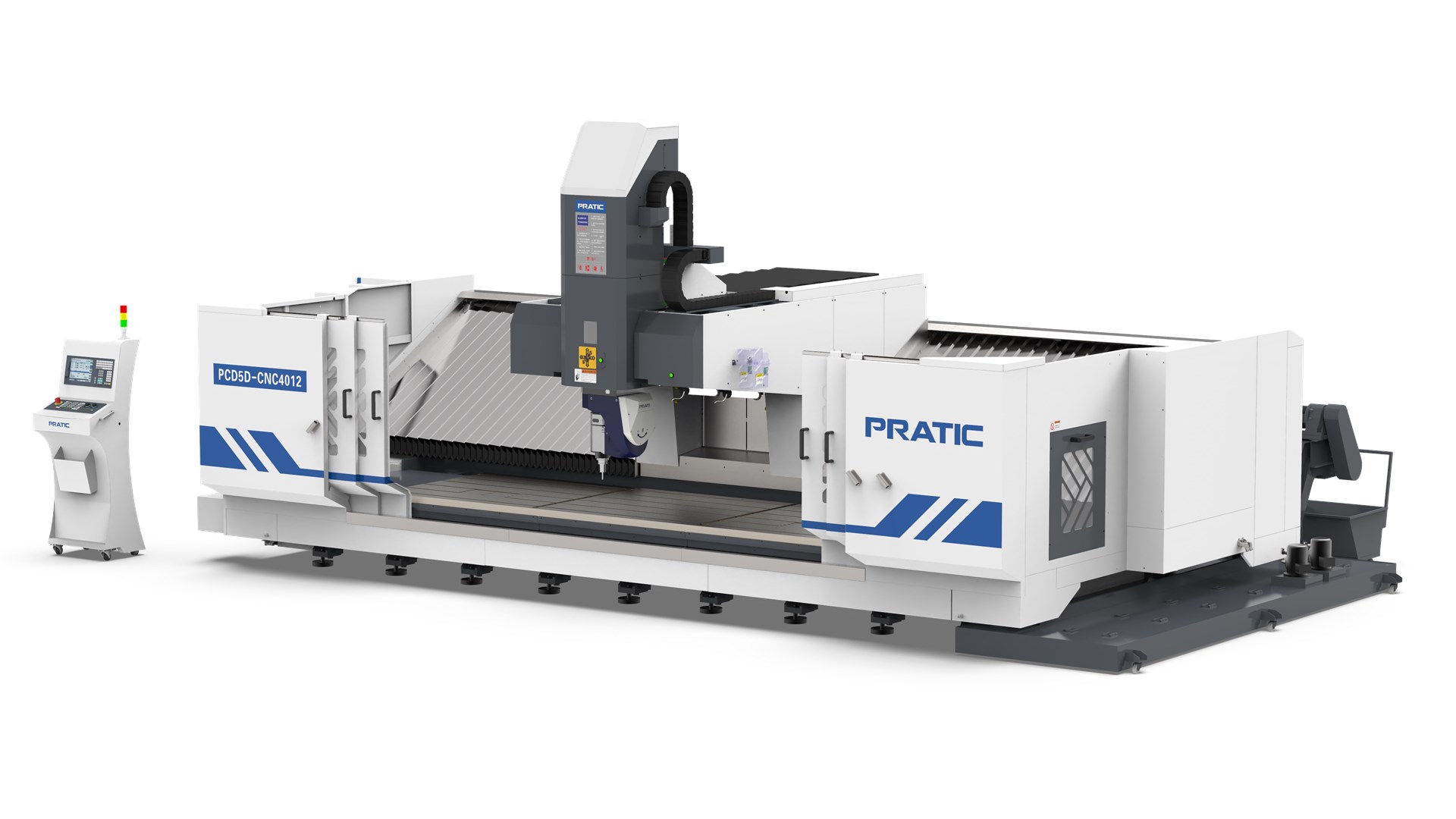

Pratic PCD5D 5 Axis Long Travel Moving Column Machine Center

Homepage / Pratic PCD5D 5 Axis Long Travel Moving Column Machine Center

X-Axis — 4000 / 6000 mm

Y-Axis — 1200 (3-axis) / 700 (4-axis)

Z-Axis — 500 mm

B-Axis — ±185°

C-Axis — ±320°

Max Spindle Speed — 24000 rpm

Spindle Taper — HSK-A63

	Items	Unit	PCD5D-CNC4012	PCD5D-CNC6012
Travel	X-axis	mm	4000	6000
	Y-axis	mm	1200 (3-axis)/700 (4-axis)
	Z-axis	mm	500
	B-axis	/	±185°
	C-axis	/	±320°
Worktable	Size (Length*Width)	mm	4000×1200	6000×1200
	Max.load	kg/m2	3800
	T-slot (Number/Width/Center distance)	mm	6/18/200
Spindle	Type	/	Motorized
	Power(S1/S6)	kW	15/18
	Max. speed	rpm	24000
	Taper	/	HSK-A63
Feed rates	Rapid on X/Y/Z	m/min	40/30/20
Feed rates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Bamboo hat type
	Capacity	pcs.	20
	Tool-to-tool time	sec	6
Dimension	Machine Height	mm	3600
	Covering Area	mm	9300*3500	11300*3500
	Machine Weight	kg	22000	24000
