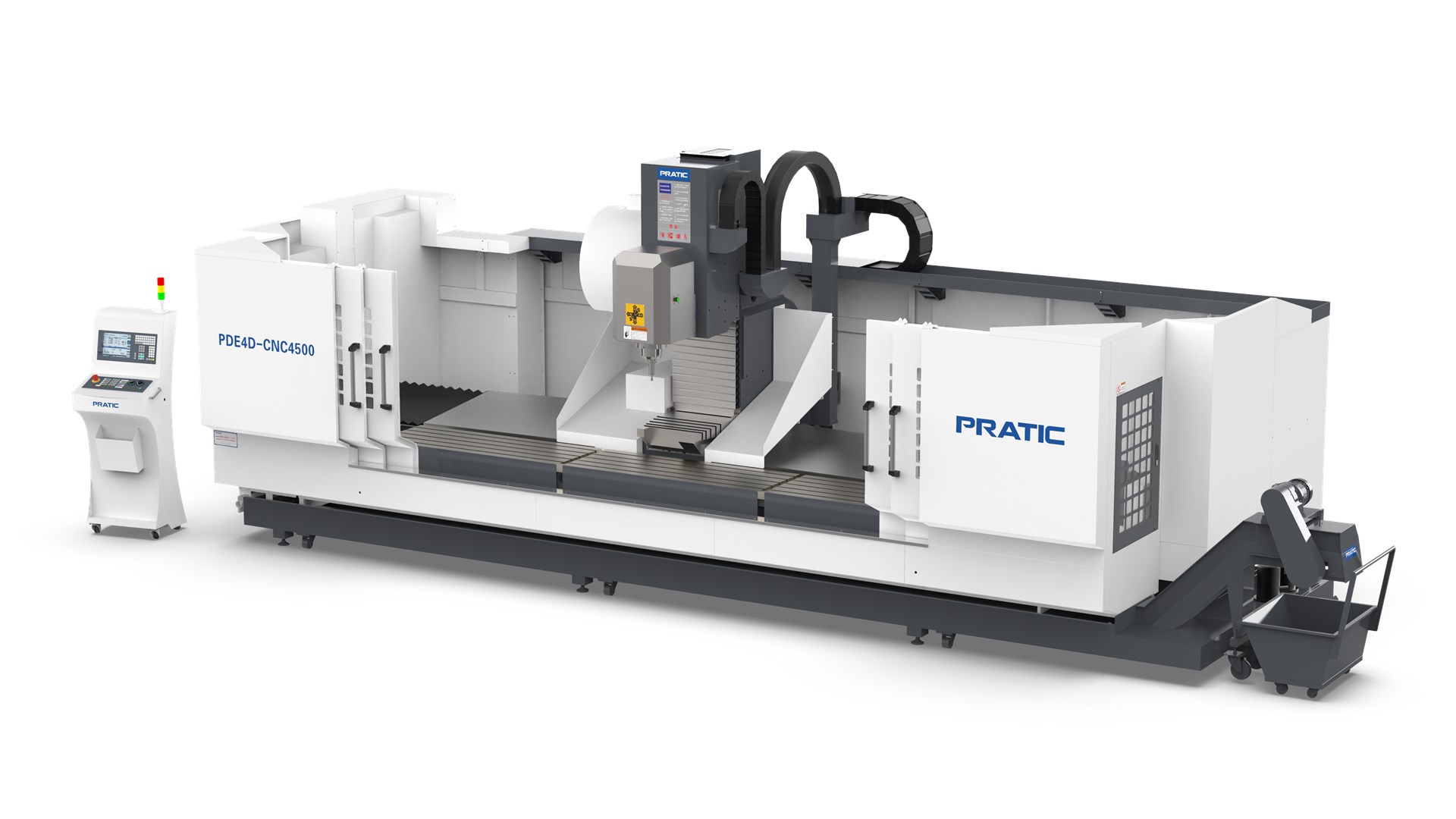

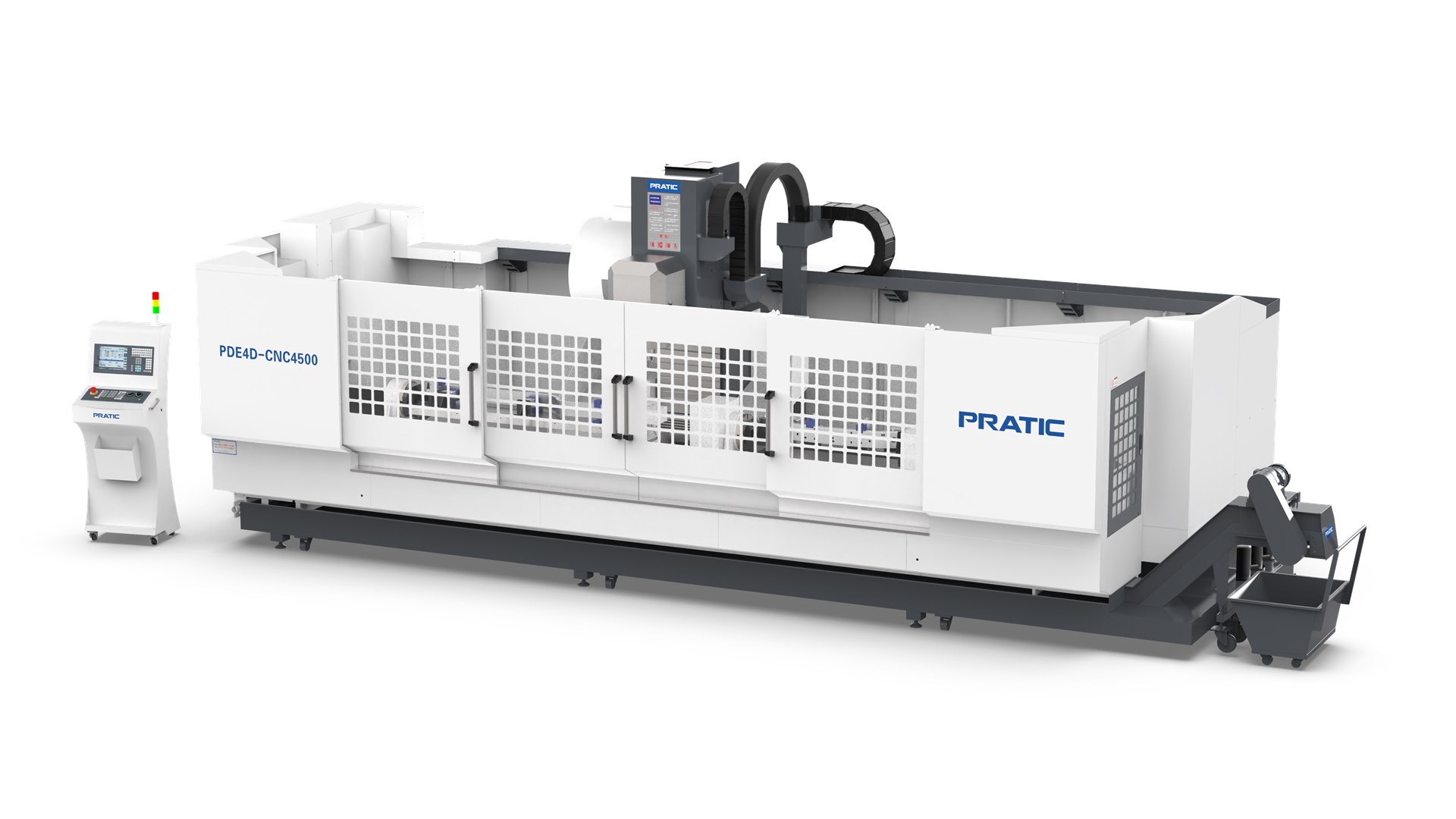

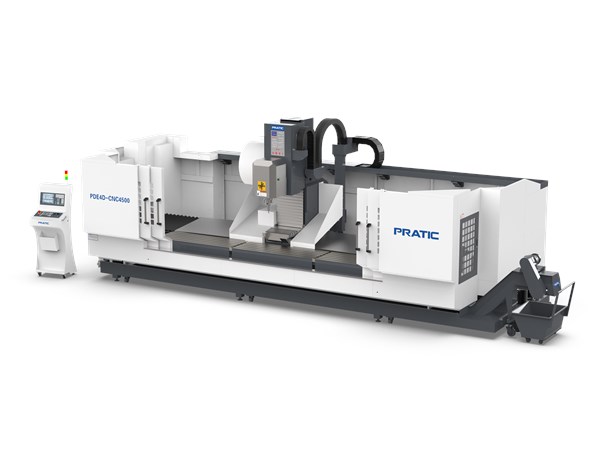

Pratic PDE4D Profile Machining Center

Homepage / Pratic PDE4D Profile Machining Center

X-Axis — 2500 / 4500 / 6500 mm

Y-Axis — 500 mm

Z-Axis — 700 mm

B-Axis — ±90°

Max Spindle Speed — 18000 rpm

Spindle Taper — BBT/SK/CAT40

	Items	Unit	PDE4D-CNC2500	PDE4D-CNC4500	PDE4D-CNC6500
Travel	X-axis	mm	2500	4500	6500
	Y-axis	mm	500
	Z-axis	mm	700
	B-axis	/	±90°
	Distance from spindle nose to table surface	mm	130-830
Worktable	Size (length*width)	mm	2500×550	4500×550	6500×550
	Max. load	kg/m2	1000
	T-slot (Number/width/center distance)	mm	5/18/100
Spindle	Type	/	Motorized
	Rated power	kW	15/16
	Max. speed	rpm	18000
	Taper	/	BBT/SK/CAT40
Feedrates	Rapid on X/Y/Z	m/min	60/28/28
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Disc type
	Capacity	pcs.	24
	Tool-to-tool time	sec	2
Dimension	Machine Height	mm	3200
	Covering Area	mm	6700*2850	8710*2850	10700*2850
	Machine Weight	kg	10500	12500	14700
